1977 Kawasaki Special Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

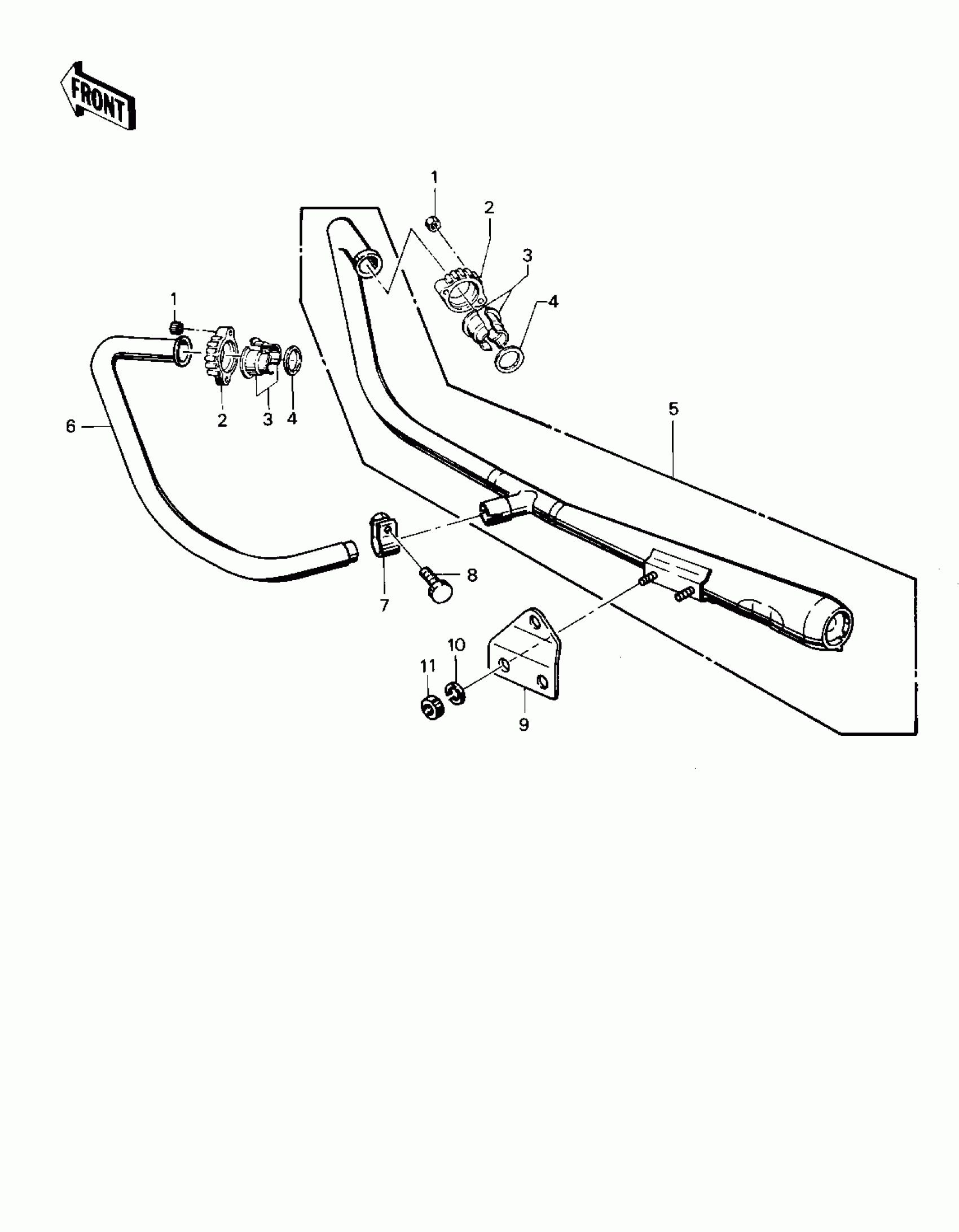

1977 Kawasaki Special Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

97017-014

1
Out of stock

2

HOLDER,EX PIPE,BARREL

18069-056-2H

1
Out of stock

3

COLLAR,EXHAUST PIPE

92027-224

1
Out of stock

4

GASKET,EXHAUST PIPE

11060-1242

1
Out of stock

5

MUFFLER ASSY

18001-221

1
Out of stock

5

MUFFLER ASSY

18001-221

1
Out of stock

6

PIPE,EXHAUST

18049-115

1
Out of stock

7

CLAMP,EXH PIPE CONNCT

92037-180

1
Out of stock

8

BOLT,8X25

113B0825

1
Out of stock

9

BRACKET,MUFFLER

18024-031

1
Out of stock

10

WASHER SPRING 8MM

461F0800

1
Out of stock

10

WASHER SPRING 6MM

461F0600

1
Out of stock

11

NUT 8MM

314B0800

1
Out of stock
