1977 Kawasaki Special Crankcase Diagram

← All diagrams

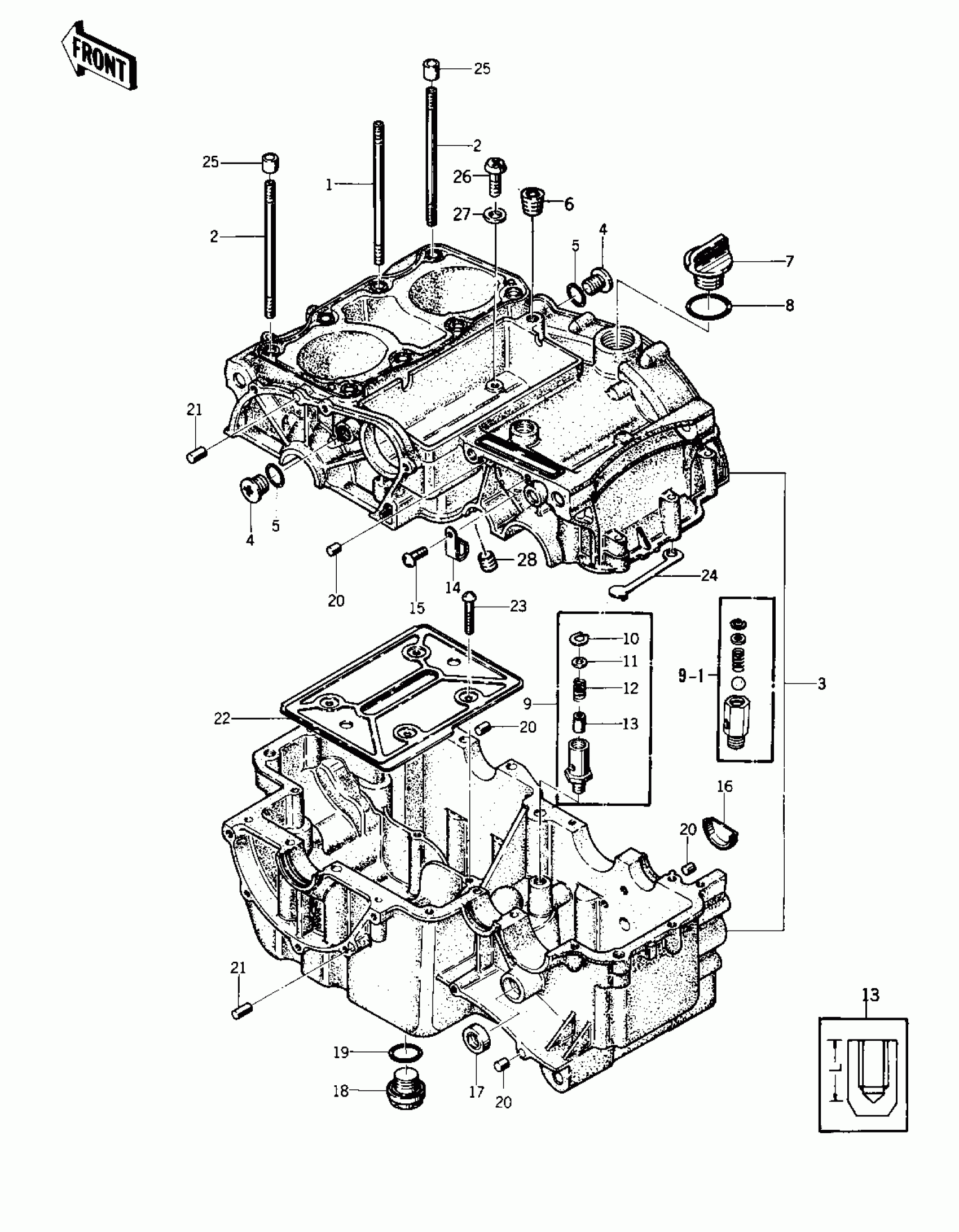

Find the part on the Crankcase diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki Special Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.STUD,8X201

92004-052

1
Out of stock

2

.STUD,8X210

92004-053

1
Out of stock

3

CRANKCASE SET

14001-102

1
Out of stock

3

CRANKCASE SET

14001-102

1
Out of stock

4

.PLUG

92066-067

1
Out of stock

4

.PLUG

92066-067

1
Out of stock

5

RING-O,13.5MM

92055-073

1
Out of stock

6

PLUG,OIL LINE,1/8X7

92066-059

1
Out of stock

7

CAP-OIL FILLER

16115-013

1
Out of stock

8

RING-O,31.5X2.6

92055-049

1
Out of stock

9

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

9-1

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

10

CIRCLIP, 12MM

481J1200

1
Out of stock

11

SPACER,RELEAF VALVE

92026-097

1
Out of stock

12

SPRING,RELEAF VALVE

16133-003

1
Out of stock

13

PISTON,RELEAF VALVE

16126-002

1
Out of stock

14

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

14

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

15

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

16

RECEIVER,OIL

14015-005

1
Out of stock

17

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

18

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

19

GASKET,12X22X2

92065-097

1
Out of stock

20

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

21

PIN-DOWEL,6X12

551A0612

1
Out of stock

22

PLATE

14082-001

1

$7.19

In stock

23

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

24

CLAMP,OVERFLOW HOSE

92037-149

1
Out of stock

25

PIN,DOWEL,10X14

92043-1037

1
Out of stock

26

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

27

WASHER,6.2X11X1

92022-304

1
Out of stock

28

NOZZLE,BLACK

92062-011

1
Out of stock
