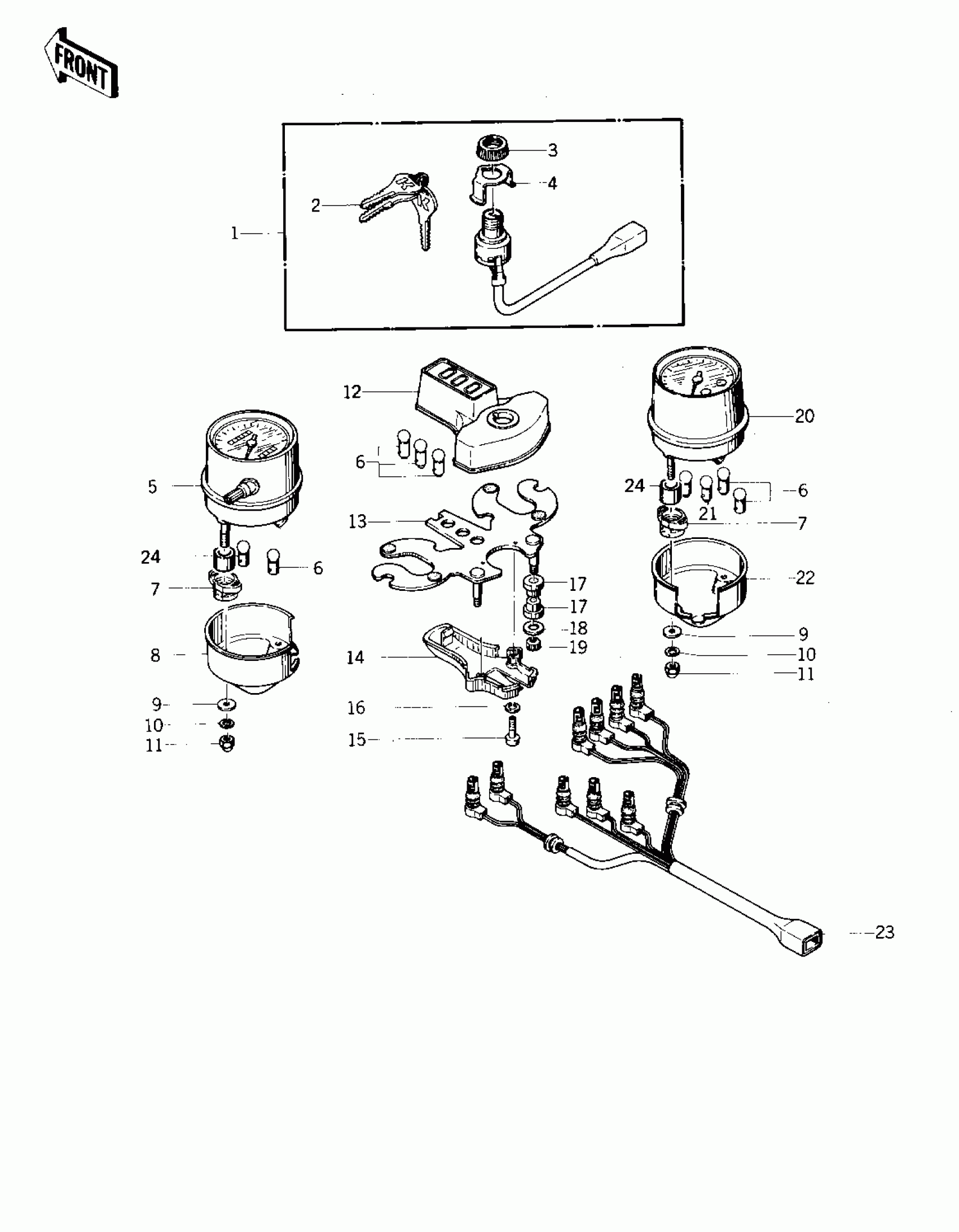

Kawasaki Special METERS/IGNITION SWITCH ('75 S) Diagram
#
Description
Price
1
SWITCH ASSY IGNITION
27005-075
Unavailable
2
KEY SET, #771
27008-064-71
$30.54
2
KEY SET, #772
27008-064-72
Unavailable
2
KEY SET,#773
27008-064-73
Unavailable
2
KEY SET,#774
27008-064-74
$27.59
2
KEY SET, #775
27008-064-75
Unavailable
2
KEY SET, #776
27008-064-76
Unavailable
2
KEY SET, #777
27008-064-77
Unavailable
2
KEY SET, #778
27008-064-78
$13.33
2
KEY SET, #779
27008-064-79
Unavailable
2
KEY SET, #780
27008-064-80
Unavailable
2
KEY,BLANK
27008-1013
Unavailable
3
NUT,IGNITION SW LOCK
27007-004
Unavailable
4
HOLDER,IGNITION SW
27019-004
$10.89
5
SPEEDOMETER ASSY,MPH
25005-126
$361.75
5
SPEEDO ASSY,KPH (Canada)
25005-127
$279.59
6
BULB 12V 3W
92069-018
$4.87
7
DAMPER RUBBER
92075-268
$4.03
8
COVER SPEEDOMETER
25012-020
$57.99
9
WASHER-PLAIN,5MM
411B0500
$0.46
10
WASHER SPRING 5MM
461F0500
$0.69
11
NUT-CAP,5MM
322N0500
$2.85
12
COVER INDICATOR LIGHT
25023-013
$62.09
13
BRACKET METER
25008-037
$52.51
14
COVER METER BRACKET
25024-005
$9.49
15
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
1
WASHER SPRING 4MM
461F0400
Unavailable
17
DAMPER RUBBER
92075-257
$5.03
18
WASHER,PLAIN,6MM
92022-284
Unavailable
19
NUT 6MM
311B0600
$0.93
20
TACHOMETER ASSY
25016-027
$292.37
21
BULB 12V 1.5W
92069-017
$4.92
22
COVER TACHOMETER
25012-019
$37.22
23
SOCKET SPEEDO&TACHO
25011-047
$63.43
24
COLLAR
92027-244
$3.80
