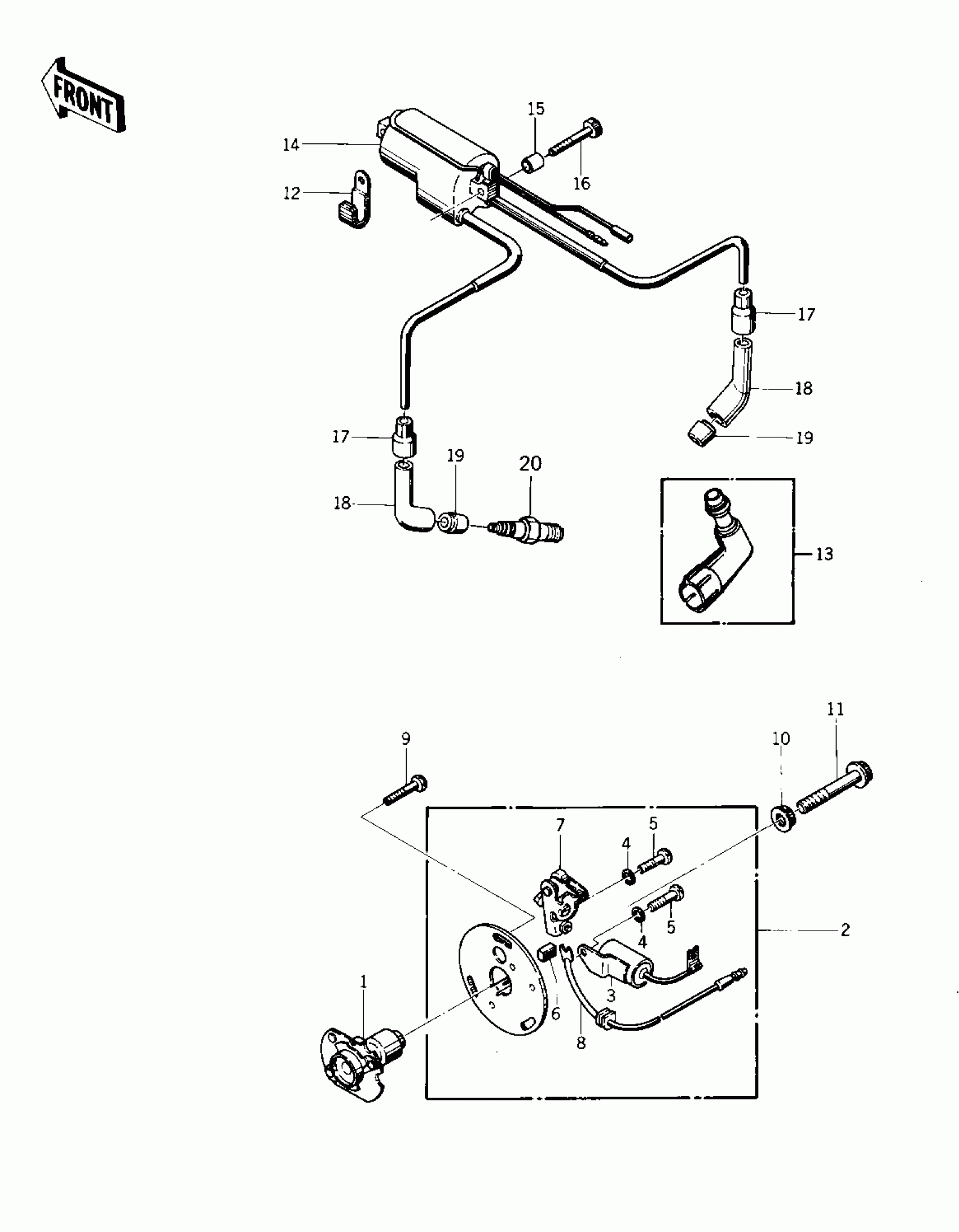

Kawasaki Special IGNITION ('76-'77 S2/S3) Diagram
#
Description
Price
1
ADVANCER ASSY TIMING
21148-006
$191.01
1
ADVANCER,AUTOMATIC TI
21148-014
$162.30
2
BREAKER ASSY CONTACT
21135-009
$57.31
3
CONDENSER
21013-034
Unavailable
3
CONDENSER
21013-034
Unavailable
4
WASHER SPRING 4MM
461F0400
Unavailable
5
SCREW PAN HEAD 4X6
220B0406
$1.67
6
BRUSH,OIL
21019-005
$5.39
7
BREAKER,CONTACT
21008-025
$82.81
7
BREAKER,CONTACT
21008-025
Unavailable
8
WIRING HARNESS BRKR
21029-029
$33.22
9
SCREW-PAN-CROS
220B0512
$0.47
10
WASHER,BREAKER GOVERNOR
92022-244
$14.09
11
BOLT,8X63
92001-1397
$5.43
11
BOLT,8X63
92001-1397
Unavailable
12
CLAMP,WIRING HARNESS
21126-008
$4.73
12
CLAMP,WIRING HARNESS
21126-008
$4.73
13
CAP-ASSY-PLUG
21160-005
$51.69
14
COIL-IGNITION
21121-1174
$323.76
15
COLLAR,IGNITION COIL
92027-276
Unavailable
16
BOLT, IGNITION COIL
92003-170
Unavailable
17
GROMMET,HIGH TENSION
21132-005
$4.26
18
CAP-SPARK PLUG,RTFM20
21130-1007
Unavailable
19
GROMMET,PLUG CAP
21131-004
$10.97
20
SPARK PLUG B8ES
B8ES
$3.62
20
SPARK PLUG B8ES
B8ES
Unavailable
20
SPARK PLUG W24ES-U
W24ESU
Unavailable
