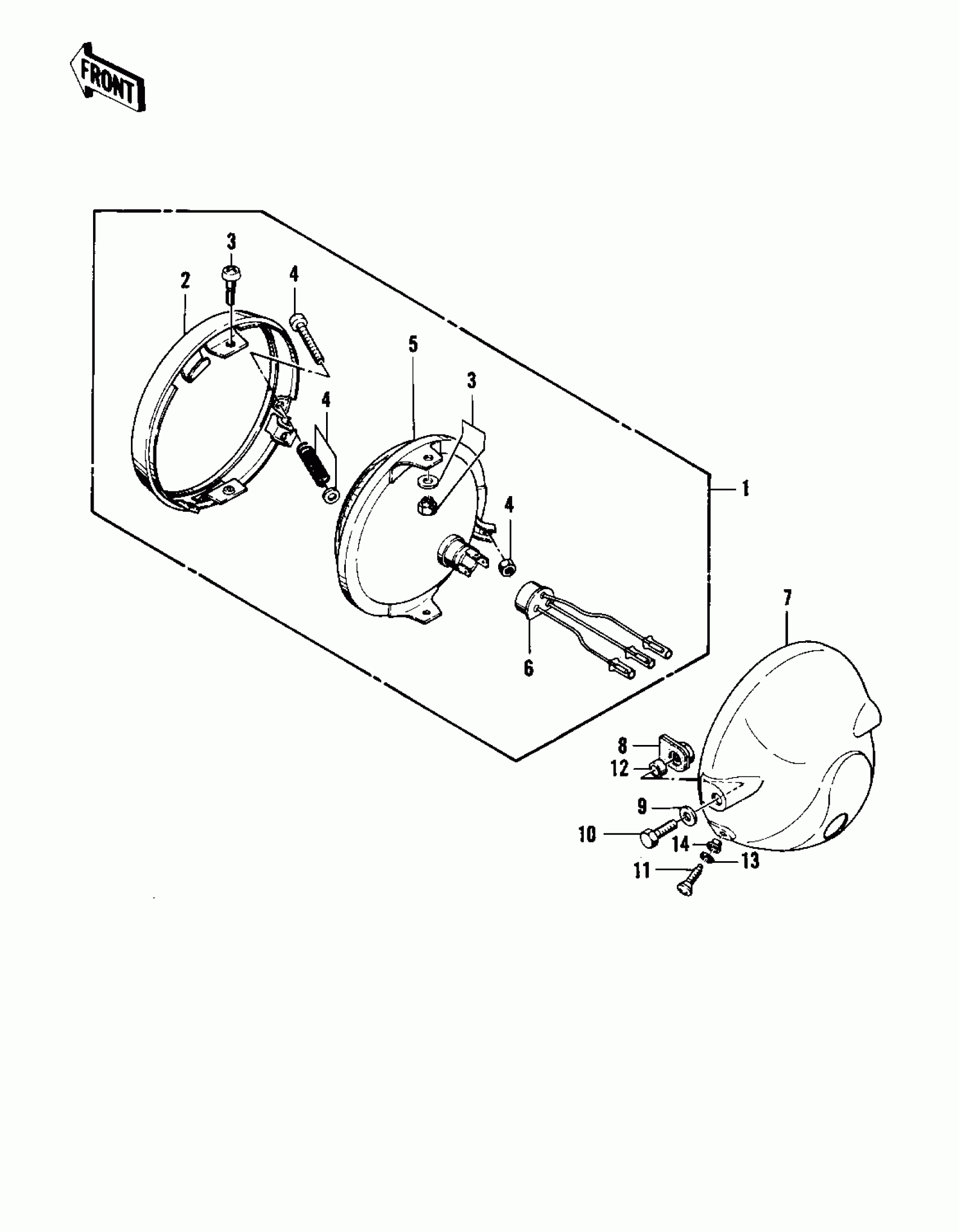

Kawasaki Special HEADLIGHT ('76-'77 S2/S3) Diagram

#

Description
Price

1

LIGHT UNIT HEAD

23003-022

Unavailable

2

RIM-LAMP

23006-044

$92.87

3

SCREW ASY LENS UNIT

23013-009

$12.53

4

SCREW ASY FOCUS ADJST

23013-008

Unavailable

5

LENS-COMP,"001-1269" MARK

23007-059

$99.38

6

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

7

BODY,HEAD LIGHT

23005-053

$92.96

8

NUT,10MM

23020-021

Unavailable

9

WASHER-PLAIN,10MM

411B1000

$0.93

10

BOLT,HEX HEAD,10X25

92007-045

$10.62

11

SCREW,5MM

92011-024

$2.58

12

COLLAR,10.2X13.4X8.1

92027-231

Unavailable

13

WASHER SPRING 5MM

461F0500

$0.69

14

WASHER

23021-010

$4.31
