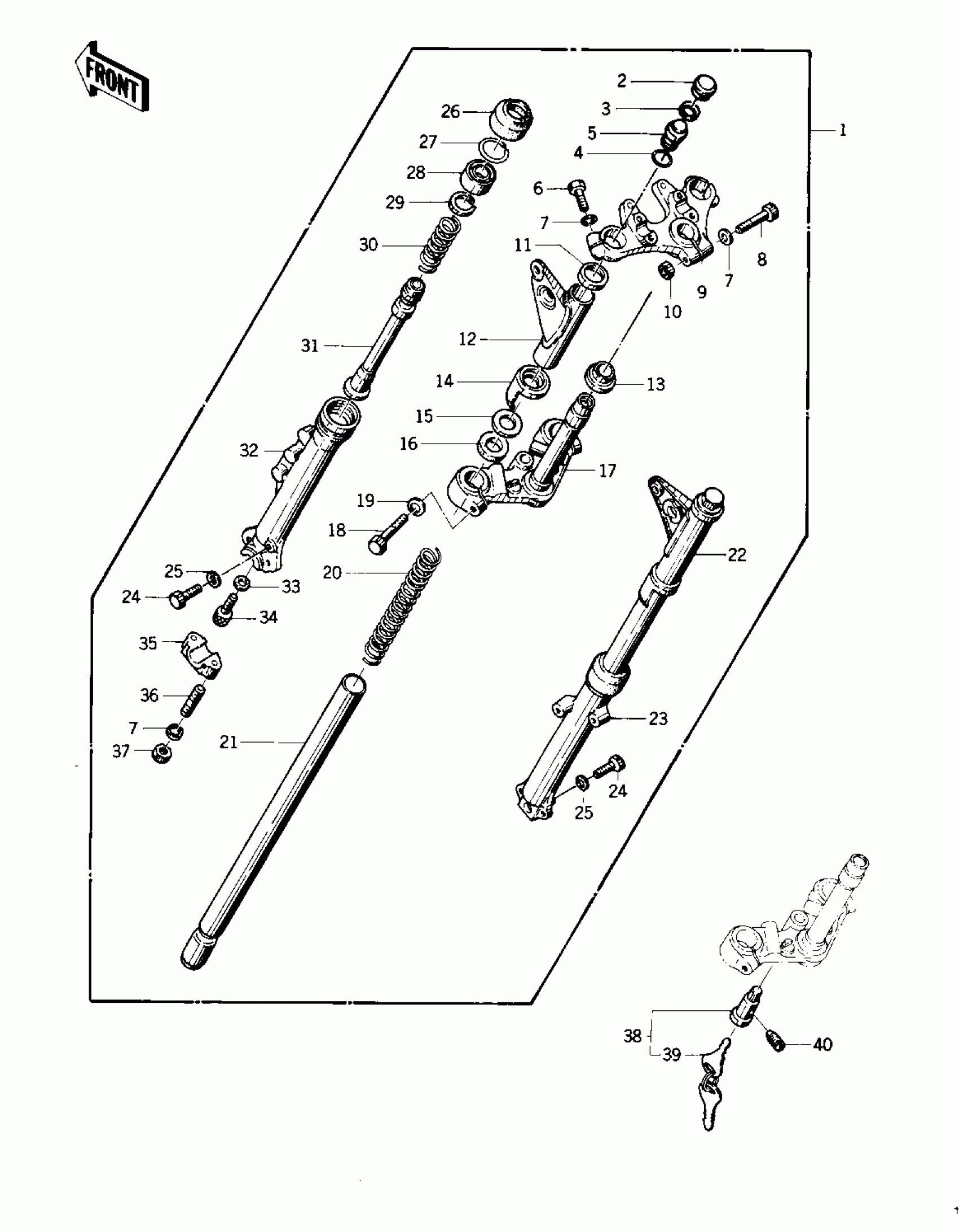

Kawasaki Special FRONT FORK ('76-'77 S2/S3) Diagram

#

Description
Price

1

FORK-FRONT

44001-193

$920.85

2

CAP

44062-007

$3.46

3

RING-SNAP

44044-023

$5.46

4

RING-O

44046-025

$6.57

5

SEAT-FORK SPRING

44029-022

$11.61

6

BOLT-HEX HEAD.8M/M

44041-045

$25.59

7

WASHER SPRING 8MM

461F0800

$0.40

8

BOLT-HEX HEAD,8X55

44041-038

Unavailable

9

HEAD, STEERING STEM

44039-064

$180.35

10

NUT,LOCK,8MM

92015-1124

$5.42

11

CAP,FORK COVER

44064-026

$7.60

12

COVER,L.H FORK

44033-080

$77.53

13

RACE,STEERING STEM BEARING

92047-006

$12.67

14

GUIDE,FORK COVER

44064-027

$21.70

15

WASHER,FORK COVER

92022-297

$8.42

16

DAMPER RUBBER,FK COV

92075-240

Unavailable

17

STEM, STEERING

44037-077

$493.74

18

BOLT, HEX HEAD,10X30

44041-079

$12.37

19

WASHER SPRING 10MM

461F1000

$0.67

20

SPRING, FORK

44026-061

Unavailable

21

TUBE,FORK INNER

44013-055

$135.39

22

COVER,R.H FORK

44034-080

$116.89

23

TUBE,RH,FORK OUTER

44006-056

$159.08

24

BOLT HEX HEAD 6X8

110B0608

$0.18

25

GASKET,DRAIN PLUG

44045-047

$9.34

26

SEAL,FORK

92093-1063

$34.25

27

RING,OIL SEAL STOPPER

44043-057

$6.52

28

SEAL-OIL,FORK

92049-1077

$20.75

29

RING, PISTON

44025-003

$9.18

30

SPRING,FORK CYLINDER

44026-054

$5.14

31

CYLINDER-FORK

44022-035

$59.08

32

TUBE,LH,FORK OUTER

44005-058-1W

$148.79

33

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

34

BOLT,FORK CYLINDER

44041-078

$9.89

35

HOLDER,FORK COVER

44063-010-1W

$13.95

36

STUD 8X50

172G0850

Unavailable

37

NUT,CAP AND LOCK,8MM

92019-013

$14.88

38

LOCK ASSY,STEERING

27016-043

$35.97

40

SCREW,SEAT LOCK

92014-016

Unavailable

40

SCREW,SEAT LOCK

92014-016

Unavailable
