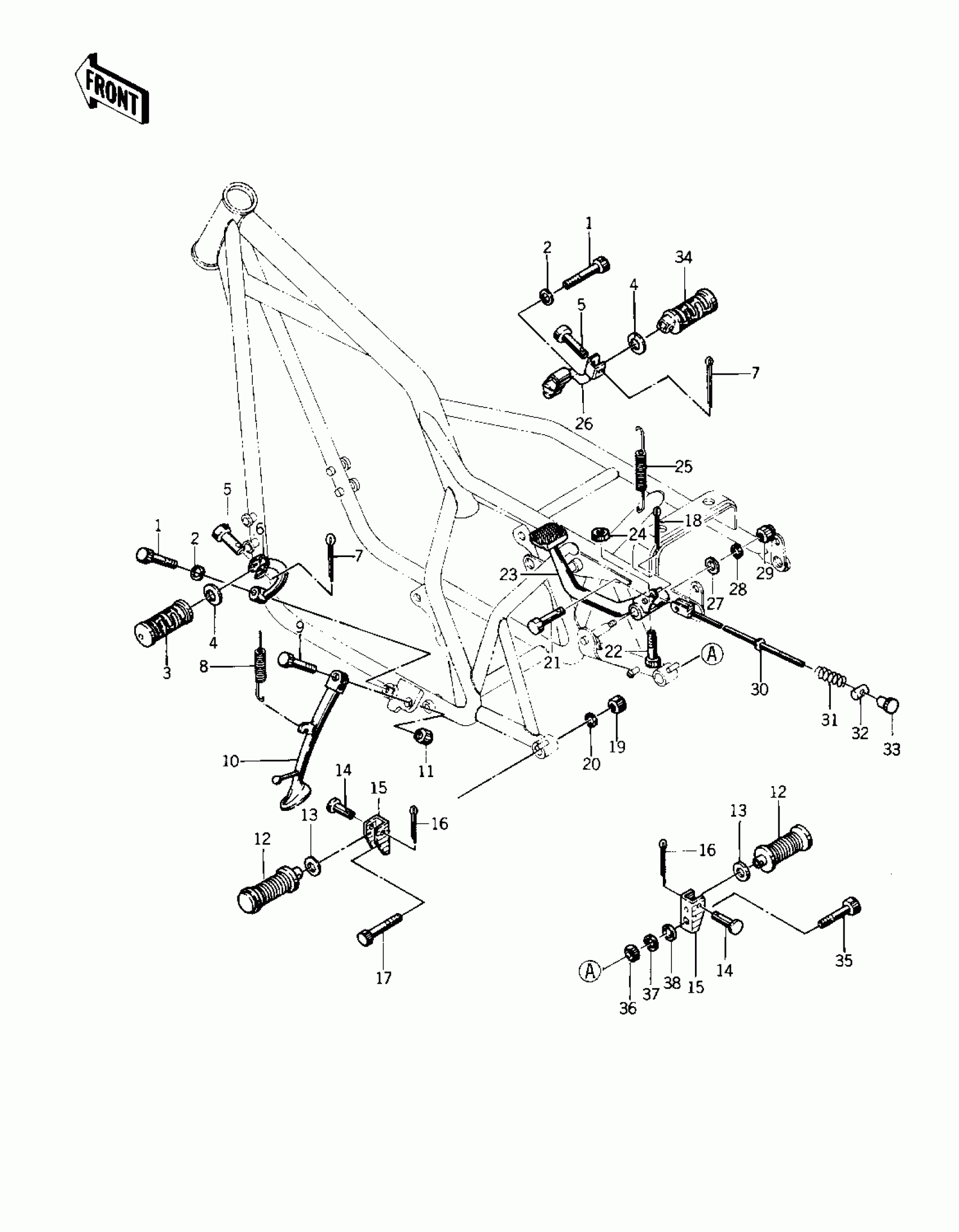

Kawasaki Special FOOTRESTS/STAND/BRAKE PEDAL ('76-'77 S2/ Diagram
#
Description
Price
1
BOLT-HEX HEAD,12X36
113B1236A
$5.16
2
WASHER-SPRING,12MM
461F1200
$0.96
3
BOLT-HEX HEAD,12X36
113B1236A
$5.16
4
WASHER,25X36X2.3
92022-250
$5.00
5
PIN,8X31
92043-080
$5.52
6
BRACKET,FOOTREST,L.H
34003-053
$112.13
7
PIN COTTER 2.5X16
550D2516
$2.79
8
SPRING,SIDE STAND
34025-007
Unavailable
9
BOLT,SIDE STAND
92003-157
$9.91
10
STAND-SIDE
34024-048
$31.80
11
NUT-HEX-FINE,10MM
315B1000
$0.58
12
RUBBER,FOOTREST
92076-027
$37.21
13
WASHER-PLAIN (OPT)
92022-199
Unavailable
14
PIN,6X28
92043-1464
$8.10
15
BRACKET,STEP
32054-1021
Unavailable
16
PIN-COTTER,2.0X12
550D2012
$1.11
17
BOLT-SMALL-FINE,10X45
113G1045
$3.98
18
PIN COTTER 2.5X16
550D2516
$2.79
19
NUT-HEX-FINE,10MM
314B1000
$0.67
20
WASHER SPRING 10MM
461F1000
$0.67
21
PIN,BRAKE ROD FITTING
92043-090
Unavailable
22
BOLT-UPSET
112G0625
$3.62
23
PEDAL,BRAKE
43001-064
$111.77
24
NUT 6MM
311B0600
$0.93
25
SPRING,BRAKE PEDAL
43005-029
$9.34
26
BRACKET,FOOTREST,R.H
34003-054
Unavailable
27
WASHER,8.5X20X1.6
92022-1561
$4.31
28
WASHER SPRING 8MM
461F0800
$0.40
29
NUT,CAP AND LOCK,8MM
92019-013
$14.88
30
ROD,BRAKE
43011-026
$18.69
31
SPRING,BRAKE ROD
43012-001
$4.65
32
PIN,BRAKE ROD
92043-065
$5.57
33
NUT,BRAKE ROD
92015-042
$6.22
33
NUT,BRAKE ROD
92015-042
$6.22
34
BAR-FOOTREST,R.H
34028-012
$29.20
35
BOLT,HEX HEAD,10X50
92001-1254
$4.38
36
NUT-HEX-FINE,10MM
314B1000
$0.67
37
WASHER SPRING 10MM
461F1000
$0.67
38
WASHER PLAIN 10MM
410B1000
$0.58
