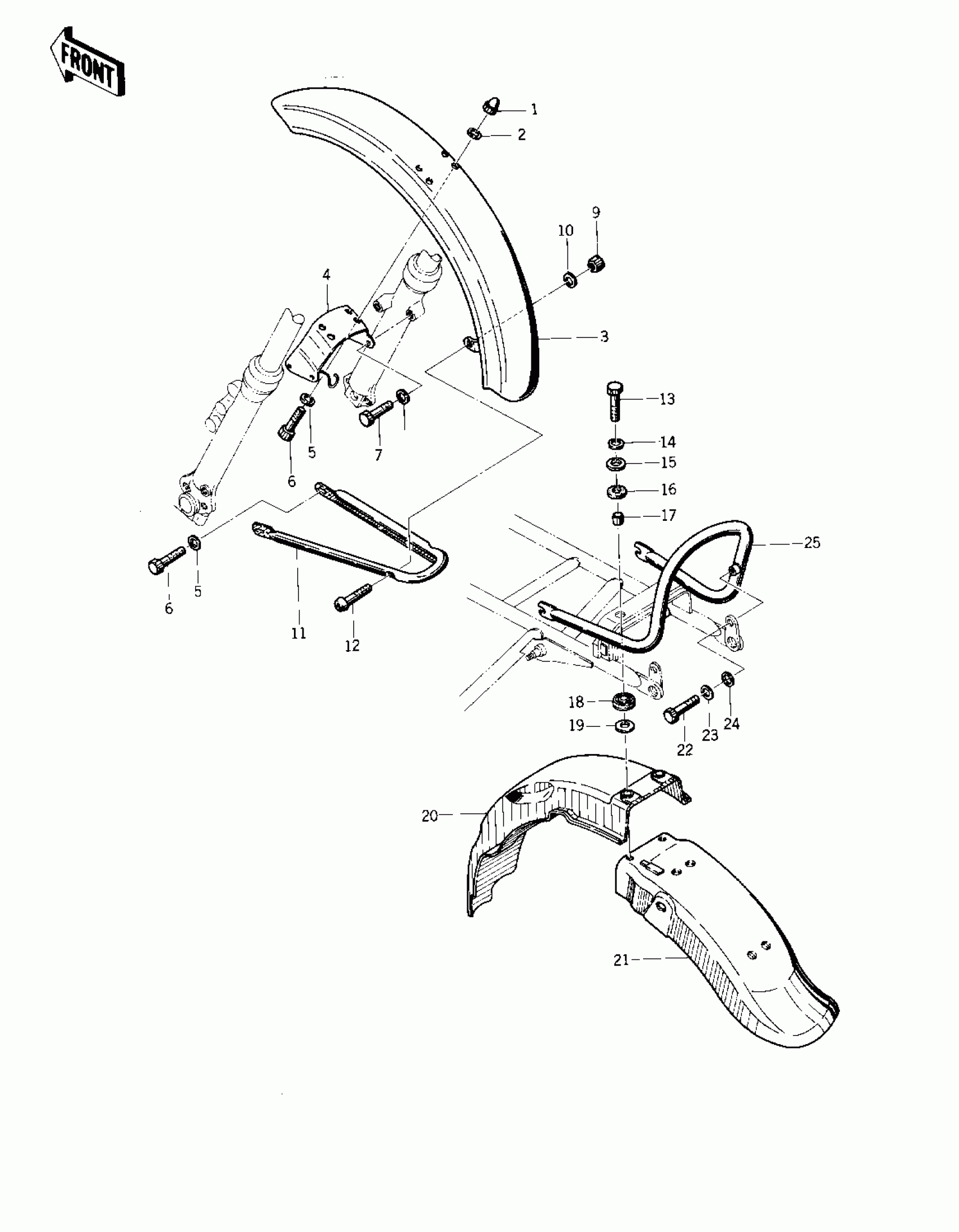

Kawasaki Special FENDERS ('75 S) Diagram
#
Description
Price
1
NUT,6MM
92015-009
Unavailable
2
WASHER PLAIN 6MM
411B0600
$2.84
3
FENDER-FR
35004-095
$201.74
4
BRACE,FRONT FENDER
35009-035
$29.14
5
WASHER SPRING 6MM
461F0600
$0.69
6
BOLT-UPSET,6X12
112G0612
$1.45
7
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
8
WASHER SPRING 8MM
461F0800
$0.40
9
NUT-HEX
311B0500
$0.47
10
WASHER SPRING 5MM
461F0500
$0.69
11
STAY,FRONT FENDER
35010-027
Unavailable
12
SCREW OVL CNTSNK 5X16
222E0516A
$2.80
12
SCREW-CSK-RD-CROS,5X20
222E0520A
$3.29
13
BOLT-HEX HEAD,6X32
110N0632
Unavailable
14
WASHER SPRING 6MM
461F0600
$0.69
15
WASHER,7X24X1.6
92022-228
$3.92
16
DAMPER,FENDER
92075-121
$4.56
17
COLLAR,6.8X10X12
92027-162
$6.57
18
DAMPER RUBBER,RR FEND
92075-133
$11.55
19
WASHER,7X27X1.6
92022-227
$4.69
20
FENDER-RR
35022-113
$30.22
21
FENDER-RR
35022-114
$87.14
22
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
23
WASHER SPRING 8MM
461F0800
$0.40
24
WASHER PLAIN 8MM
411B0800
$0.93
25
STAY,REAR FENDER
35032-029
Unavailable
