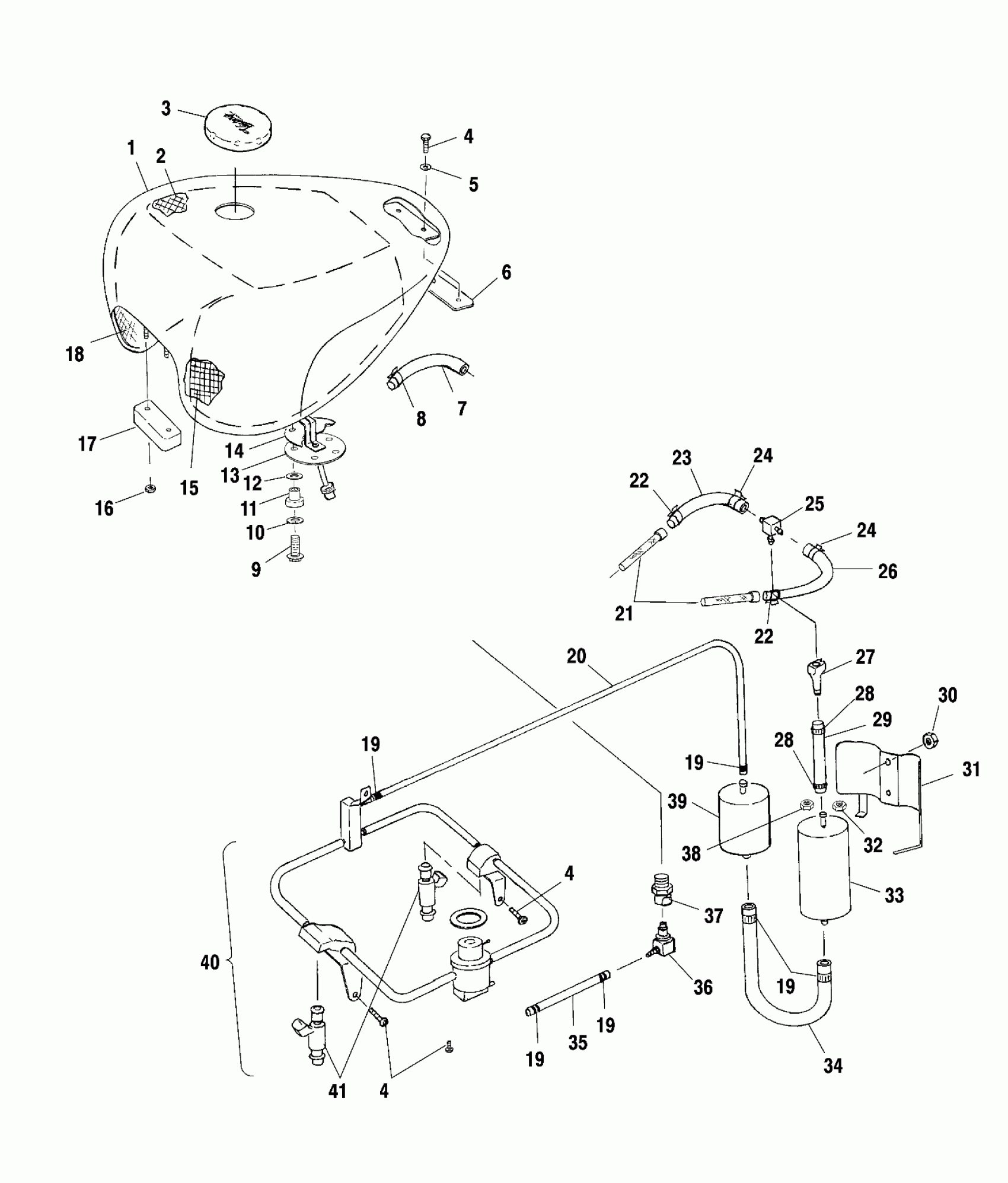

Polaris SPECIAL EDITION - V00CB15DCS FUEL SYSTEM, FUEL TANK, PUMP, RAILS and THROTTLE BODY - V00CB15DCS (4960146014D005) Diagram

#

Description
Price

1

TANK,FUEL

1080004A7

Unavailable

2

SHIELD-HEAT,FUEL TANK

5830147

$144.99

3

CAP,FUEL Substituted by 5132333

5131511

Unavailable

4

Screw

7517355

Unavailable

4

Screw

7517355

Unavailable

4

Screw

7517355

Unavailable

5

WASHER,CUSHION

7556052

Unavailable

6

ISOLATOR,R.TANK MOUNT

5411324

Unavailable

7

HOSE-VENT,FUEL TANK

2520147

Unavailable

8

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

9

SCREW

7517688

Unavailable

10

O-RING-FUEL SENDER,BOOTOM

5411748

$3.49

11

BUSHING-TORQUE LIMITER

5433452

$23.99

12

O-RING-FUEL SENDER,TOP

5411749

$3.49

13

SENDER,FUEL LEVEL

4110231

$180.16

14

GASKET-FUEL SENDER

5811851

$38.41

15

SHIELD,HEAT,FUEL TANK,LEFT

5830163

$81.75

16

NUT Substituted by 7547121

7547045

Unavailable

17

PAD,FUELTANK FRAME,FRONT

5411317

$22.06

18

SHIELD,HEAT,FUEL TANK,RIGHT

5830164

$72.99

19

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

19

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

19

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

19

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

19

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

20

HOSE,FILTER/MANIFOLD

5411803

$26.98

21

FILTER,FUEL

2530031

Unavailable

22

CLAMP-HOSE BAND,5/8"OD UMP

7080795

$3.81

22

CLAMP-HOSE BAND,5/8"OD UMP

7080795

$3.81

23

HOSE,TANK/QUICK DISC,RH

5411799

Unavailable

24

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

24

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

25

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

25

O-Ring

1500199

$4.76

26

HOSE,TANK/QUICK DISC,LH Substituted by 5411929

5411798

Unavailable

27

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

28

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

28

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

29

HOSE,QUICK-DISC/PUMP

5411801

Unavailable

30

NUT Substituted by 7547120

7547041

Unavailable

31

BRKT,FUELPUMP TOP,BLK

5211889-067

Unavailable

32

NUT, HEXHD(10)

7547119

$0.90

33

PUMP,FUEL

2520128

Unavailable

34

HOSE,PUMP/FILTER

5411802

Unavailable

35

HOSE,RAIL/TANK RETURN

5411804

$34.44

36

O-Ring

1500199

$4.76

36

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

37

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

38

Nut

7547118

Unavailable

39

FILTER,FUEL,HI-PRESSURE

2530028

$40.46

40

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

41

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

41

Injector, Fuel

1253174

$177.13
