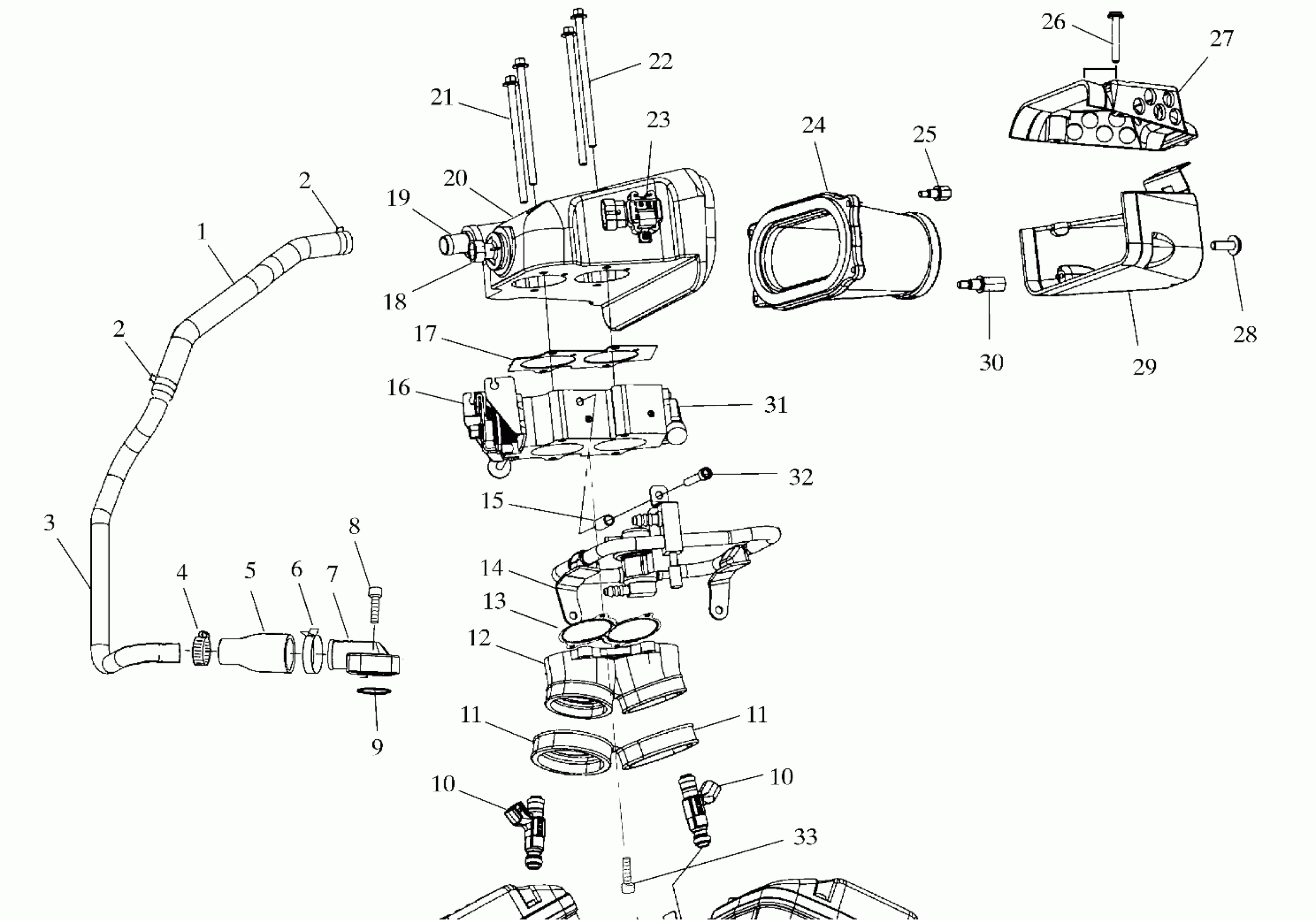

Polaris SPECIAL EDITION - V00CB15DCS FUEL SYSTEM, FUEL LINES and THROTTLE BODY - V00CB15DCS (4960146014D004) Diagram

#

Description
Price

-

THROTTLE BODY,V92C,KIT Substituted by 1253172 (Incl. O-Ring)

2201283

Unavailable

1

HOSE,BREATHER TO AIRBOX

5411223

$5.00

2

CLAMP-BREATHER HOSE,1/2

7080781

$2.17

2

CLAMP-BREATHER HOSE,1/2

7080781

$2.17

3

TUBE-BREATHER,ENGINE

5224831

$69.84

4

CLAMP,BREATHER HOSE

7080714

$1.43

5

HOSE-BREATHER TO ENGINE

5411513

$17.30

6

CLAMP-BREATHER HOSE,3/4

7080782

Unavailable

7

ADAPTER,BREATHER [No Longer Available]

5131679

$32.98

8

SCREW,SOCHD,M6X20

7517384

$8.79

9

O-RING

5411279

Unavailable

10

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

10

CLIP,INJECTOR CLOCKING

7670103

$3.79

10

INJECTOR,FUEL

1253174

$177.13

10

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

10

CLIP,INJECTOR CLOCKING

7670103

$3.79

10

INJECTOR,FUEL

1253174

$177.13

11

CLAMP,BAND,NARROW

7080656

Unavailable

11

CLAMP,BAND,NARROW

7080656

Unavailable

12

ADAPTER,THROTTLE BODY

1253173

Unavailable

13

SEAL,THROTTLE BODY/ADAPTER

5811868

Unavailable

14

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

15

COLLAR,SPACER

5020971

$1.90

16

ASM-BODY,THROTTLE(CALIFORNIA MODEL)

1253328

$404.99

17

GASKET,AIRBOX/THROT.BODY

1253210

Unavailable

18

Sensor, Air Temperature (See Footnote) (See Electrical Pg. B12,Ref. 7)

-------

Unavailable

19

BUSHING,BREATHER,FTNG.

5411535

$6.94

19

FITTING,BREATHER,HOSE

5131939

$9.52

20

BASE,AIRBOX

5432506

Unavailable

21

SCREW

7517496

Unavailable

22

SCREW

7517495

$4.52

23

SCREW,BTNHD,M5X12

7517483

$34.99

23

SENSOR,MAP

4040078

Unavailable

23

BRKT,MAP SENSOR

5211907

$6.59

24

FILTER,AIR

7080695

Unavailable

25

STANDOFF-MALE,M5

5131966

$8.79

26

SCREW

7517594

Unavailable

27

COVER-TOP AIRBOX

5433122

$111.11

28

SCREW

7517593

$1.83

29

AIRBOX,BOTTOM

1253256

$69.84

30

STANDOFF-MALE/FEMALE,M5

5131965

Unavailable

31

Sensor, Throttle Position and O-Ring (See Electrical Pg.B12, Ref.8)

-------

Unavailable

32

SCREW,SOCHD,M6X30(10)

7517301

$2.39

33

SCREW,SOCHD,M5X16

7516610

$3.99
