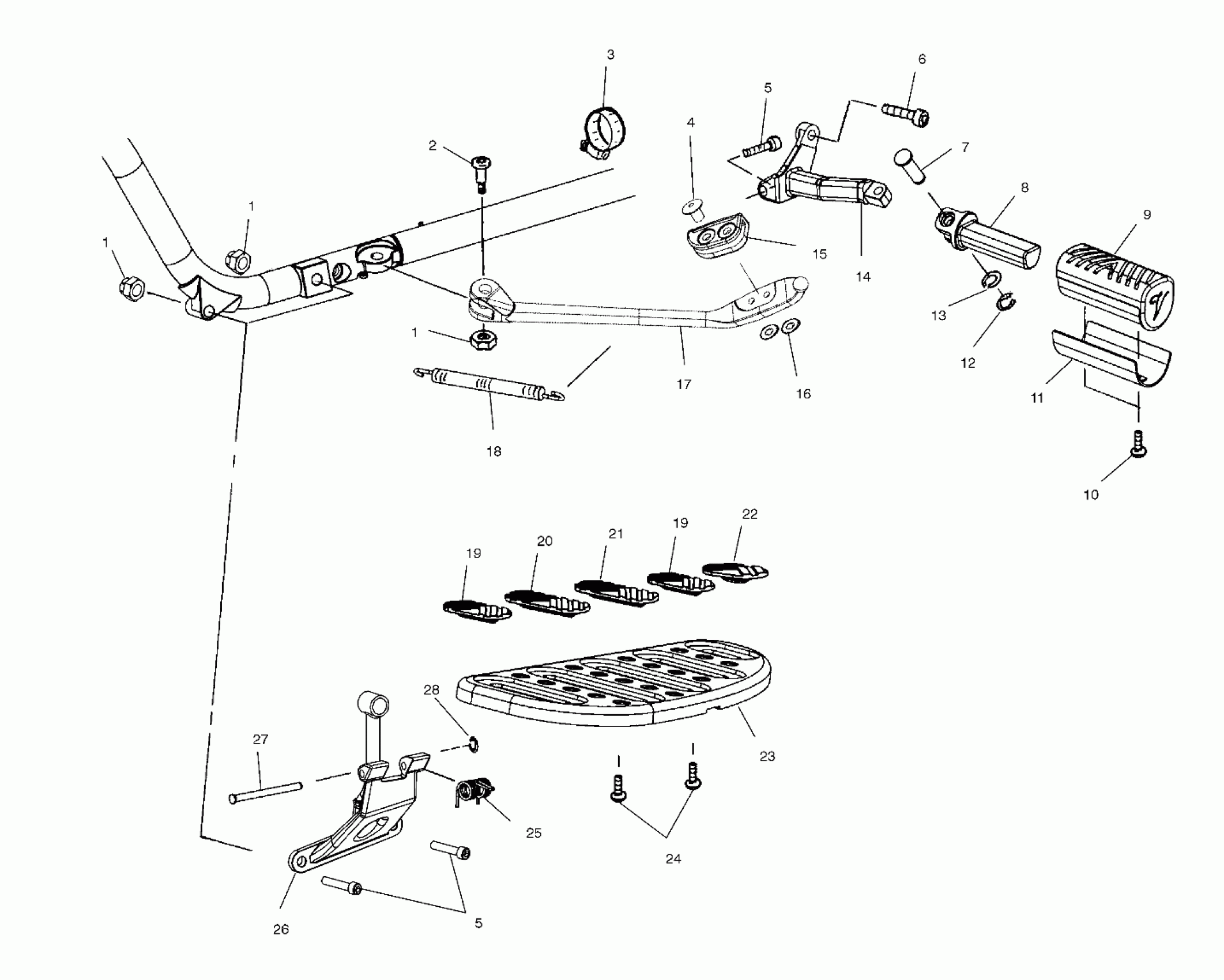

Polaris SPECIAL EDITION - V00CB15DCS CHASSIS, FLOOR BOARD and SIDE STAND - V00CB15DAS (4960146014A008) Diagram

#

Description
Price

1

NUT (10)

7547039

$4.76

1

NUT (10)

7547039

$4.76

1

NUT (10)

7547039

$4.76

2

Screw

7517404

Unavailable

3

CLAMP-WORM GEAR,CUSHION

7080831

$7.06

4

RIVET,TRUSS,HD,SS

7661064

$2.38

5

SCREW,SOCHD,M10X50

7517526

$3.02

5

SCREW,SOCHD,M10X50

7517526

$3.02

6

SCREW (LH Side Only)

7517554

Unavailable

7

PIN,PIVOT,PASS.PEG,SS

5131857

$23.41

8

FOOTPEG,PASS,LH

5630801

$65.48

8

FOOTPEG,PASS,RH

5630802

$130.95

9

PAD,FOOTPEG,PASS.

5411333

$12.30

9

PAD,RH,FOOTPEG,PASS.

5411334

$10.63

10

SCREW

7517359

$4.35

11

DESC NOT_AVAILABLE

5243767

Unavailable

12

E-CLIP,M8,STEEL(10)

7710493

$0.68

13

WASHER,SPRING,SS.(10)

7556046

Unavailable

14

SUPPORT-FTPGS,PASS,LH,BLK. Substituted by 5211828

5211828-067

$77.78

14

SUPPORT-FTPGES,PASS,RH,BLK.

5211829-067

$195.99

15

PAD,SIDE STAND

5411745

Unavailable

16

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.19

17

SIDE STAND,ASM.

1013062

$113.49

18

SPRING-SIDESTAND

7042047

$49.99

19

PAD,F'BOARD,#1/#4

5411267

$11.51

19

PAD,F'BOARD,#1/#4

5411267

$11.51

20

PAD,F'BOARD,#2

5411268

$11.51

21

PAD,F'BOARD,#3

5411269

$11.51

22

PAD,F'BOARD,#5

5411270

Unavailable

23

FLOORBOARD,LH,MACH

5131590

$288.99

23

FLOORBOARD,RH,MACH

5131591

$288.99

24

SCREW(10)

7517694

$8.71

25

SPRING,F'BOARD SUPPORT

7041623

$32.37

26

SUPPORT-FLBRD,LWR,RH,MACH,BLK.

5131691-067

$216.99

26

SUPPORT,SHIFT,BLK

1012978-067

Unavailable

27

PIN,LOW.F'BOARD SUPPORT

7661018

Unavailable

28

E-CLIP,M6,STEEL(10)

7710492

Unavailable
