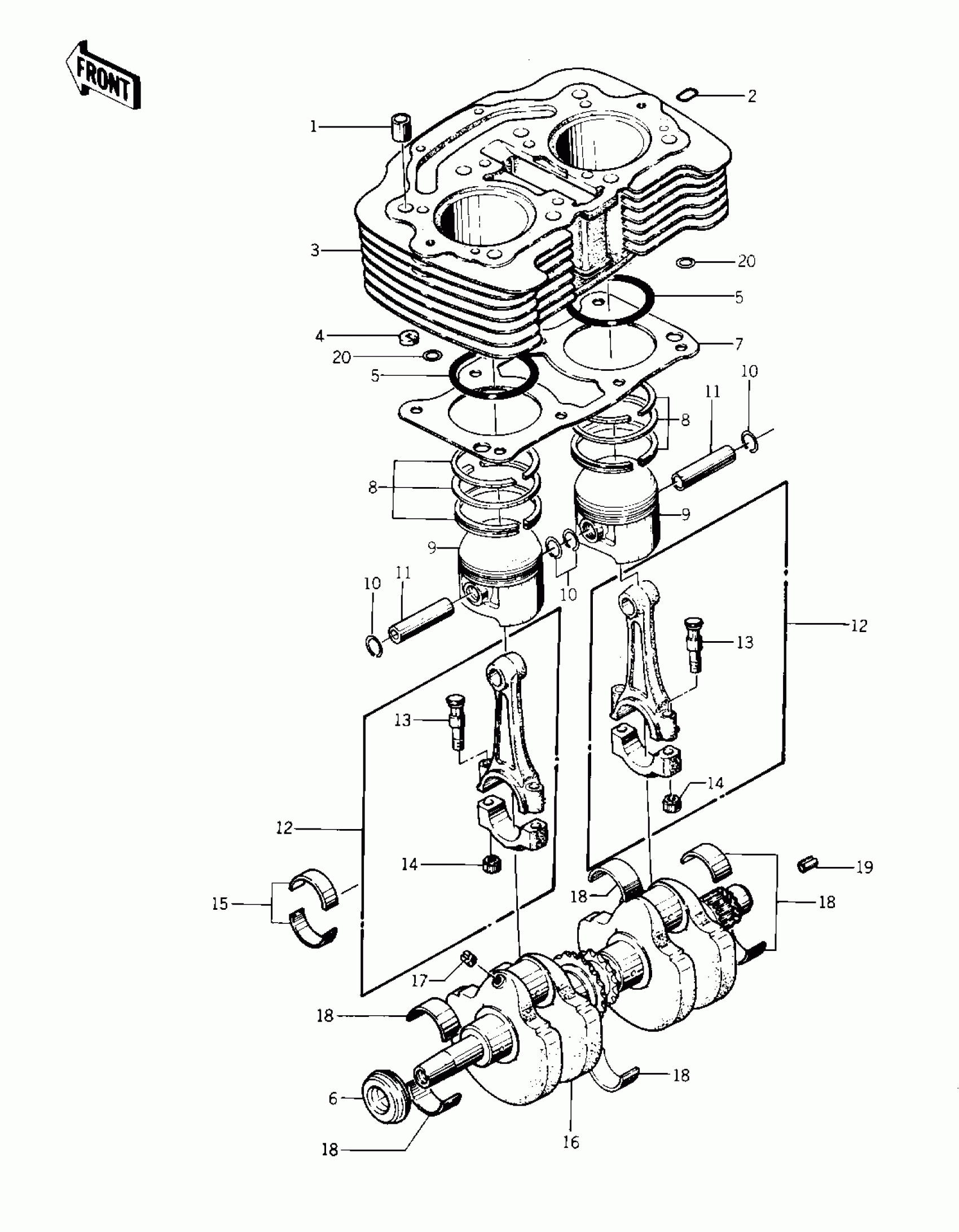

Kawasaki Special CYLINDER/PISTONS/CRANKSHAFT ('76-'77 S2/ Diagram
#
Description
Price
1
PIN,DOWEL,14X14
92042-032
Unavailable
2
"O" RING,CYLINDER
11009-1012
Unavailable
3
CYLINDER,
11005-146
Unavailable
4
DAMPER RUBBER,CYLNDR
92075-256
Unavailable
7
GASKET,CYLINDER BASE
11009-040
Unavailable
8
RING SET,PISTON,STD
13008-5028
Unavailable
8
RING SET,PISTON,STD
13008-5028
Unavailable
8
RING SET,0.020",O/S
13025-5013
Unavailable
8
RING SET,0.020",O/S
13025-5013
Unavailable
8
RING SET,0.040",O/S
13024-5012
Unavailable
8
RING SET,0.040",O/S
13024-5012
Unavailable
9
PISTON,STD
13001-078
Unavailable
9
PISTON,0.020'0.S
13029-073
Unavailable
9
PISTON,0.040'0.S
13027-066
Unavailable
11
PIN-PISTON
13002-029
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,G
13032-046-GG
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,I
13032-046-II
Unavailable
12
UNAVAILABLE IN PRICE BOOK
13032-146-JJ
Unavailable
12
UNAVAILABLE IN PRICE BOOK
13032-046-KK
Unavailable
13
BOLT
92001-169
Unavailable
13
BOLT
92001-169
Unavailable
15
METAL,CONROD BEARING
13034-037
Unavailable
15
METAL,CON ROD
13034-047
Unavailable
15
METAL,CON ROD
13034-048
Unavailable
16
CRANKSHAFT ASSY
13037-061
Unavailable
20
"O" RING
92055-090
Unavailable
