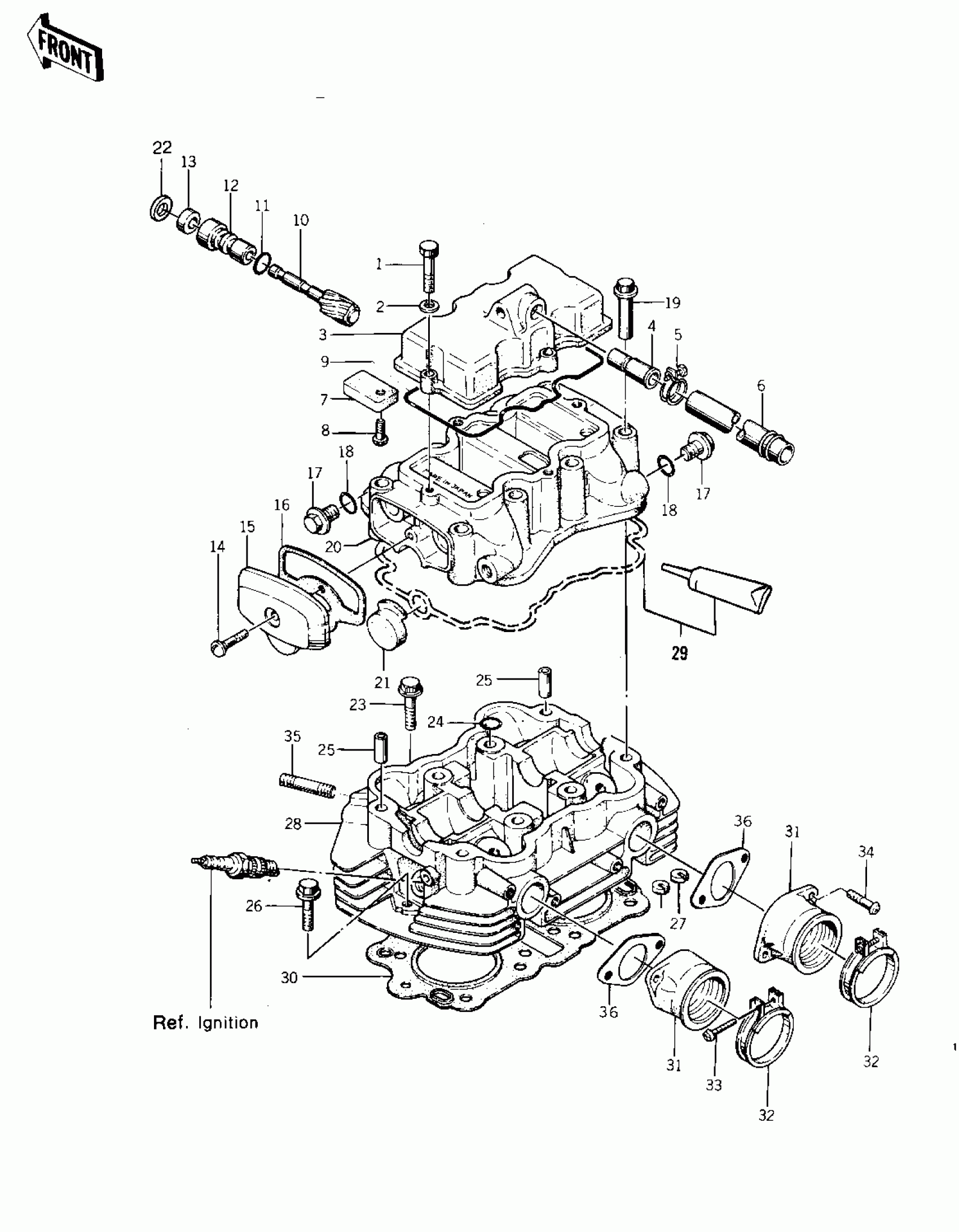

Kawasaki Special CYLINDER HEAD/COVERS ('75 S) Diagram

#

Description
Price

1

BOLT HEX HEAD 8X28

114G0828

$3.71

2

WASHER PLAIN 8MM

410B0800

$0.93

3

COVER,BREATHER

14070-005

$85.75

4

FITTING,BREATHER

14067-006

$21.09

4

FITTING,BREATHER

14067-006

$21.09

5

CLAMP,BREATHER HOSE

92037-123

$4.34

5

CLAMP,BREATHER TUBE

92037-192

$6.52

6

HOSE,BREATHER

92059-104

Unavailable

7

PLATE,BREATHER

14068-006

$5.19

9

"O" RING,BRETHER COV

92055-064

Unavailable

10

GEAR,TACHOMETER

13223-009

Unavailable

11

RING-O,10MM

92055-1149

$6.57

12

GUIDE,TACHOMETER GEAR

92087-011

$14.24

13

SEAL-OIL

92050-075

$11.39

14

SCREW OVL CNTSK 6X25

222E0625

Unavailable

15

CAP,CYL HEAD COVER

11027-003

Unavailable

16

GASKET,CYL HEAD COVER

11023-007

Unavailable

17

PLUG,18X9

92066-066

$10.97

18

RING-O,20X2

92055-1146

$8.58

19

NUT,CYLINDER HEAD

92015-071

$15.16

20

COVER,CYLINDER HEAD

11022-013-2H

Unavailable

20

COVER,CYLINDER HEAD

11022-013-2H

Unavailable

21

CAP,CLY HEAD COVER

92073-035

Unavailable

22

GASKET,TACHO GEAR

92065-104

Unavailable

23

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

24

"O" RING,HD COV BOLT

92055-067

Unavailable

25

PIN,DOWEL,12X14

92042-031

$6.57

26

BOLT, HEX HEAD, 8X34

92003-153

Unavailable

27

DAMPER RUBBER,CYL HD

92075-255

$9.08

28

CYLINDER HEAD,BARREL

11002-018-2H

Unavailable

29

CLEAR SILICONE

K61079-007

Unavailable

30

GASKET,CYLINDER HEAD

11004-1003

Unavailable

31

DUCT,ENGINE INTAKE

16065-037

Unavailable

31

DUCT,ENGINE INTAKE

16065-037

Unavailable

32

CLAMP,57MM,BLACK

92037-1452

$11.37

33

SCREW-PAN-CROS

220B0535

$3.70

34

SCREW PAN HEAD 6X18

220B0618

$3.67

35

STUD,6X46

92004-049

$10.26

36

GASKET,CARB HOLDER

16062-020

Unavailable
