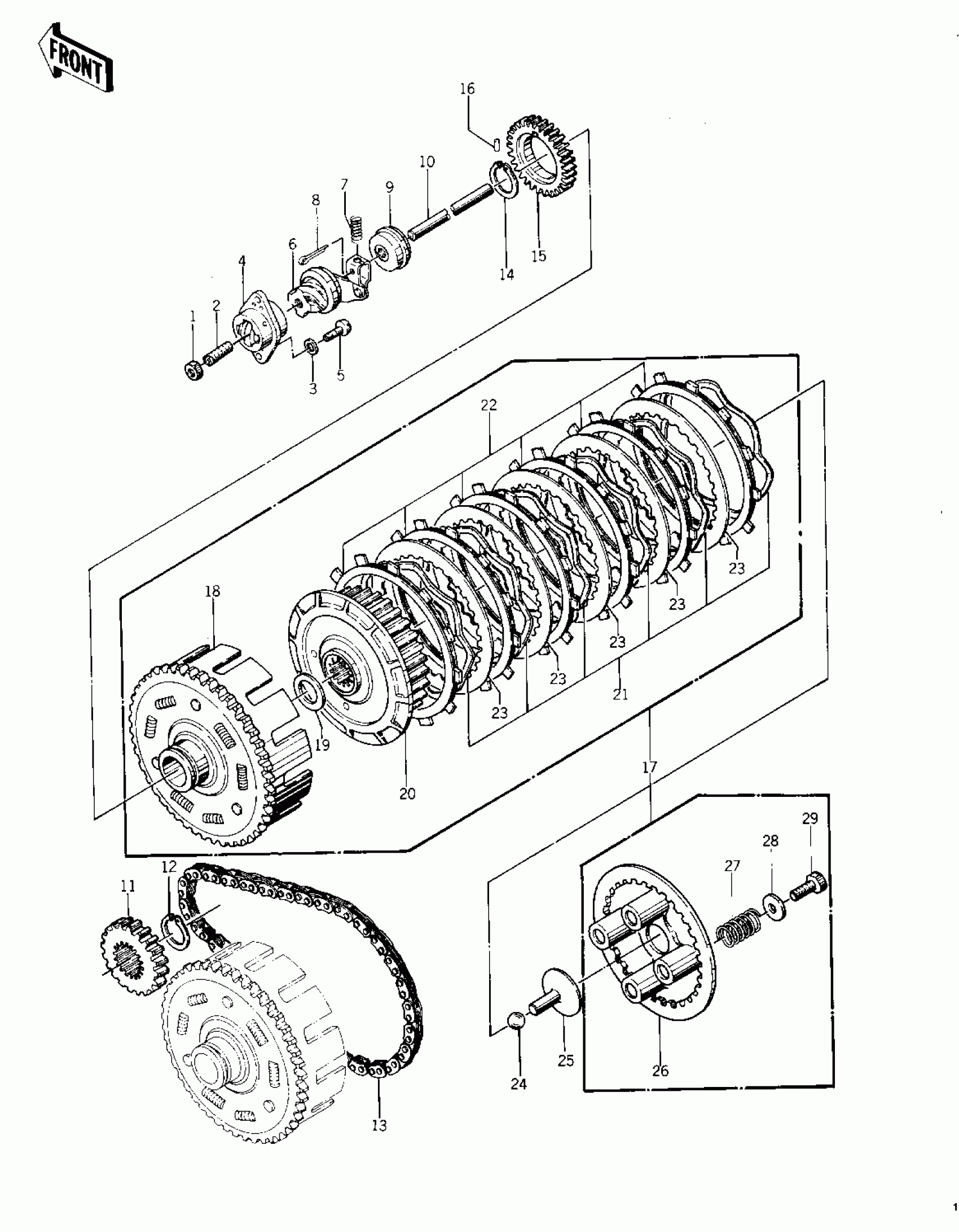

Kawasaki Special CLUTCH ('75 S) Diagram

#

Description
Price

1

NUT-HEX-SMALL,8MM

318B0800

$0.59

2

SCREW,SLOTTED,8X25

92014-014

Unavailable

3

WASHER PLAIN 6MM

411B0600

$2.84

4

OUTER,CLUTCH RELEASE

13118-007

Unavailable

5

SCREW-PAN-CROS,6X16

220B0616

$2.84

6

INNER,CLUTCH RELEASE

13102-013

Unavailable

7

SPRING,CLUTCH RELEASE

92081-069

$7.51

8

PIN-COTTER,1.6X15

550D1615

$2.51

9

OIL SEAL,PUSH ROD

92050-068

$32.73

9

OIL SEAL,PUSH ROD

92049-1041

Unavailable

10

ROD,PUSH,CLUTCH

13116-1017

Unavailable

10

ROD,PUSH,CLUTCH

13116-1017

Unavailable

11

SPROCKET,PRIMARY

13121-030

Unavailable

12

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

13

CHAIN,PRIMARY DRIVE

13122-005

Unavailable

14

CIRCLIP, 38MM

480J3800

$5.44

15

GEAR,OIL PUMP

16084-019

$46.20

15

GEAR,OIL PUMP

16084-019

$46.20

16

PIN, DOWELL, 6X6

610A0606

$2.60

17

CLUTCH-ASSY

13081-074

Unavailable

18

HOUSING,CLUTCH

13095-045

Unavailable

19

WASHER,CLUTCH THRUST

92022-288

$12.83

20

HUB,CLUTCH

13087-040

Unavailable

21

RING,CLUTCH STEEL

13229-005

Unavailable

22

PLATE,FRICTION

13088-1001

Unavailable

22

PLATE,FRICTION

13088-1001

Unavailable

23

PLATE-CLUTCH,T=2.0

13089-026

$12.80

24

BALL-STEEL,3/8"

600A1200

$1.56

25

PUSHER,CLTCH SPRG PLT

13116-029

Unavailable

26

PLATE,CLUTCH SPRING

13187-007

Unavailable

27

SPRING,CLUTCH

92081-1033

$7.38

27

SPRING,CLUTCH

92081-1033

$7.38

28

HOLDER,CLUTCH SPRING

13091-011

$5.78

29

BOLT-UPSET

112G0618

$1.01
