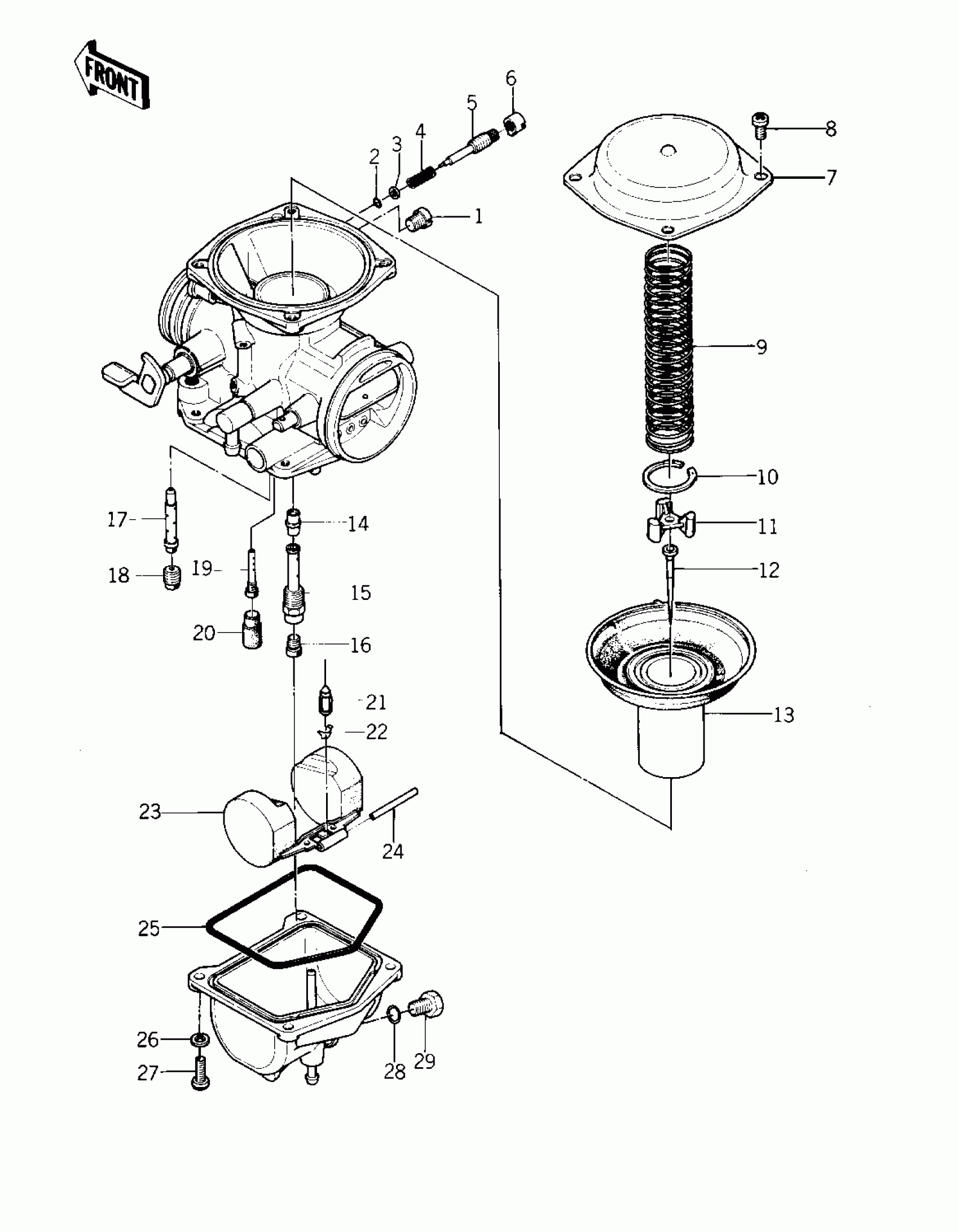

Kawasaki Special CARBURETOR PARTS (KZ400-S3) Diagram

#

Description
Price

1

SCREW,PLUG

92009-1004

Unavailable

2

RING-O,PILOT ADJUST

92055-1002

$4.31

3

WASHER,PLAIN

92022-1003

$4.31

4

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

5

SCREW,PILOT ADJUST

16014-1001

Unavailable

6

CAP,JET NEEDLE

11012-3727

Unavailable

7

TOP-CHAMBER,MIXING

16005-1001

$39.60

8

SCREW PAN HEAD 4X8

220B0408

$0.67

9

SPRING

92081-1001

Unavailable

10

CLAMP

92037-1005

Unavailable

11

SEAT-SPRING,THROTTLE VALVE

16007-1001

Unavailable

12

JET NEEDLES,#003301

16009-1002

$30.76

13

VACUUM,VALVE

16126-1042

$239.33

14

NEEDLE JET

16017-1001

Unavailable

15

HOLDER,NEEDLE JET

16047-007

$21.51

16

JET-MAIN,#95

92063-1001

$15.04

16

JET-MAIN,#90

92063-1003

Unavailable

16

JET-MAIN,#92

92063-1004

Unavailable

16

JET-MAIN,#98

92063-1005

Unavailable

16

JET-MAIN,#100

92063-1006

Unavailable

17

NOZZLE,MAIN

92062-1001

Unavailable

18

MAINJET,PRIMARY,#70

92063-1002

$19.88

19

JET-PILOT,#35

92064-1001

$23.08

20

CAP,RUBBER

16012-1001

Unavailable

21

VALVE-FLOAT

16030-1007

$47.99

22

CLAMP,FLOAT VALVE

16044-007

$7.91

23

FLOAT

16031-1001

Unavailable

24

PIN,FLOAT

92043-1002

Unavailable

25

O RING,FLOAT CHAMBER

16019-024

Unavailable

26

WASHER SPRING 4MM

461F0400

Unavailable

27

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

28

"O" RING,DRAIN SCREW

92055-1003

Unavailable

29

SCREW,DRAIN

92009-1003

Unavailable
