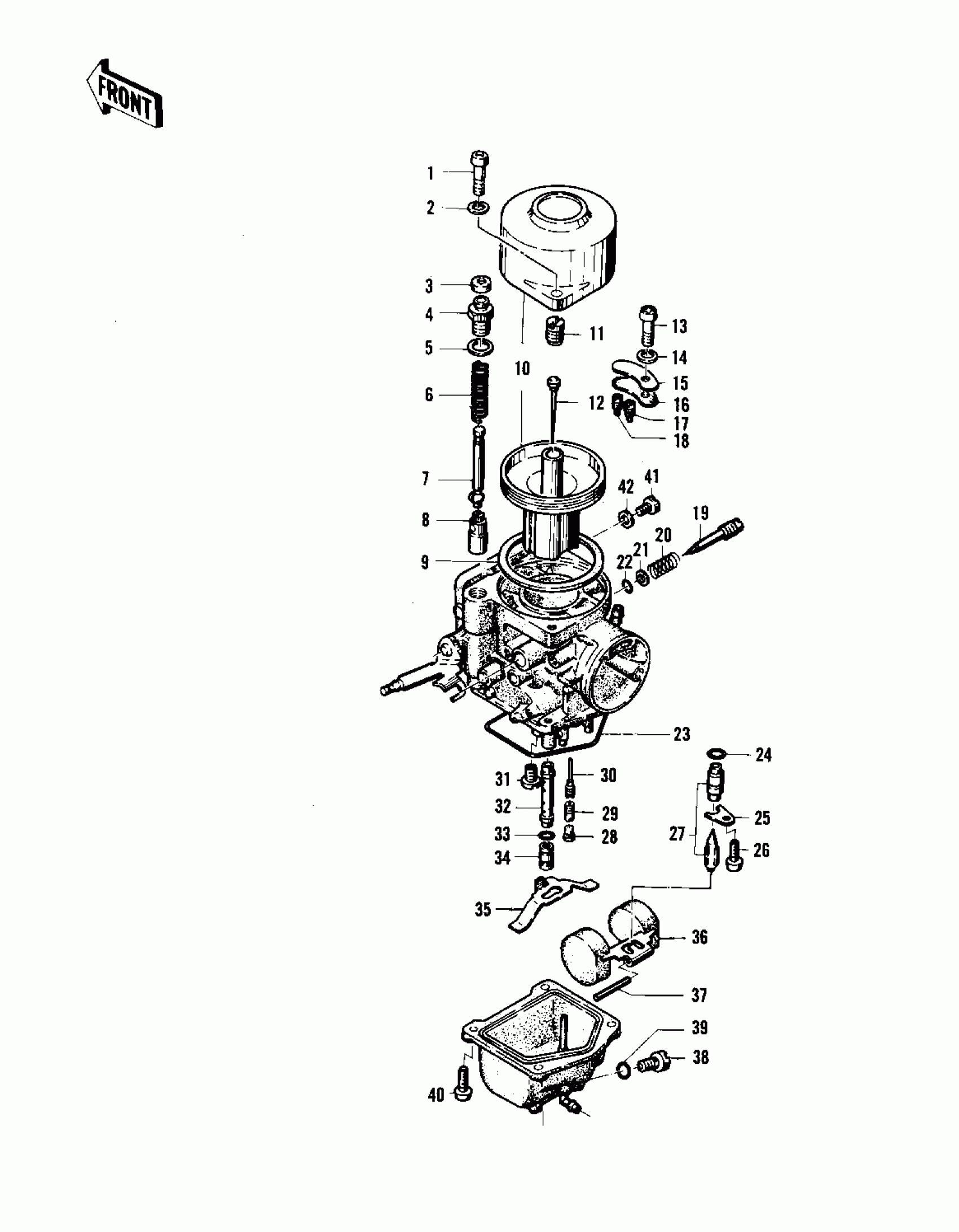

Kawasaki Special CARBURETOR PARTS ('75 S) Diagram

#

Description
Price

1

SCREW PAN HEAD 5X16

220B0516A

$2.06

2

WASHER SPRING 5MM

461F0500

$0.69

3

CAP,STARTER PLUNGER

16036-014

$7.78

4

CAP,STARTER PLUNGER

16012-018

$9.84

5

WASHER,PLAIN

16039-022

$5.51

6

SPRING,STARTER PLUNG

16013-012

$4.70

7

SHAFT,STARTER PLUNGR

16041-007

$6.30

8

PLUNGER,STARTER

16016-015

Unavailable

9

GASKET,VACUUM PISTON

16029-008

Unavailable

10

VACUUM PISTN&CAB CAP

16059-003

Unavailable

11

HOLDER,JET NEEDLE

16018-003

$5.79

12

JET NEEDLE,303011

16009-069

Unavailable

13

SCREW PAN HEAD 4X6

220B0406

$1.67

14

WASHER SPRING 4MM

461F0400

Unavailable

15

PLATE,AIR JET

16055-005

$2.08

16

GASKET,AIR JET PLATE

16029-009

Unavailable

17

AIR JET,#60

16035-003

$3.90

18

AIR JET,#90

16035-005

$9.01

19

SCREW,PILOT ADJUST

16014-013

Unavailable

20

SPRING,PILOT ADJ SCR

16015-007

Unavailable

21

WASHER,PLAIN,3.6MM

16039-021

$3.01

22

"O" RING,PILOT SCREW

16038-011

Unavailable

23

O RING,FLOAT CHAMBER

16019-024

Unavailable

24

RING-O

92055-1246

$4.50

25

PLATE,FLOAT VALVE

16055-006

Unavailable

26

SCREW PAN HEAD 4X6

220B0406

$1.67

27

FLOAT VALVE ASSY

16030-023

Unavailable

28

CAP,PILOT JET RUBBER

16036-015

Unavailable

29

PILOT JET,#35

92064-043

Unavailable

30

SLOW JET,#35

16158-002

Unavailable

31

STARTER JET,#72

16157-002

$13.74

32

NEEDLE JET

16017-088

Unavailable

33

"O" RING MAIN JET

16038-013

$7.24

34

MAIN JET,#125

92063-137

Unavailable

34

MAIN JET,#115

92063-136

Unavailable

34

MAIN JET,#120

92063-129

Unavailable

34

MAIN JET, #130

92063-130

Unavailable

34

MAIN JET,#135

92063-128

Unavailable

34

MAIN JET,#140

92063-138

Unavailable

34

MAIN JET, #150

92063-131

Unavailable

34

MAIN JET, #160

92063-132

Unavailable

35

PLATE,MAIN JET

16055-007

Unavailable

36

FLOAT

16031-027

Unavailable

37

FLOAT PIN

16032-007

Unavailable

38

SCREW,DRAIN

16033-018

Unavailable

39

"O" RING,DRAIN SCREW

92055-1003

Unavailable

40

SCREW PAN HEAD 4X10

220B0410

$2.30

41

SCREW,PLUG

16033-019

Unavailable

42

WASHER,PLAIN,6MM

16039-028

Unavailable
