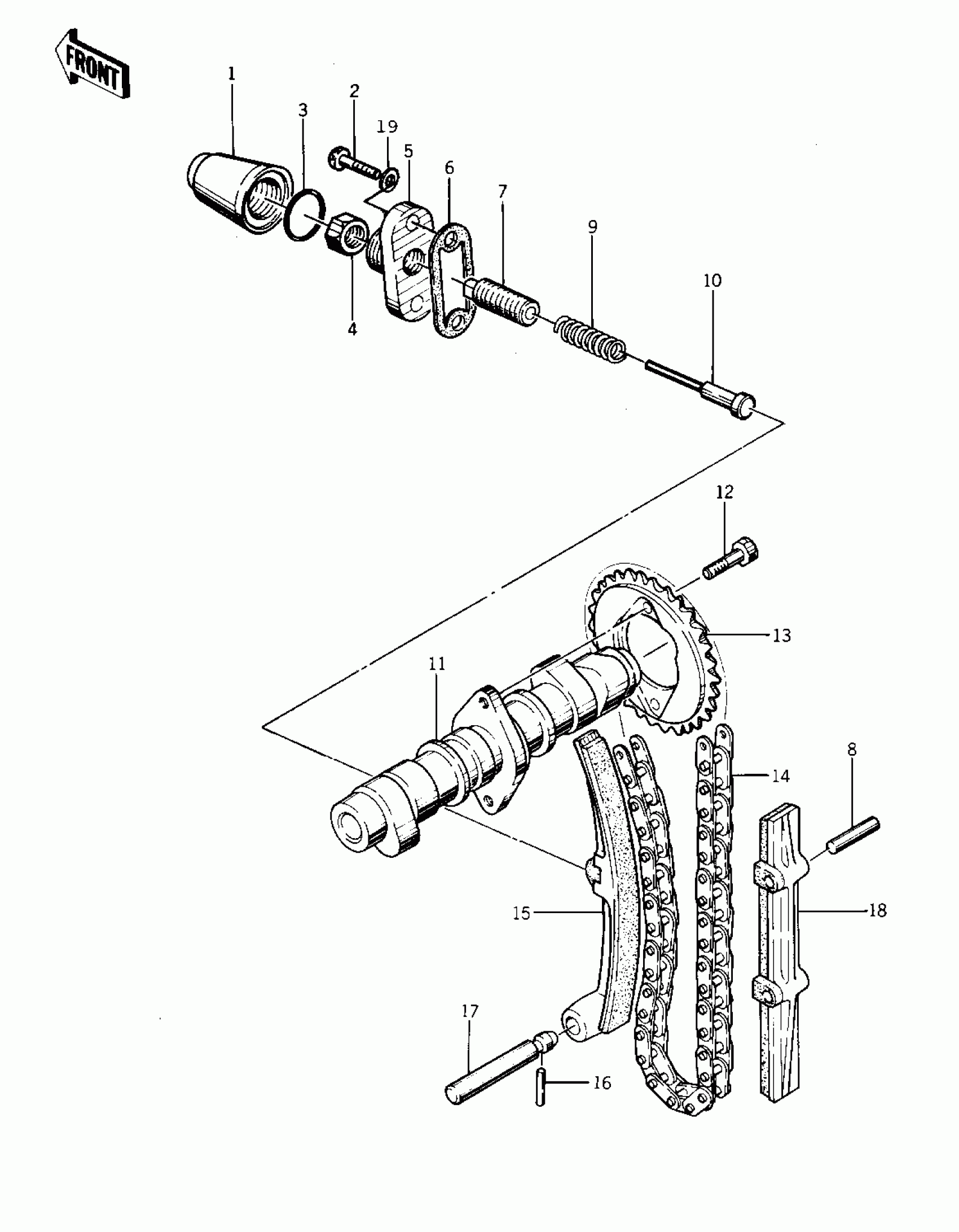

Kawasaki Special CAMSHAFT/CHAIN/TENSIONER ('76-'77 S2/S3) Diagram

#

Description
Price

1

CAP, CHAIN TENSIONER

12064-004

Unavailable

2

BOLT-HEX HEAD,6X16

92001-114

$4.37

3

"O" RING

92055-104

Unavailable

4

UNAVAILABLE IN PRICE BOOK

62016-054

Unavailable

5

HOLDER,CAM CHIN TENS

12047-004

Unavailable

6

GASKET,CHAIN TENSIONR

11009-1022

Unavailable

7

GUIDE,PUSH ROD

92001-1271

$45.33

7

GUIDE,PUSH ROD

92001-1271

$45.33

8

PIN,DOWEL,5X32

551A0532

$3.14

9

SPRING,CHAIN TENSINR

92081-131

Unavailable

10

ROD,PUSH

12054-002

Unavailable

11

SHAFT,CAM

12044-009

Unavailable

12

BOLT,FLANGED,6X11

92003-208

$4.31

13

SPROCKET,CAM

12046-004

Unavailable

14

CHAIN CAM

21070-004

$147.34

15

GUIDE,CAM CHAIN

12053-002

Unavailable

16

PIN,DOWEL,4X25

551A0425

$2.24

17

SHAFT,CHAIN GUIDE

12065-001

Unavailable

18

GUIDE,CHAIN,REAR

12053-1042

Unavailable

19

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31
