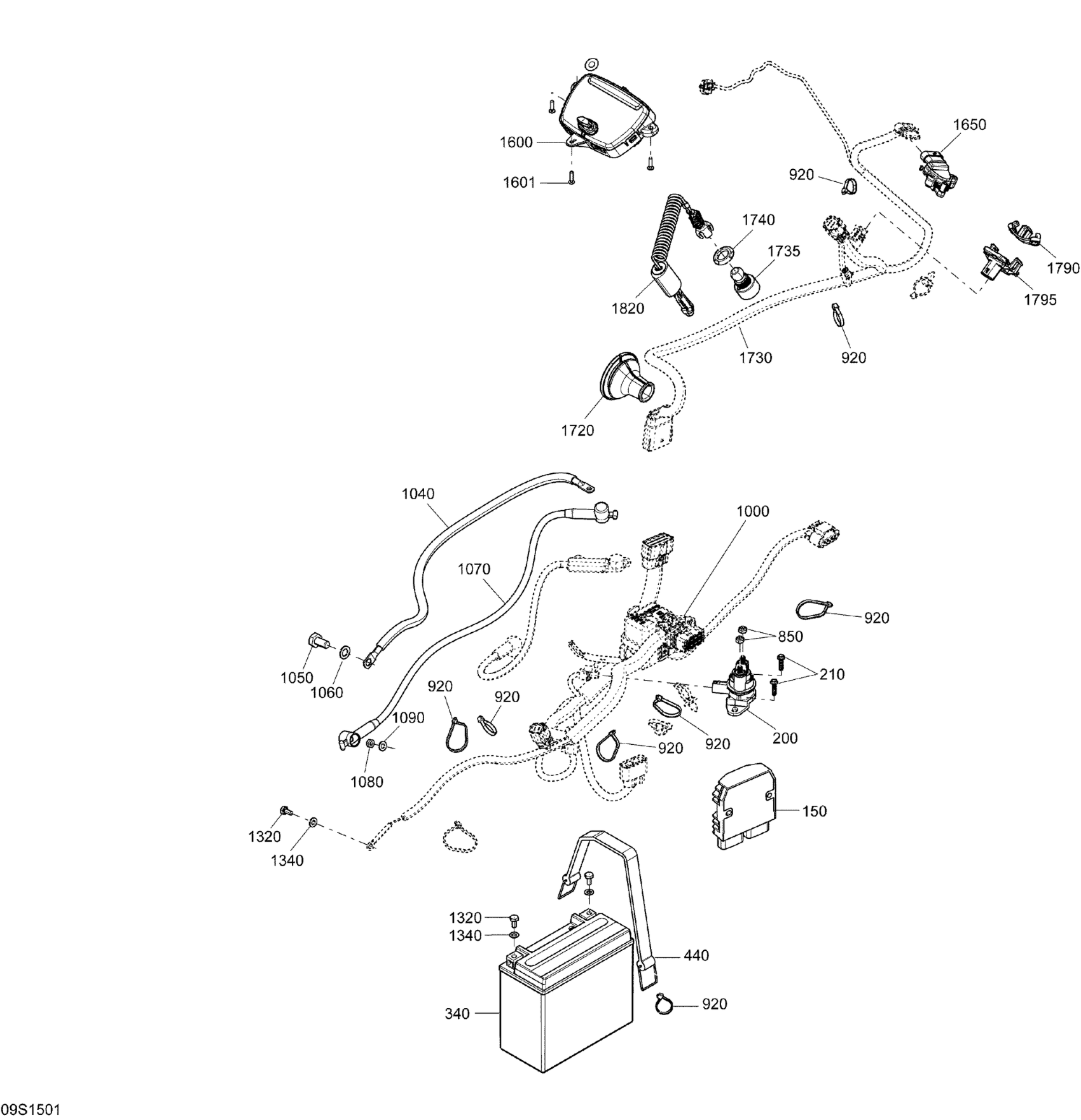

Sea-doo SPARK ACE 900 (2up), 2015 Electrical System _09S1501 Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Starter Relay

278003012

$35.07

Hex. Flange Screw K50 X 20

241152060

$1.57

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Fuel Tank Strap

293850093

$16.87

Elastic Stop Nut M6, Brass

232561200

$3.51

Tie-Rap 180 mm

414115200

$0.09

WIRING HARNESS MAIN - Call your local BRP dealership

278003151

Unavailable

WIRING HARNESS MAIN - Call your local BRP dealership

278003151

Unavailable

Ground Cable

278003271

$31.17

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

Flat Washer 10 mm, Stainless

234000600

$1.07

Starter Cable

278003268

$55.94

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

LCD Gauge | Models without iBR

278003404

$573.85

LCD Gauge | Models without iBR

278003404

$573.85

Flange Torx Screw K40 X 16

250000287

$1.74

Throttle Position Sensor

278002283

$94.22

Cable Grommet

293720092

$10.28

Steering Cable Ass'y

278002956

Unavailable

Steering Cable Ass'y

278002956

Unavailable

Steering Harness Ass'y

278003350

$282.06

Emergency Switch Ass'y, NOT RFID

278002677

$42.87

Safety Nut (DESS Switch)

278002963

$2.72

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Safety Lanyard Ass'y, NOT RFID

278003410

$58.47
