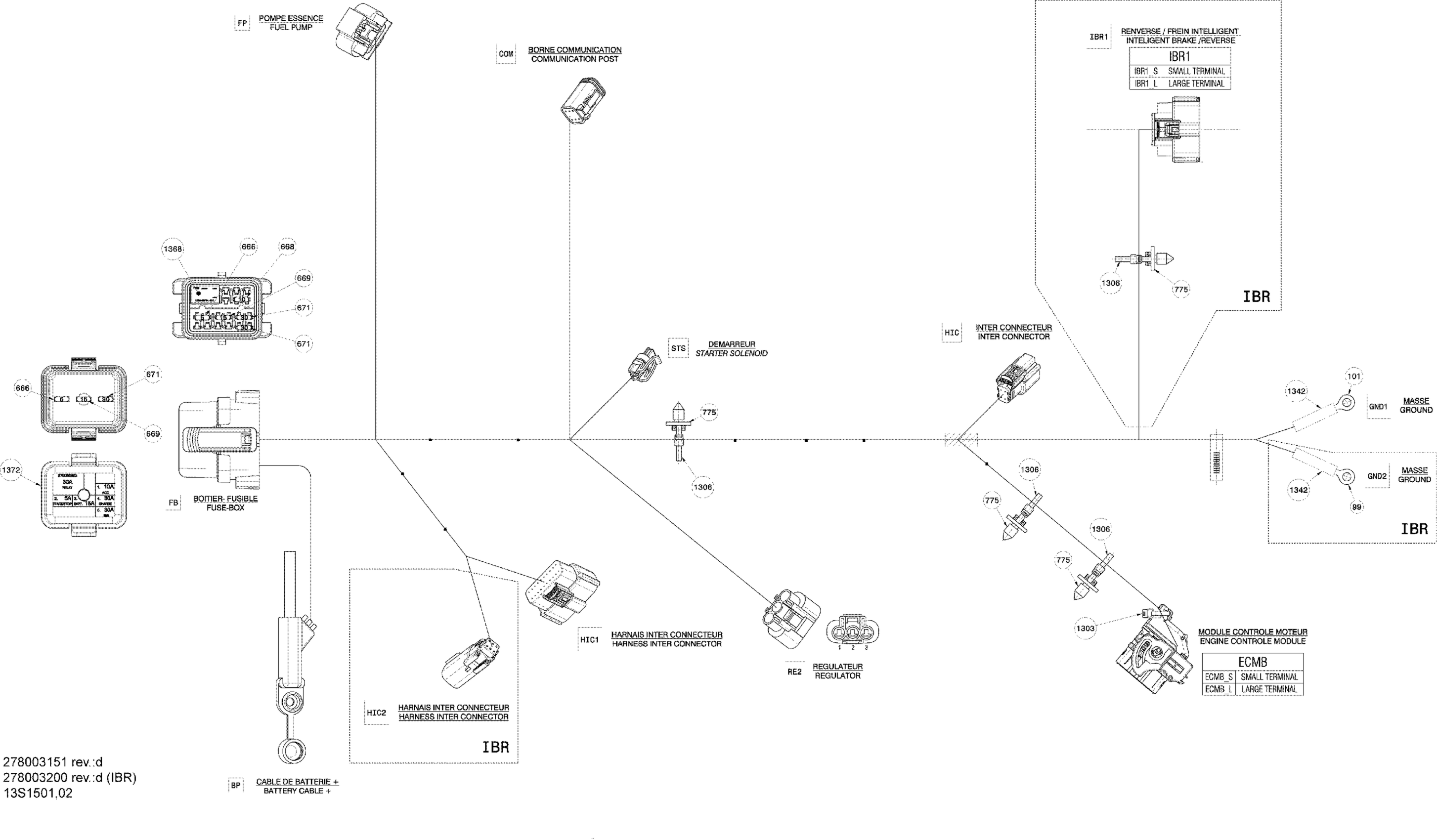

Sea-doo SPARK ACE 900 (2up), 2015 Electrical Harness Main_13S1501 Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership

278003151

Unavailable

775

Mount Dart

293730040

$1.04

BP

Battery Cable

278002765

$71.99

COM

Female Terminal

278001665

$4.55

COM

Housing, 6 Circuits

278002896

$14.99

COM

Male Wedge, 6 Circuits

515175678

$5.39

COVER

Little Fuse, 5 Amperes

710000742

$8.79

COVER

Little Fuse, 15 Ampere

710000745

$8.49

COVER

Little Fuse, 30 Amperes

710000747

$8.49

ECMB_L

Female Terminal

710001590

$2.09

ECMB_L

Plug

710001593

$2.21

ECMB_L

Female Terminal

710001727

$3.19

ECMB_S

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB_S

Female Terminal

710001589

$2.21

ECMB_S

Cover, 48 positions

710001591

$12.18

ECMB_S

Plug

710001592

$2.21

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

278002578

$1.04

FB

Relay 30 Amp

278003828

$13.99

FB

Case Ass'y with seal, 24 positions

278002824

$35.99

FB

Fuse Cover

278002825

$14.24

FB

Seal Plug

278002880

$7.86

FB

Wire Seal

710000048

$7.69

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel Terminal

278001392

$4.79

GND2

Not Available As Spare Parts

XXX

Unavailable

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Female Terminal | Not Shown

278002453

$5.79

HIC

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278002854

Unavailable

HIC1

Female Terminal | Not Shown

278002453

$5.79

HIC1

Seal Plug

278002457

$11.99

HIC1

Female Housing 20 Circuits

278002858

$22.49

HIC2

Not Available As Spare Parts

XXX

Unavailable

HIC2

Not Available As Spare Parts

XXX

Unavailable

IBR1_L

Not Available As Spare Parts

XXX

Unavailable

IBR1_L

Not Available As Spare Parts

XXX

Unavailable

IBR1_L

Not Available As Spare Parts

XXX

Unavailable

IBR1_S

Not Available As Spare Parts

XXX

Unavailable

IBR1_S

Not Available As Spare Parts

XXX

Unavailable

IBR1_S

Not Available As Spare Parts

XXX

Unavailable

RE2

Female Terminal

710000877

$9.12

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Seal

710000881

$17.99

RE2

Cap

710000882

$11.49

STS

Female Housing, 2 Circuits

515177192

$9.12

STS

Wire Seal

710001163

$7.69

STS

Female Terminal

710001164

$8.89
