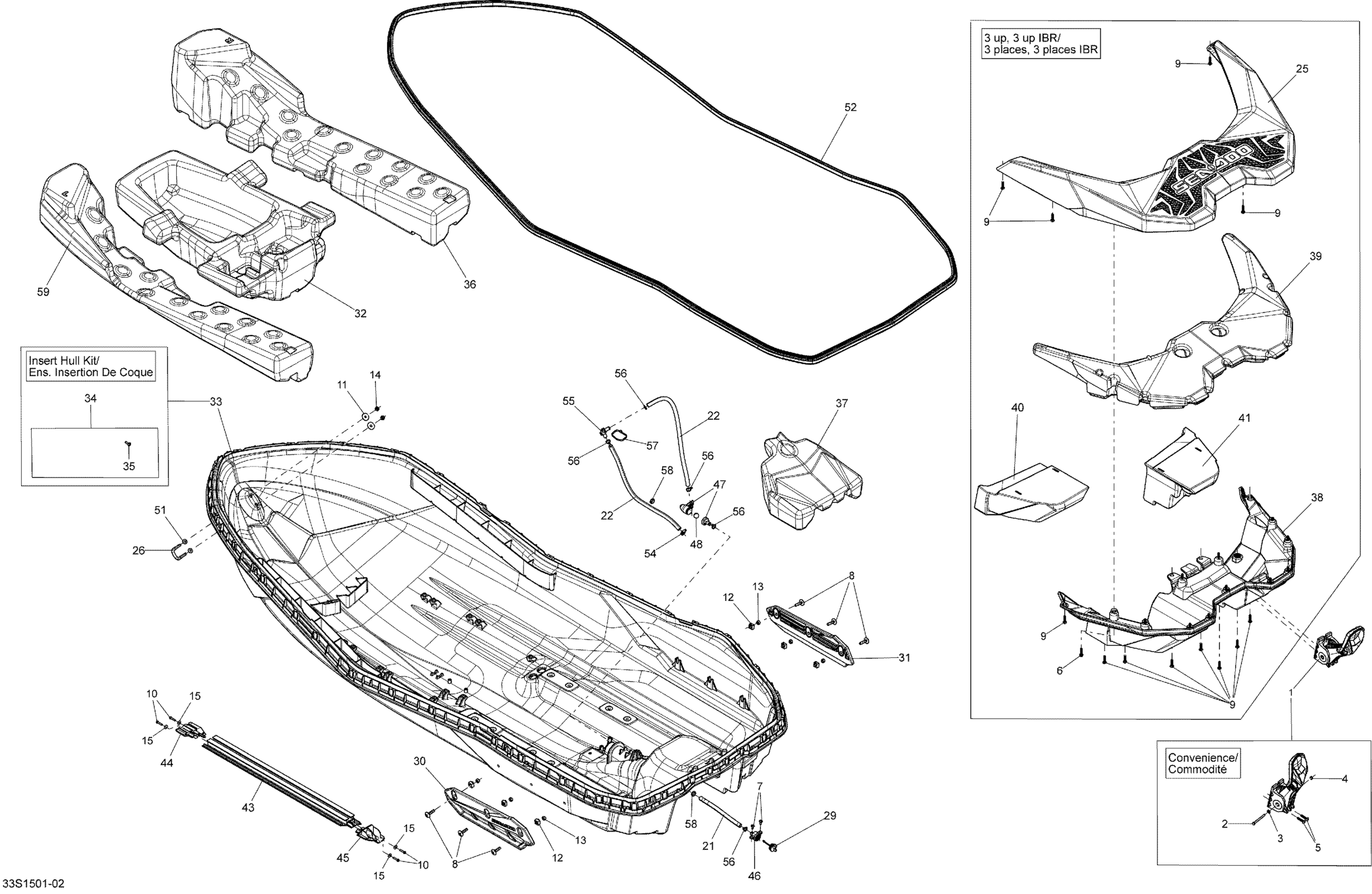

Sea-doo SPARK ACE 900 (2up), 2015 Hull _33S1501 Diagram

#

Description
Price

1

Reboarding Device Ass'y

295100642

$126.99

2

Hex. Screw M6 X 70

207067060

$5.61

3

Stainless Flat Washer M6

234061600

$0.33

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Screw Torx M6.81 X 30

250001007

$2.54

6

Not Available As Spare Parts

XXX

Unavailable

7

Torx Screw M6 X 14

250000384

$7.51

8

Torx Screw M8 X 35

250000697

$3.91

9

Not Available As Spare Parts

XXX

Unavailable

10

Hex. Flange Screw K50 X 25

250000680

$1.89

11

Flat Washer 8 mm, Stainless

250200175

$3.06

12

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

13

Hex. Elastic Nut M8 Brass

232581200

$2.22

14

Hex. Elastic Nut M8 Brass

232581200

$2.22

15

Flat Washer 5 mm, Stainless

234052600

$0.77

21

Was 275500008 Hose 12 mm

219704356

$20.49

22

Was 275500008 Hose 12 mm

219704356

$20.49

25

Not Available As Spare Parts

XXX

Unavailable

26

U-Clamp

292000933

$59.49

29

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

30

LH Sponson

292002008

$82.99

31

RH Sponson

292002009

$82.99

32

Front Float

292001439

$92.99

33

Hull | Includes 10 to 10a

295501188

$1.00

34

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

35

Torx Screw M6 X 20

250000711

$1.90

36

RH Float

292001468

$76.99

37

Rear Float

292001469

$27.99

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

43

Hull Reinforcement

292001549

$92.99

44

Front End Piece Reinforcement

292001550

$12.99

45

Rear End Piece Reinforcement

292001551

$12.99

46

Neck Drain

292001552

$14.49

47

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

48

Floating Ball

293830080

$7.19

51

Flat Washer M8.5 x 18

293050001

$3.07

52

Seal Joint

293250338

$64.99

54

Tridon Gear Clamp

293650171

$3.09

55

Fitting Elbow 90°

293710152

$18.49

56

Tie Wrap 94 mm | 4X4

293750001

$1.03

57

Tie Wrap 368 mm

293750008

$1.04

58

Rubber Washer

293830063

$1.90

59

LH Float

292001467

$76.99
