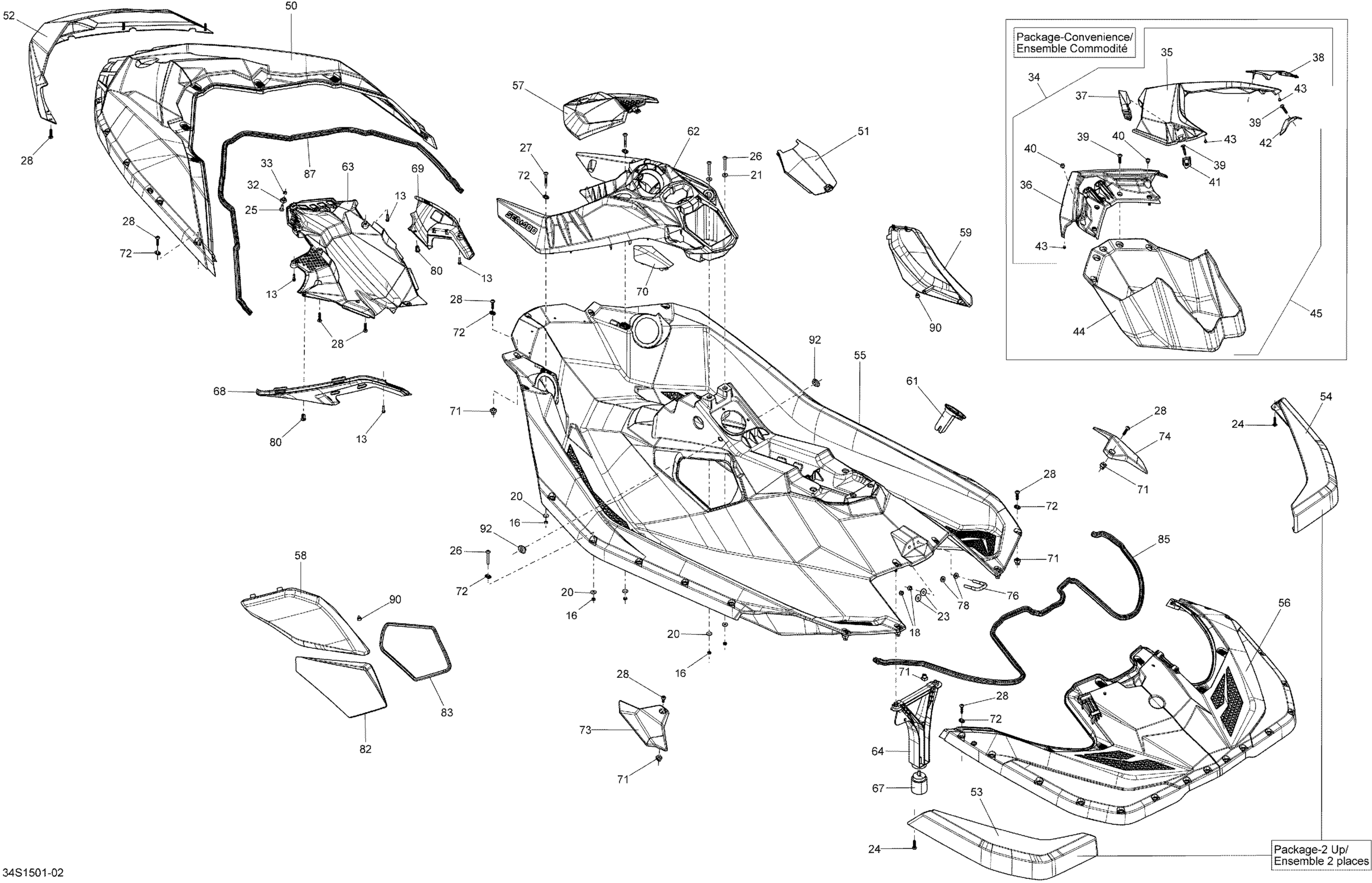

Sea-doo SPARK ACE 900 (2up), 2015 Body _34S1501 Diagram

#

Description
Price

13

Hex. Screw 10-14 X 7/8”

211000023

$2.91

16

Elastic Stop Nut M6, Brass

232561200

$3.51

18

Hex. Elastic Nut M8 Brass

232581200

$1.29

20

Flat Washer M6, Stainless

234062600

$0.64

21

Flat Washer M6, Stainless

250200150

$2.87

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Screw Torx M6.81 X 30

250001007

$1.61

25

Torx Screw M6 X 20

250000711

$2.64

26

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

27

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

28

Screw Torx M6.81 X 30

250001007

$1.61

32

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

33

Elastic Stop Nut M6, Brass

232561200

$3.51

34

Black, Front Deflector Kit

295100865

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

LH Retaining Strap

269800472

$20.77

38

RH Retaining Strap

269800498

$20.77

39

Screw Torx M6.81 X 30

250001007

$1.61

40

Rubber Bumper

293830005

$5.33

41

LH Hook

269800541

$3.24

42

RH Hook

269800542

$3.24

43

Rubber Bumper

269800662

$0.74

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Storage Bin Kit

295100864

$208.62

50

GREY FRONT DECK - Call your local BRP dealership | Model-Gray-White

291003377

Unavailable

50

Yellow Front Deck | Model Color Sunburst Yellow

291003819

$238.03

50

White Front Deck | Model Color Bright White

291003820

$238.03

50

MAGENTA FRONT DECK - Call your local BRP dealership | Model-Magenta-White

291003821

Unavailable

50

Orange Front Deck | Model-Orange-White

291003822

$228.33

51

Deep Black, Glove Box Cover

291003378

$51.32

52

Front Bumper

291004567

$94.87

53

Black, LH Rear Bumper

291004568

$29.22

54

Black, RH Rear Bumper

291004569

$29.22

55

Central Body

291006043

$1,374.60

56

GREY REAR DECK - Call your local BRP dealership | Model-Gray-White

291003383

Unavailable

56

Yellow Rear Deck | Model Color Sunburst Yellow

291003823

$231.31

56

Bright White, Rear Deck

291004586

$207.32

56

MAGENTA REAR DECK - Call your local BRP dealership | Model-Magenta-White

291003825

Unavailable

56

Orange Rear Deck | Model-Orange-White

291003826

$238.03

57

GREY TRIM - Call your local BRP dealership | Model-Gray-White

291003386

Unavailable

57

Yellow Trim | Model Color Sunburst Yellow

291003827

$60.42

57

Front Trim Bright White

291004590

$52.62

57

MAGENTA TRIM - Call your local BRP dealership | Model-Magenta-White

291003829

Unavailable

57

ORANGE TRIM - Call your local BRP dealership | Model-Orange-White

291003830

Unavailable

58

Knee Pads LH

291004570

$90.32

59

Knee Pads RH

291004571

$63.02

61

Deep Black, Rear Access Cover

291003390

$33.12

62

Console Front | Includes 20 to 20a

291005057

$141.67

63

Black, Inferior Cover

291004575

$73.42

64

Rear Support

291003440

$20.77

67

Rear Support Mount

291003694

$16.22

68

LH Panel Trim This part replaces 291003696.

291004576

$22.07

69

Deep Black, RH Panel Trim

291004577

$22.07

70

Cap

291003702

$13.62

71

Insert

291003793

$2.44

72

Oval Washer

291003880

$1.18

73

Deep Black, LH Rear Panel Trim

291003883

$22.07

74

Deep Black, RH Rear Panel Trim

291003884

$22.07

76

U-Clamp

292000933

$32.47

78

Flat Washer M8.5 x 18

293050001

$1.29

80

Tuflok Plastic Rivet

293150230

$1.21

82

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$37.02

83

O-Ring

293300121

$6.18

85

Seal Joint

293250340

$33.77

87

Seal Joint

293250341

$33.77

90

Rubber Bumper

293830005

$5.33

90

Rubber Bumper

293830005

$5.33

92

Oval Washer

705000321

$4.64
