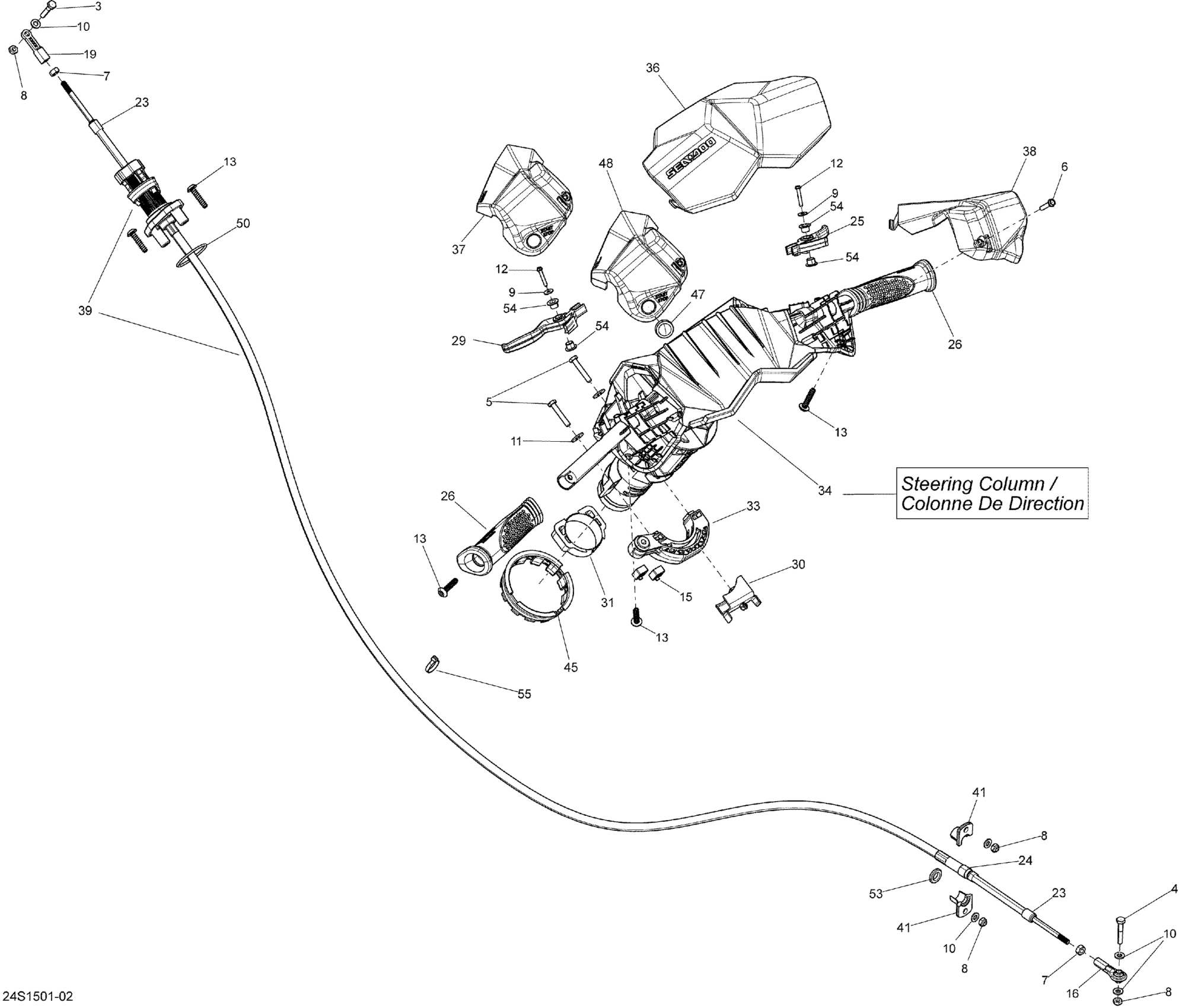

Sea-doo SPARK ACE 900 (2up), 2015 Steering _24S1501 Diagram

#

Description
Price

3

Hex. Screw M6 X 30

207063060

$1.89

4

Hex. Screw M6 X 35

207063560

$2.22

5

Hex. Screw M6 X 35

207163560

$1.49

6

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7

Hex. Nut 1/4"-28

211100056

$0.69

8

Elastic Stop Nut M6, Brass

232561200

$4.23

9

Flat Washer 4 mm, Stainless

234042600

$1.15

10

Stainless Flat Washer M6

234061600

$0.33

11

Flat Washer M6, Stainless

234062600

$0.77

12

Hex. Flange Screw K40 X 25

241142560

$2.64

13

Screw Torx M6.81 X 30

250001007

$2.54

15

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

16

Ball Joint

277000775

$51.99

19

Ball Joint

277001180

$35.99

23

Wiper Rod

277001582

$11.11

24

End Piece

277001583

$14.49

25

Throttle Handle

277001944

$38.99

26

Handlebar Grip

277002286

$19.99

29

Reverse Handle

277001945

$43.99

30

Spacer

277001654

$15.99

31

Wear Ring

277002318

$15.99

33

Support Ass'y | Includes 460 to 460b

277002179

$22.49

34

Steering

277001952

$222.49

36

Bright White, Steering Pad

277001786

$28.99

37

Deep Black, LH Cover

277001787

$19.99

38

Deep Black, RH Cover

277001788

$19.99

39

Steering Cable | Includes 540 to 540c

277002065

$259.49

41

Ring Halves

277001856

$12.99

45

Wear Ring

277001874

$12.17

47

Red, Knob Switch

277001887

$9.69

48

Deep Black, LH Cover

277001900

$19.99

50

O-Ring

293300176

$1.36

53

Rubber Washer

293830063

$1.90

54

Bushing

293900091

$4.52

55

Tie-Rap 180 mm

414115200

$0.11
