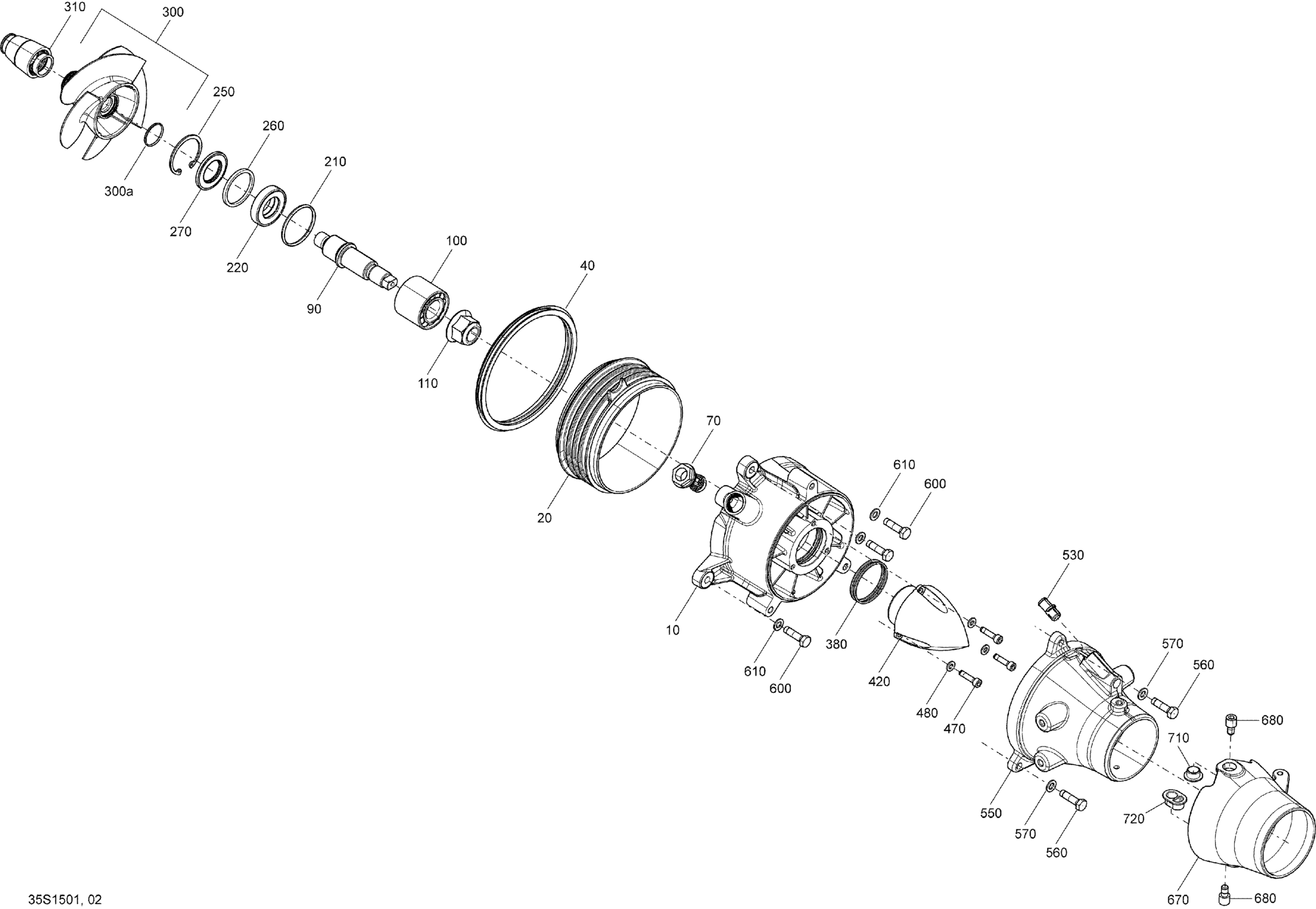

Sea-doo SPARK ACE 900 (2up), 2015 Pump _35S1501 Diagram

#

Description
Price

10

Impeller Housing

267000856

$219.02

20

Wear Ring

267000925

$65.62

40

Neoprene Seal

293200134

$12.49

70

Plug | Includes 370z to 370z1

267000282

$14.27

90

Impeller Shaft

267000581

$94.22

100

Conical Bearing

267000583

$66.39

110

Elastic Flange Nut M20

250100104

$9.71

210

O-Ring

293300090

$5.97

220

Seal

271002071

$26.62

250

Circlip

293370038

$7.12

260

Spacer

271001393

$6.12

270

Oil Seal

293200089

$15.57

300

Impeller Ass'y | Includes 1160 to 1160c

267001070

$317.17

300a

O-Ring

293300114

$12.97

310

Boot Impeller | Includes 1170 to 1170b

267000829

$17.52

380

O-Ring

293300096

$0.83

420

Impeller Cover

267000769

$16.22

470

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

480

Stainless Flat Washer M6

234061600

$0.25

530

Siphon Tube

267000782

$4.89

550

Venturi

267000909

$150.12

560

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

570

Flat Washer M8, Stainless

234080600

$1.25

600

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

610

Flat Washer M8, Stainless

234080600

$1.25

670

Nozzle

267000705

$60.42

680

Socket Head Screw M8 X 13

268000141

$6.84

710

Venturi Bushing

293900007

$3.71

720

Plastic Bushing

293900010

$7.15
