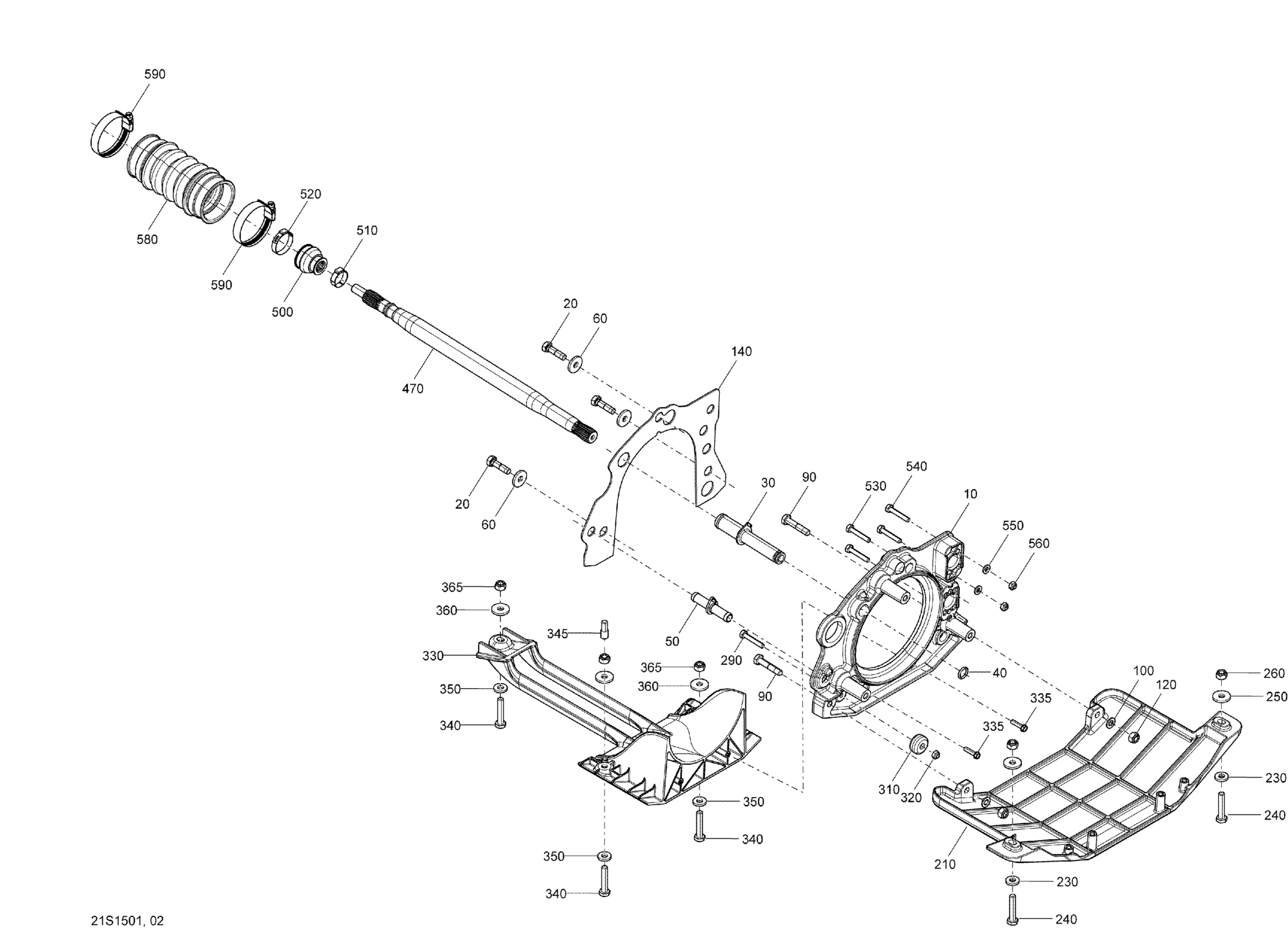

Sea-doo SPARK ACE 900 (2up), 2015 Propulsion _21S1501 Diagram

#

Description
Price

10

PUMP SUPPORT - Call your local BRP dealership

271001886

Unavailable

20

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

30

Water Straight Fitting, In

271001818

$13.99

40

O-Ring

293300006

$4.44

50

Water Straght Fitting, Out

271001817

$13.99

60

Flat Washer

279000336

$11.57

90

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

100

Flat Washer M8, Stainless

234080600

$1.48

120

Hex. Elastic Nut M8 Brass

232581200

$2.22

140

Watertight Seal

271001811

$23.99

210

Riding Plate

271001840

$147.99

230

Flat Washer M8.5 x 18

293050001

$3.07

240

Hex. Screw M8 X 40

207184060

$2.22

250

Flat Washer

279000336

$11.57

260

Hex. Elastic Nut M8 Brass

232581200

$2.22

290

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

310

Anode Zinc

271001920

$15.99

320

Elastic Stop Nut M6, Brass

232561200

$4.23

330

Pump Grate

271002011

$54.99

335

Hex. Screw 10-14 X 7/8”

211000023

$3.59

340

Hex. Screw M8 X 40

207184060

$2.22

345

Cap Plug

293000105

$4.39

350

Flat Washer M8.5 x 18

293050001

$3.07

360

Flat Washer

279000336

$11.57

365

Hex. Elastic Nut M8 Brass

232581200

$2.22

470

Drive Shaft

271002072

$317.99

500

Protector Sleeve Kit | Includes 300 TO 320

295501148

$13.99

510

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

520

Oetiker Gear Clamp

509000181

$4.44

530

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

540

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

550

Stainless Flat Washer M6

234061600

$0.33

560

Elastic Stop Nut M6, Brass

232561200

$4.23

580

Bellow

271001921

$21.99

590

Norma Clamp

293650079

$11.60
