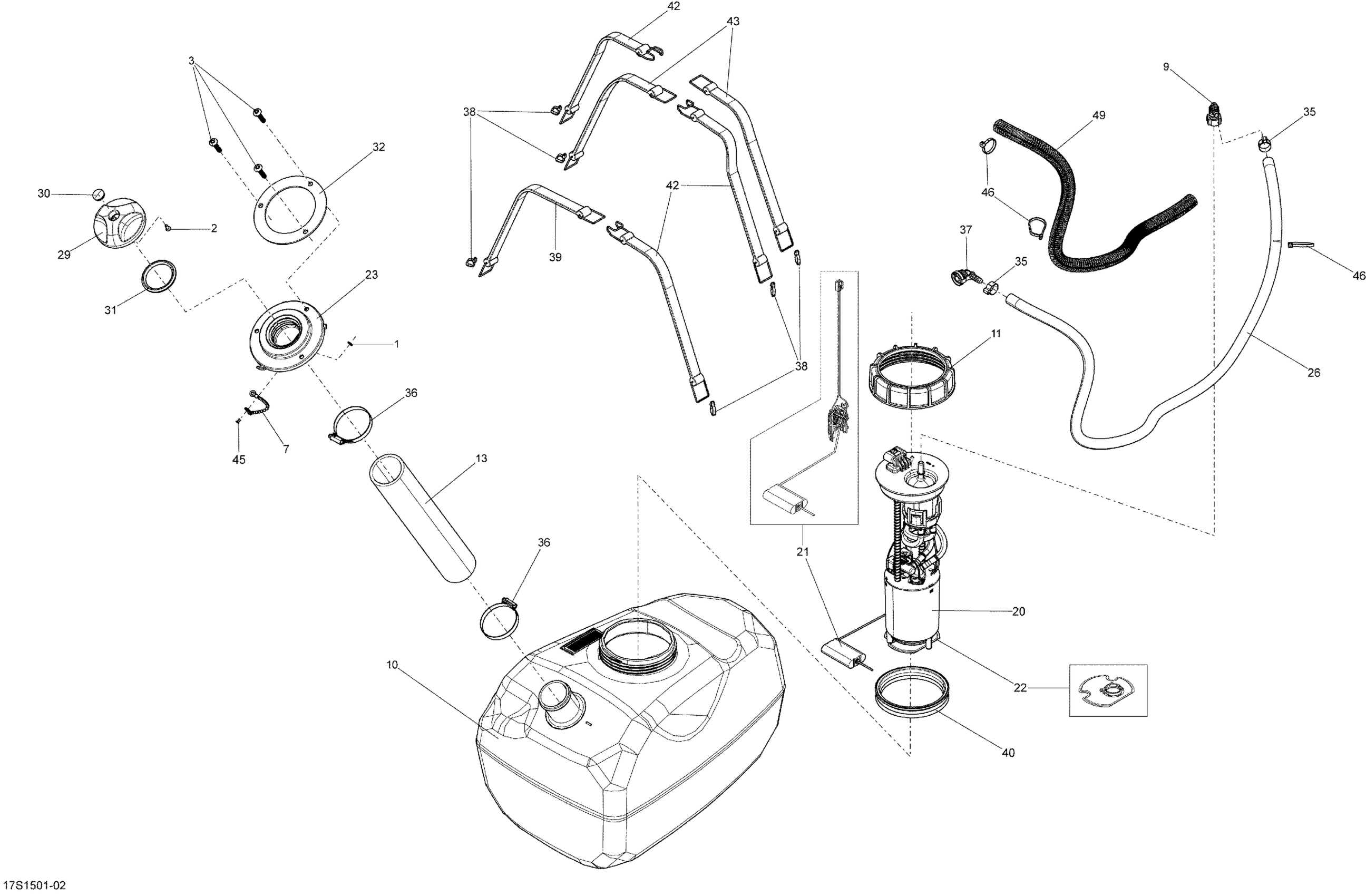

Sea-doo SPARK ACE 900 (2up), 2015 Fuel System _17S1501 Diagram

#

Description
Price

1

Flat Washer M3, Stainless

234032600

$0.55

2

Screw K40 X 10

241140060

$1.48

3

Screw Torx M6.81 X 30

250000626

$3.91

7

Fuel Cap Chain

275500974

$19.99

9

Quick Disconnect

275500921

$16.49

10

Fuel Tank

275500982

$349.99

11

Special Nut M130

250100062

$21.99

13

Filler Neck Hose

275500935

$83.99

20

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

21

Sensor Lever

275500780

$224.99

22

Fuel Filter

270600113

$33.99

23

Filler Neck

275500857

$17.39

26

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

29

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$59.49

30

Black, Snap Cap

293000034

$9.39

31

Gasket

293250417

$3.91

32

Gasket

293250298

$16.34

35

Crimp Clamp

293650053

$3.09

36

Norma Clamp

293650081

$12.18

37

Elbow Fitting 90°

293710105

$14.22

38

Tie-Rap 180 mm

414115200

$0.11

39

Fuel Tank Strap

293850093

$21.99

40

Gasket

293250173

$18.49

42

Fuel Tank Strap

293850094

$22.49

43

Fuel Tank Strap

293850095

$19.99

45

Pop Rivet 1/8"

390407900

$1.49

46

Tie-Rap 180 mm

414115200

$0.11

49

Tubing 16 Mm 1000Mm Long

219704408

$7.49
