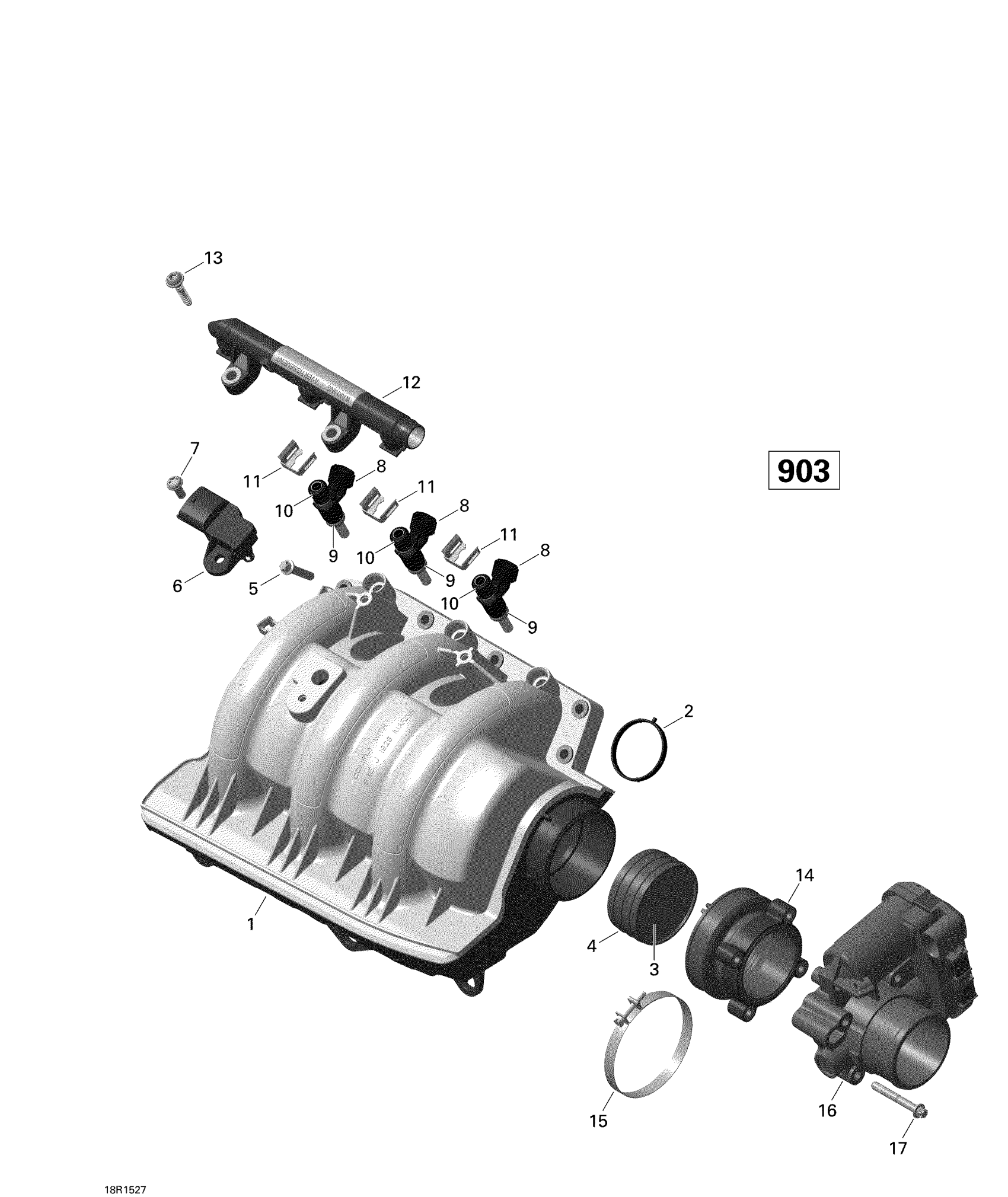

Sea-doo SPARK ACE 900 (2up), 2015 Air Intake Manifold And Throttle Body _18R1527 Diagram

Description

Price

Air Intake Manifold Ass'y | Includes 1 to 4

420867365

Unavailable

Gasket | Included in gasket kit

420431662

$10.33

Flame Arrester

420667710

$264.99

Profile Ring

420201210

$19.99

Torx Flange Screw M6 X 30

420840663

$5.82

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641588

$2.11

Injection Valve Ass'y | Includes 18 to 20

420874847

$137.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

Injector Clip

420853030

$3.09

Fuel Rail

420874965

$13.49

Torx Screw 6X30

420441575

$3.06

Intake Neck

420867092

$42.99

Hose Clamp

420251483

$17.05

Throttle Body

420893144

$409.99

Torx Flange Screw M6 X 50

420441588

$4.44
