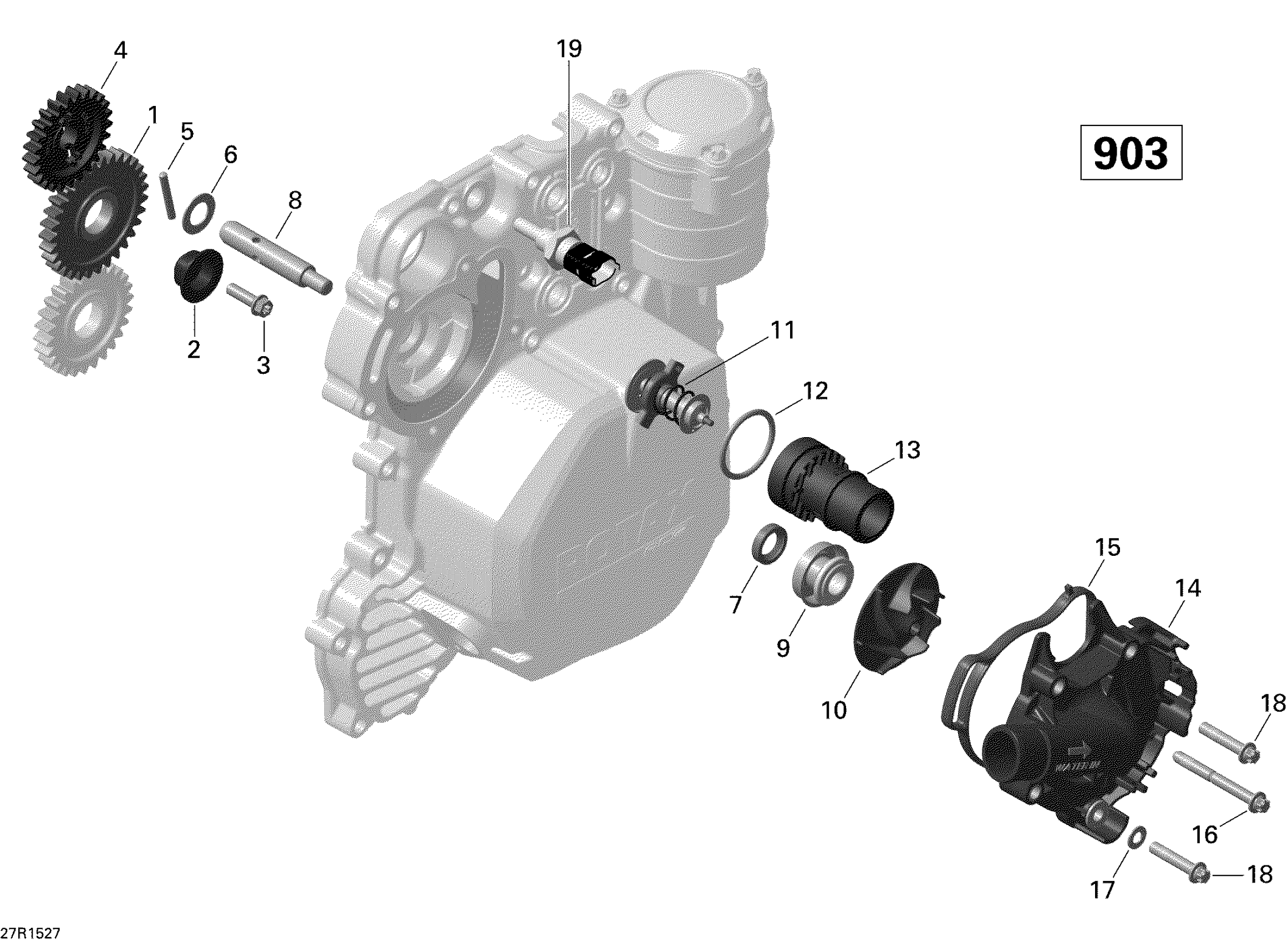

Sea-doo SPARK ACE 900 (2up), 2015 Engine Cooling _27R1527 Diagram

#

Description
Price

1

Idle Gear, 31 Teeth

420835067

$23.49

2

Spacer

420947394

$24.99

3

Torx Flange Screw M6 X 20

420440207

$3.06

4

Water Pump Gear

420835230

$7.65

5

Needle Pin

420232431

$4.39

6

Thrust Washer

420827261

$7.51

7

Oil Seal

420931802

$7.65

8

Waterpump Shaft

420820150

$25.99

9

Seal

420850946

$33.99

10

Water Impeller

420222880

$7.52

11

Thermostat 80°

420822651

$37.99

12

Water Pump Housing O-Ring

420950896

$11.59

13

Thermostat Cover

420922155

$9.64

14

Water Pump Housing

420922293

$71.99

15

Water Pump Housing Gasket

420431682

$19.49

16

Torx Flange Screw M6 X 55

420840673

$5.82

17

Sealing Washer

404146600

$2.97

18

Torx Flange Screw M6 X 30

420840663

$5.82

19

Temperature Sensor

278002895

$39.99
