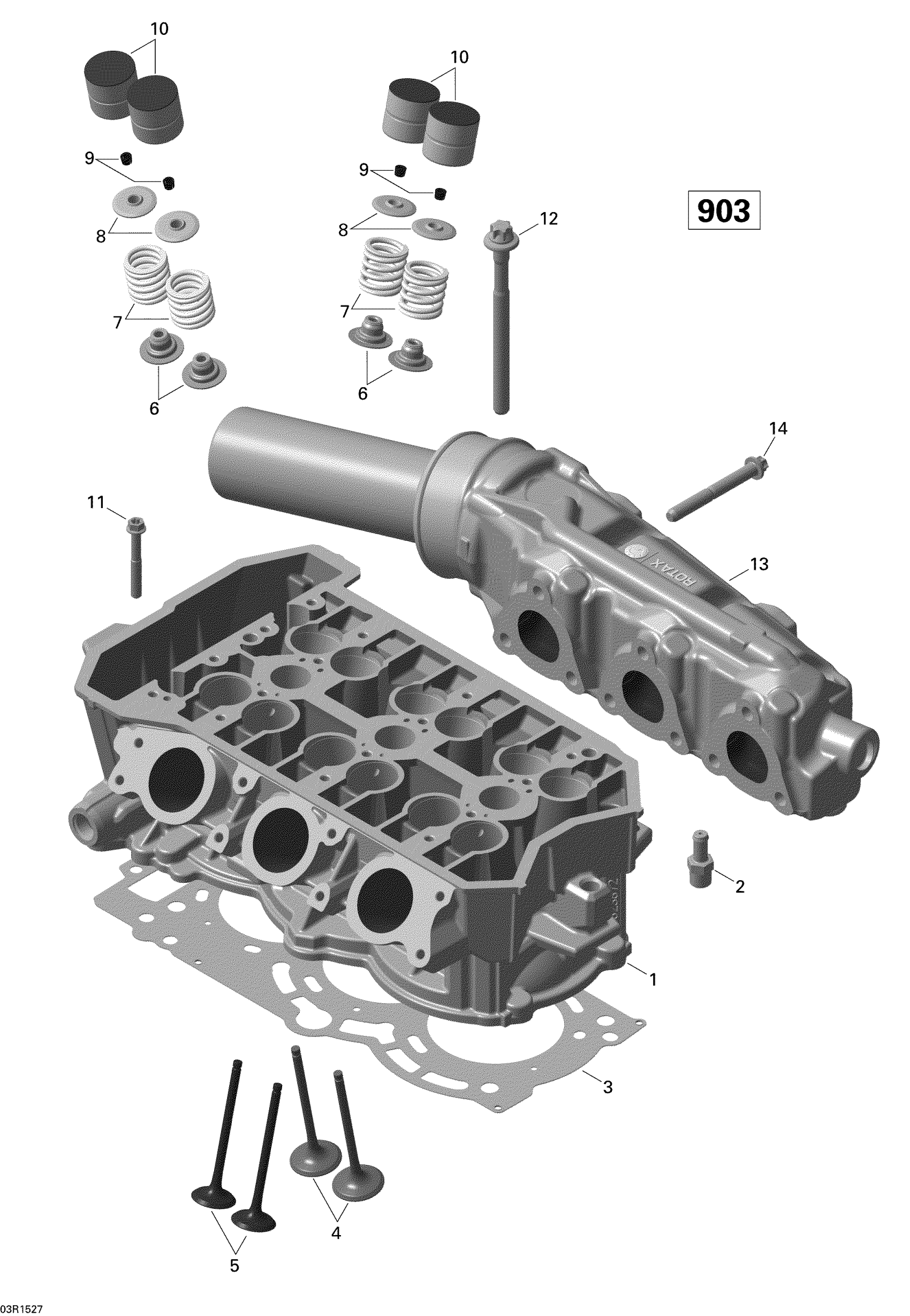

Sea-doo SPARK ACE 900 (2up), 2015 Cylinder Head _03R1527 Diagram

#

Description

Price

1

Cylinder Head Ass'y

420213265

$848.48

2

Hose Nipple

420441420

$10.58

3

Cylinder Head Gasket

420431813

$37.02

4

Intake Valve 29MM

420855131

$23.10

5

Exhaust Valve 25 MM This part replaces 420855148.

420855146

Unavailable

6

Valve Stem Seal

420431671

$4.41

7

Valve Spring

420939540

$6.18

8

Valve Spring Retainer

420855150

$3.61

9

Cotter Valve

420254630

$0.83

10

Valve Lifter Bucket

420855165

$38.32

11

Torx Flange Screw M6 X 45

420440324

$0.81

12

Torx Flange Screw M9 X 113

420940945

$10.41

13

Exhaust Manifold

420673511

$343.17

14

Torx Flange Screw M8 x 65

420640333

$4.39
