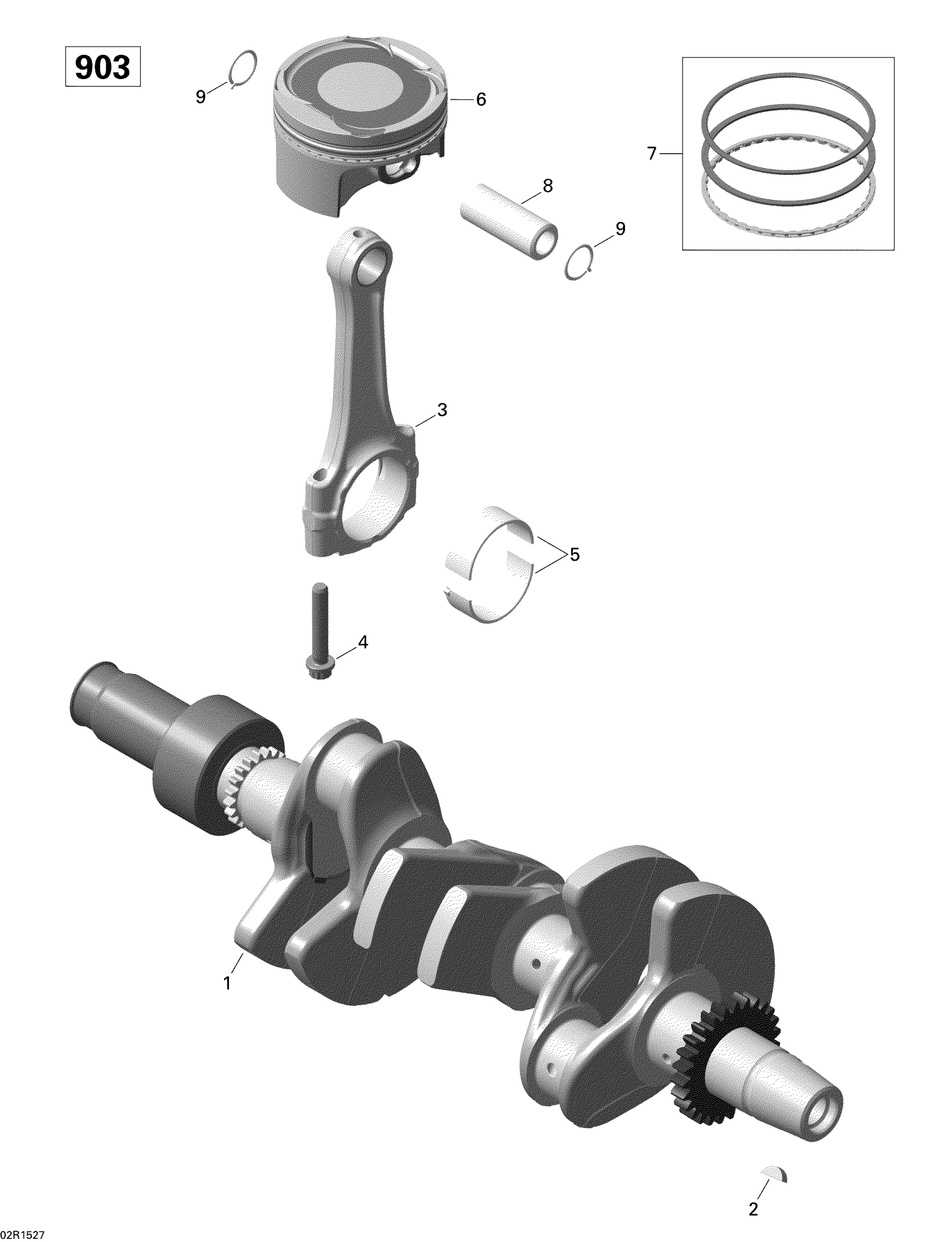

Sea-doo SPARK ACE 900 (2up), 2015 Crankshaft And Pistons _02R1527 Diagram

#

Description
Price

1

Crankshaft Ass'Y This part replaces 420819809.

420819801

$791.02

2

Woodruff Key

420246571

$3.61

3

Connecting Rod Ass'y

420917703

$218.37

4

Connecting rod Screw M7 X 1

420641794

$12.97

5

Plain Bearing

420933191

$9.54

6

Piston Ass'y, 73.958 mm

420892821

$168.97

7

Piston Ring Set

420892824

$51.97

8

Piston Pin

420916510

$21.42

9

Piston Circlip

420845810

$4.33
