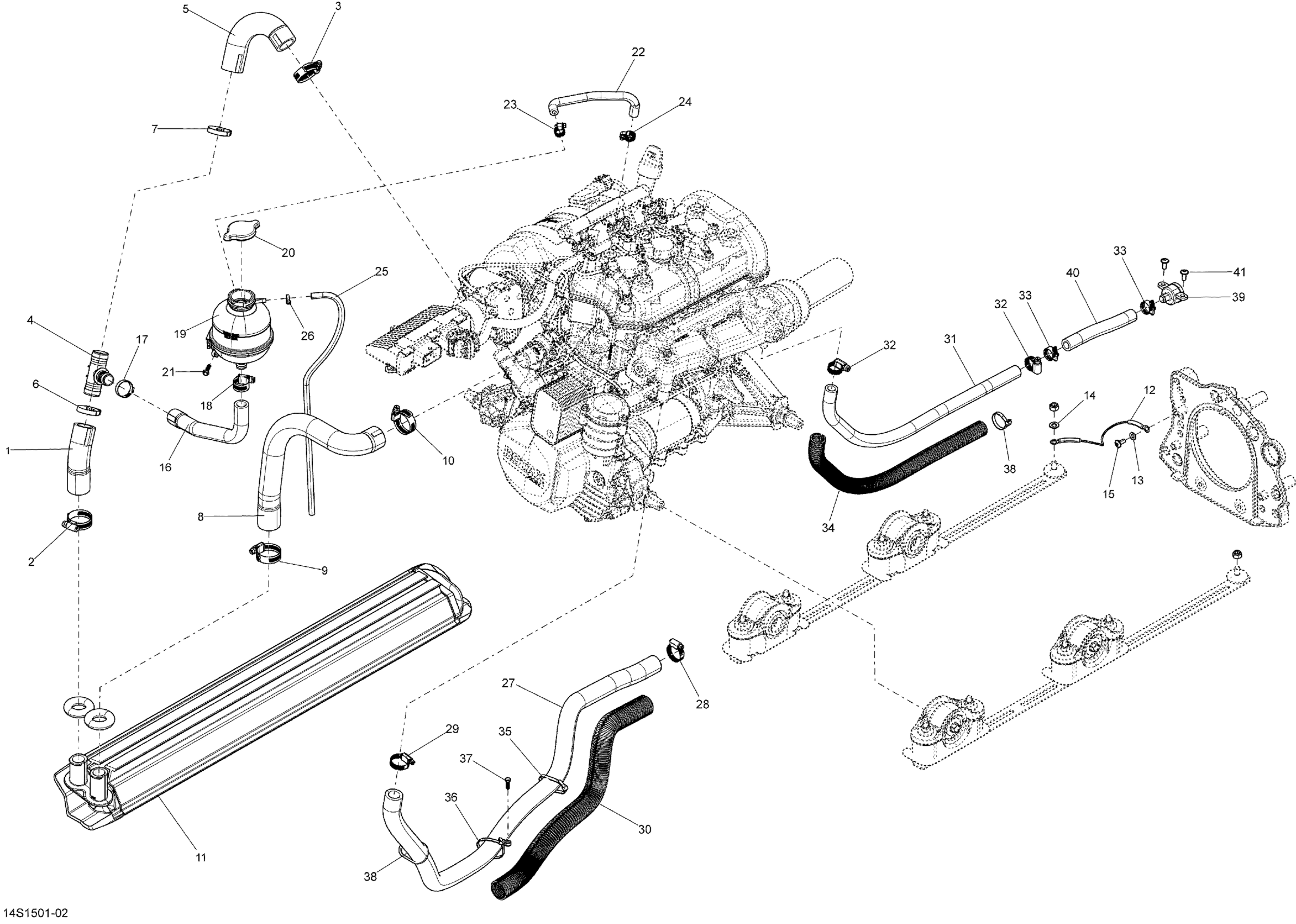

Sea-doo SPARK ACE 900 (2up), 2015 Cooling System _14S1501 Diagram

#

Description
Price

1

Radiator Hose

276000292

$32.28

2

Tridon Gear Clamp

293650185

$10.91

3

Tridon Gear Clamp

293650185

$10.91

4

T-Fitting

509000372

$7.87

5

Hose

276000301

$59.97

6

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

7

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

8

Cooling Hose

276000449

$59.97

9

Tridon Gear Clamp

293650185

$10.91

10

Tridon Gear Clamp

293650185

$10.91

11

Heat Exchanger

276000389

$211.87

12

Ground Wire

278003272

$16.22

13

Flat Washer M8, Stainless

234080600

$1.25

14

Stainless Flat Washer M6

234061600

$0.25

15

Torx Screw M6 X 14

250000384

$6.15

16

Hose

276000290

$23.82

17

Crimp Clamp

293650099

$4.60

18

Tridon Clamp

293650016

$8.57

19

Coolant Tank

509000802

$59.12

20

Radiator Pressure Cap

509000180

$11.69

21

Hex. Flange Screw K50 X 20

241152060

$1.57

22

Formed Hose

276000316

$23.05

23

Tridon Gear Clamp

293650170

$1.74

24

Tridon Gear Clamp

293650170

$1.74

25

Polyurethane Hose 10000Mm Long

219704410

$46.12

26

Tie Wrap 94 mm | 4X4

293750001

$0.83

27

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

28

Tridon Gear Clamp

293650051

$3.61

29

Tridon Gear Clamp

293650051

$3.61

30

Tubing 25 MM 1000MM Long

219704402

$12.69

31

Was 276000001 Hose 12.5 mm

219704394

$42.87

32

Tridon Gear Clamp

293650172

$2.68

33

Tridon Gear Clamp

293650172

$2.68

34

Was 409901600 Tubing 19mm

219704398

$89.97

35

Tie Wrap 368 mm

293750008

$0.85

36

Tie Rap 305 mm with Screw Mount Hole #10

293750049

$2.75

37

Hex. Screw 10-14 X 7/8”

211000023

$2.91

38

Tie-Rap 180 mm

414115200

$0.09

39

Drain Plug Neck

269800521

$8.71

40

Was 276000001 Hose 12.5 mm

219704394

$42.87

41

Torx Screw M6 X 14

250000384

$6.15

33

Tridon Gear Clamp

293650172

$2.68
