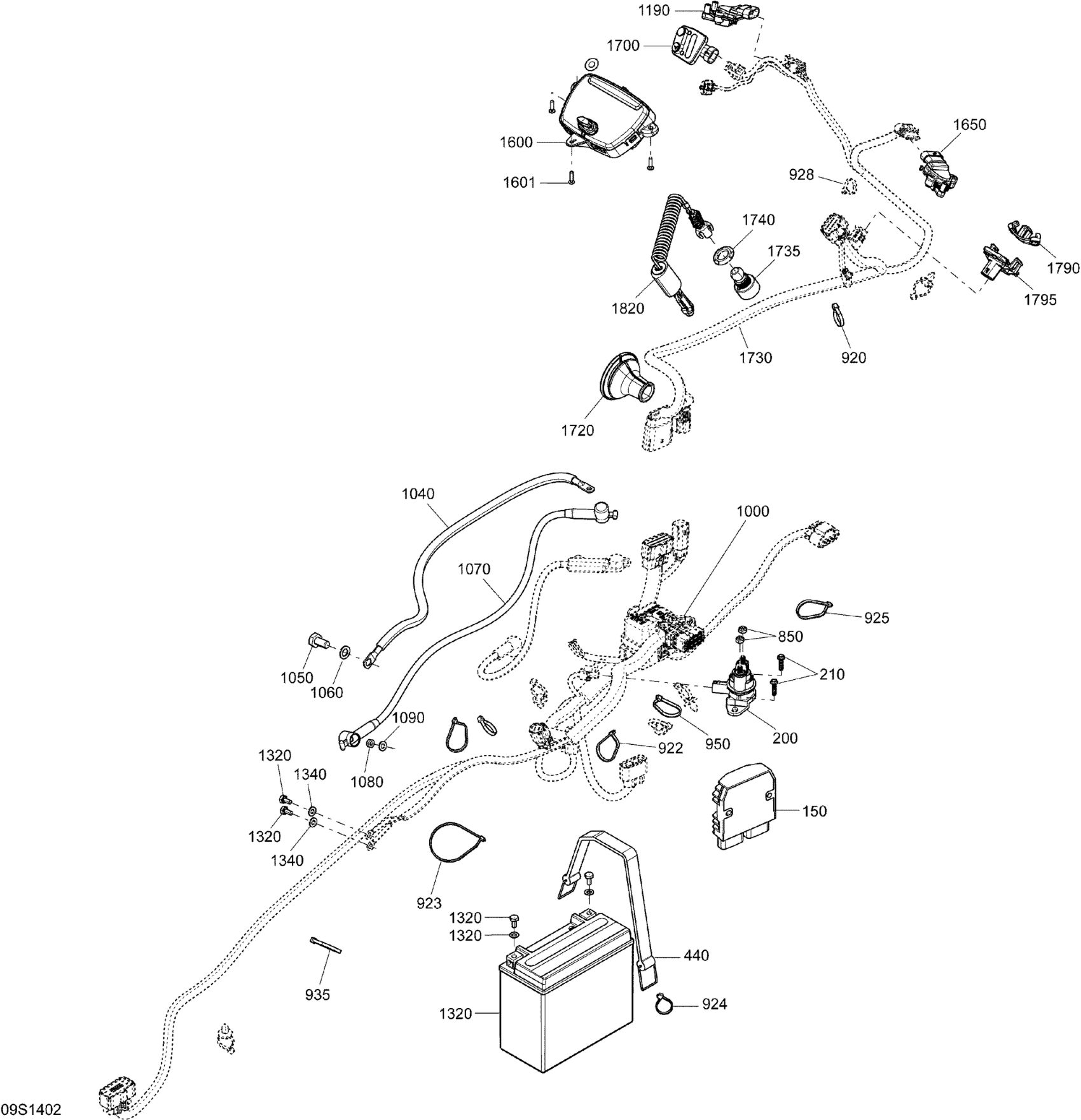

Sea-doo SPARK ACE 900 (2up), 2014 Electrical System _09S1402 Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

200

Starter Relay

278003012

$40.27

210

Hex. Flange Screw K50 X 20

241152060

$1.81

340

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

440

Fuel Tank Strap

293850093

$19.37

850

Elastic Stop Nut M6, Brass

232561200

$4.03

920

Tie-Rap 180 mm

414115200

$0.10

921

Tie-Rap 180 mm

414115200

$0.10

922

Tie-Rap 180 mm

414115200

$0.10

923

Tie-Rap 180 mm

414115200

$0.10

924

Tie-Rap 180 mm

414115200

$0.10

925

Tie-Rap 180 mm

414115200

$0.10

928

Tie-Rap 180 mm

414115200

$0.10

930

Tie-Rap 180 mm

414115200

$0.10

950

Tie-Rap 180 mm

414115200

$0.10

1000

Main Harness

278002648

$591.01

1000

Main Harness

278002648

$591.01

1040

Ground Cable

278003271

$35.79

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

1060

Flat Washer 10 mm, Stainless

234000600

$1.22

1070

Starter Cable

278003268

$55.94

1080

Elastic Stop Nut M6, Brass

232561200

$4.03

1090

Stainless Flat Washer M6

234061600

$0.28

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

1340

Stainless Flat Washer M6

234061600

$0.28

1600

LCD Gauge | Models without iBR

278003404

$573.85

1600

LCD Gauge | Models without iBR

278003404

$573.85

1601

Flange Torx Screw K40 X 16

250000287

$2.00

1650

Throttle Position Sensor

278002283

$104.99

1700

Switch

278002604

$116.39

1720

Cable Grommet

293720092

$11.81

1730

Steering Cable Ass'y

278002956

Unavailable

1730

Steering Cable Ass'y

278002956

Unavailable

1735

Emergency Switch Ass'y, NOT RFID

278002677

$49.22

1740

Safety Nut (DESS Switch)

278002963

$3.12

1790

O.T.A.S Actuator

278003537

$38.03

1795

O.T.A.S. Sensor

278003008

$99.22

1820

Safety Lanyard Ass'y, NOT RFID

278003410

$67.13
