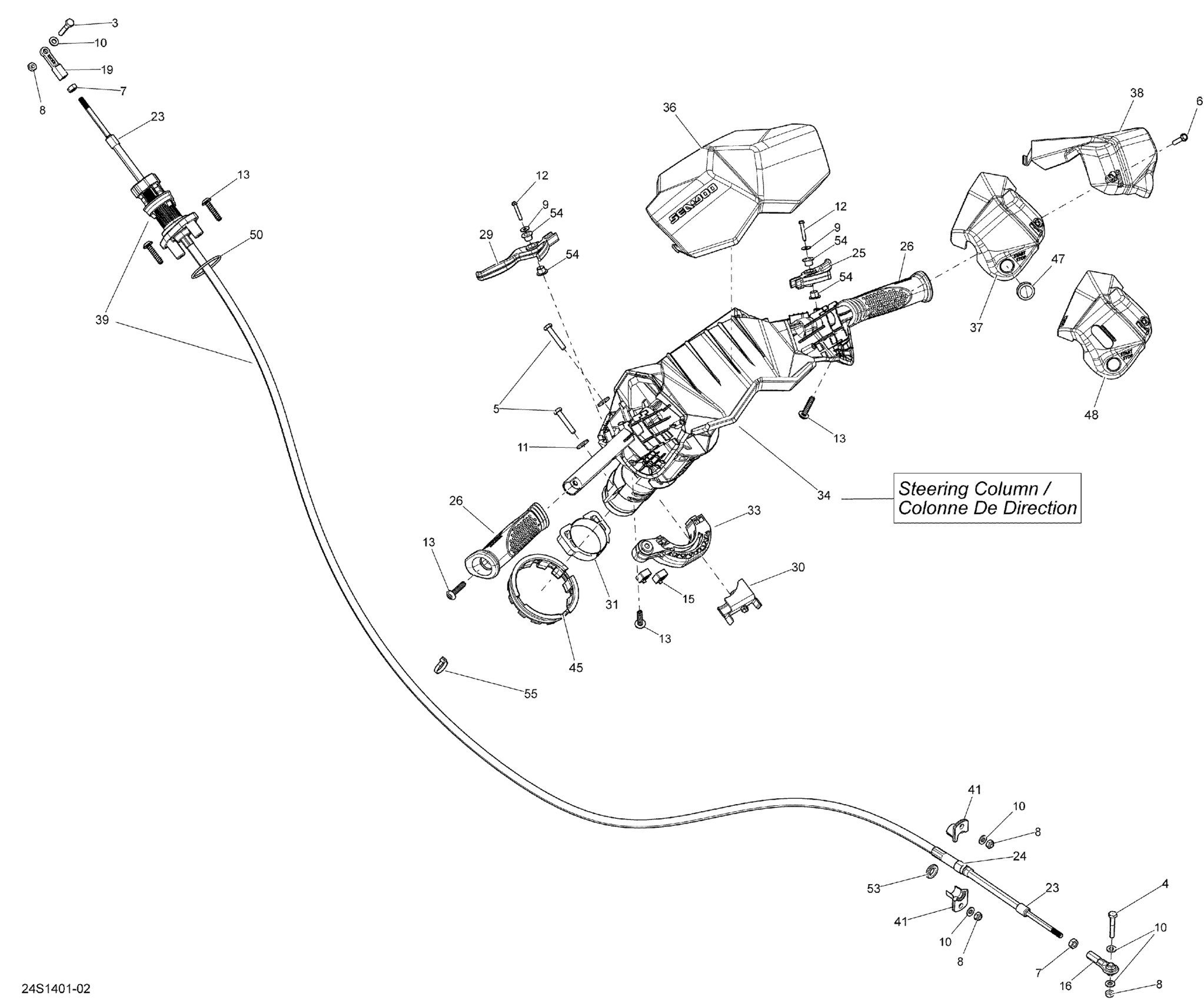

Sea-doo SPARK ACE 900 (2up), 2014 Steering _24S1402 Diagram

#

Description
Price

3

Hex. Screw M6 X 30

207063060

$1.73

4

Hex. Screw M6 X 35

207063560

$2.12

5

Hex. Screw M6 X 35

207163560

$1.34

6

Hex. Screw 10-14 X 7/8”

211000023

$3.34

7

Hex. Nut 1/4"-28

211100056

$0.64

8

Elastic Stop Nut M6, Brass

232561200

$4.03

9

Flat Washer 4 mm, Stainless

234042600

$1.06

10

Stainless Flat Washer M6

234061600

$0.28

11

Flat Washer M6, Stainless

234062600

$0.73

12

Hex. Flange Screw K40 X 25

241142560

$2.49

13

Screw Torx M6.81 X 30

250001007

$1.85

15

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

16

Ball Joint

277000775

$46.24

19

Ball Joint

277001180

$32.06

23

Wiper Rod

277001582

$10.13

24

End Piece

277001583

$12.79

25

Throttle Handle

277001944

$35.04

26

Handlebar Grip

277002286

$17.13

29

Not Available As Spare Parts

XXX

Unavailable

30

Spacer

277001654

$13.09

31

Wear Ring

277002318

$14.27

33

Support Ass'y | Includes 460 to 460b

277002179

$20.12

34

Steering

277001952

$206.69

36

Bright White, Steering Pad

277001786

$25.34

37

Deep Black, LH Cover

277001787

$17.88

38

Deep Black, RH Cover

277001788

$17.88

39

Steering Cable | Includes 540 to 540c

277002065

$241.76

41

Ring Halves

277001856

$11.31

45

Wear Ring

277001874

$11.18

47

Red, Knob Switch

277001887

$8.66

48

Not Available As Spare Parts

XXX

Unavailable

50

O-Ring

293300176

$1.07

53

Rubber Washer

293830063

$1.73

54

Bushing

293900091

$3.84

55

Tie-Rap 180 mm

414115200

$0.10
