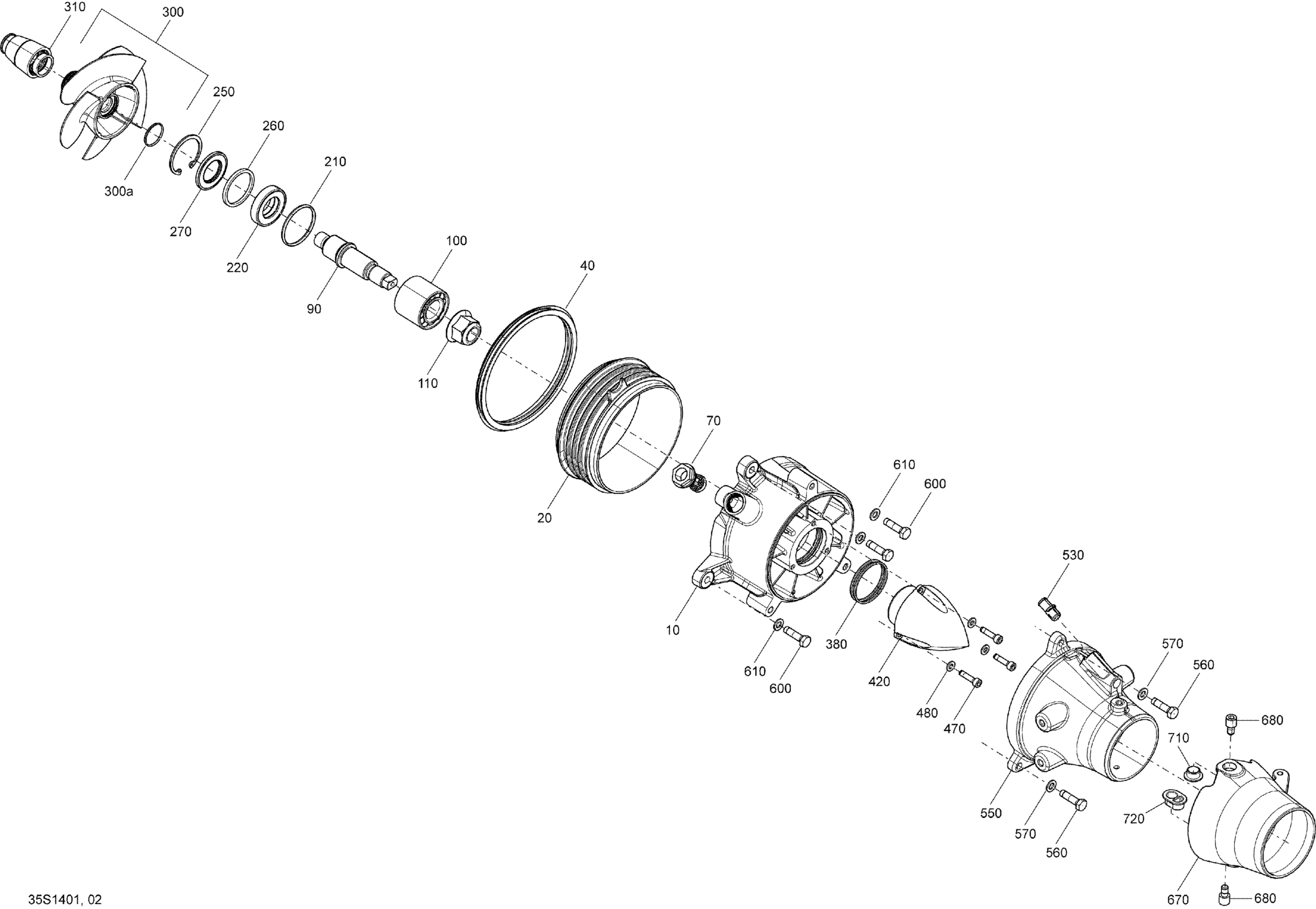

Sea-doo SPARK ACE 900 (2up), 2014 Pump _35S1402 Diagram

#

Description
Price

10

Impeller Housing

267000856

$251.46

20

Wear Ring

267000925

$75.34

40

Neoprene Seal

293200134

$14.34

70

Plug | Includes 370z to 370z1

267000282

$16.39

90

Impeller Shaft

267000581

$108.18

100

Conical Bearing

267000583

$66.39

110

Elastic Flange Nut M20

250100104

$11.15

210

O-Ring

293300090

$6.85

220

Seal

271002071

$30.57

250

Circlip

293370038

$8.18

260

Spacer

271001393

$7.03

270

Oil Seal

293200089

$17.88

300

Impeller Ass'y | Includes 1160 to 1160c

267001070

$364.15

300a

O-Ring

293300114

$14.90

310

Boot Impeller | Includes 1170 to 1170b

267000829

$20.12

380

O-Ring

293300096

$0.96

420

Impeller Cover

267000769

$18.63

470

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

480

Stainless Flat Washer M6

234061600

$0.28

530

Siphon Tube

267000782

$5.61

550

Venturi

267000909

$172.36

560

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

570

Flat Washer M8, Stainless

234080600

$1.43

600

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

610

Flat Washer M8, Stainless

234080600

$1.43

670

Nozzle

267000705

$69.37

680

Socket Head Screw M8 X 13

268000141

$7.85

710

Venturi Bushing

293900007

$4.25

720

Plastic Bushing

293900010

$8.21
