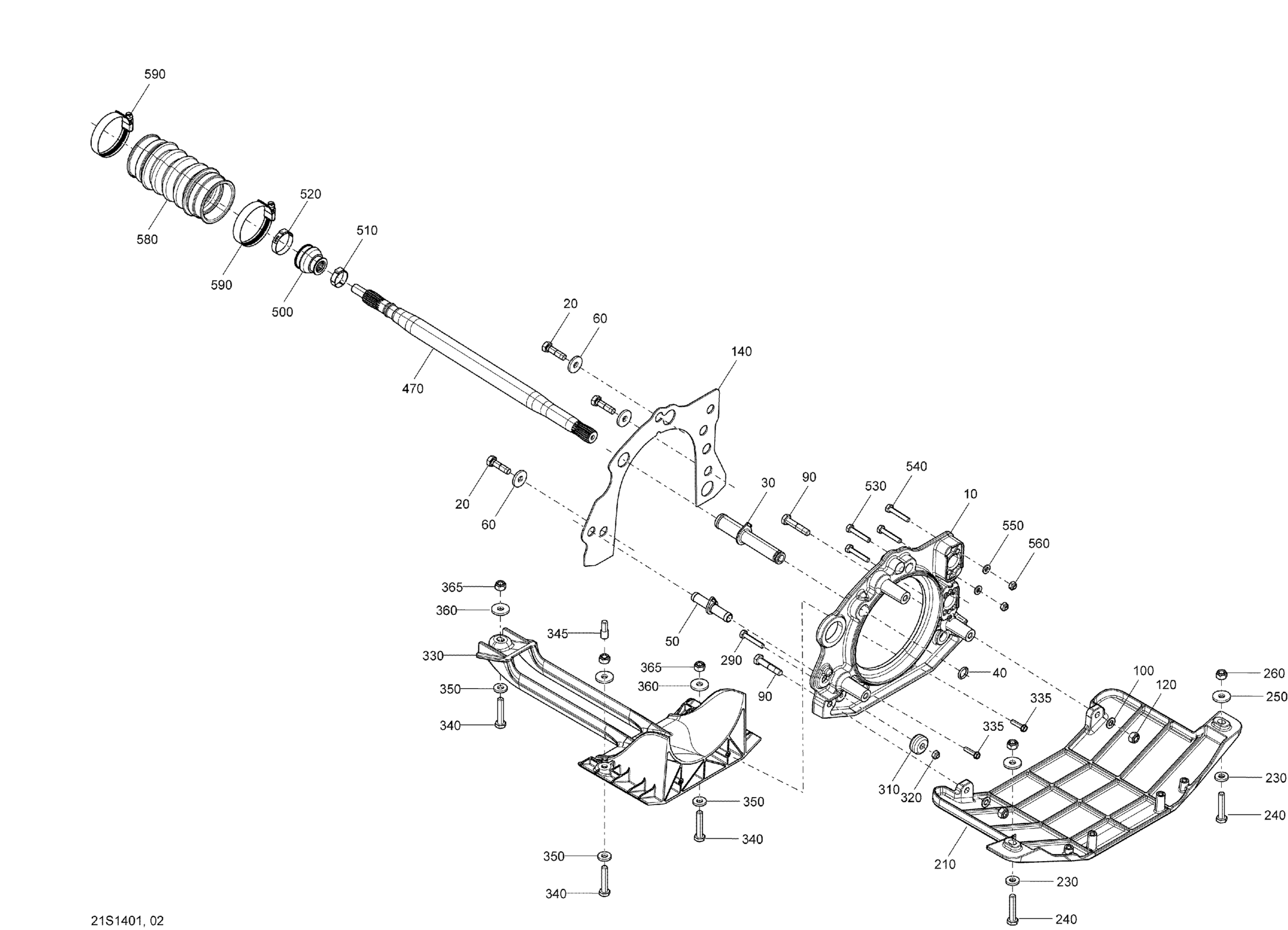

Sea-doo SPARK ACE 900 (2up), 2014 Propulsion _21S1402 Diagram

#

Description
Price

10

PUMP SUPPORT - Call your local BRP dealership

271001886

Unavailable

20

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.73

30

Water Straight Fitting, In

271001818

$12.79

40

O-Ring

293300006

$4.15

50

Water Straght Fitting, Out

271001817

$12.79

60

Flat Washer

279000336

$9.58

90

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.36

100

Flat Washer M8, Stainless

234080600

$1.43

120

Hex. Elastic Nut M8 Brass

232581200

$1.48

140

Watertight Seal

271001811

$22.36

210

Riding Plate

271001840

$134.30

230

Flat Washer M8.5 x 18

293050001

$1.48

240

Hex. Screw M8 X 40

207184060

$2.12

250

Flat Washer

279000336

$9.58

260

Hex. Elastic Nut M8 Brass

232581200

$1.48

290

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

310

Anode Zinc

271001813

$15.64

320

Elastic Stop Nut M6, Brass

232561200

$4.03

330

Pump Grate

271002011

$49.22

335

Hex. Screw 10-14 X 7/8”

211000023

$3.34

340

Hex. Screw M8 X 40

207184060

$2.12

345

Cap Plug

293000105

$3.88

350

Flat Washer M8.5 x 18

293050001

$1.48

360

Flat Washer

279000336

$9.58

365

Hex. Elastic Nut M8 Brass

232581200

$1.48

470

Drive Shaft

271002072

$295.49

500

Protector Sleeve Kit | Includes 300 TO 320

295501148

$12.39

510

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

520

Oetiker Gear Clamp

509000181

$4.15

530

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

540

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

550

Stainless Flat Washer M6

234061600

$0.28

560

Elastic Stop Nut M6, Brass

232561200

$4.03

580

BELLOW - Call your local BRP dealership

271001760

Unavailable

590

Tridon Clamp

293650023

$11.37
