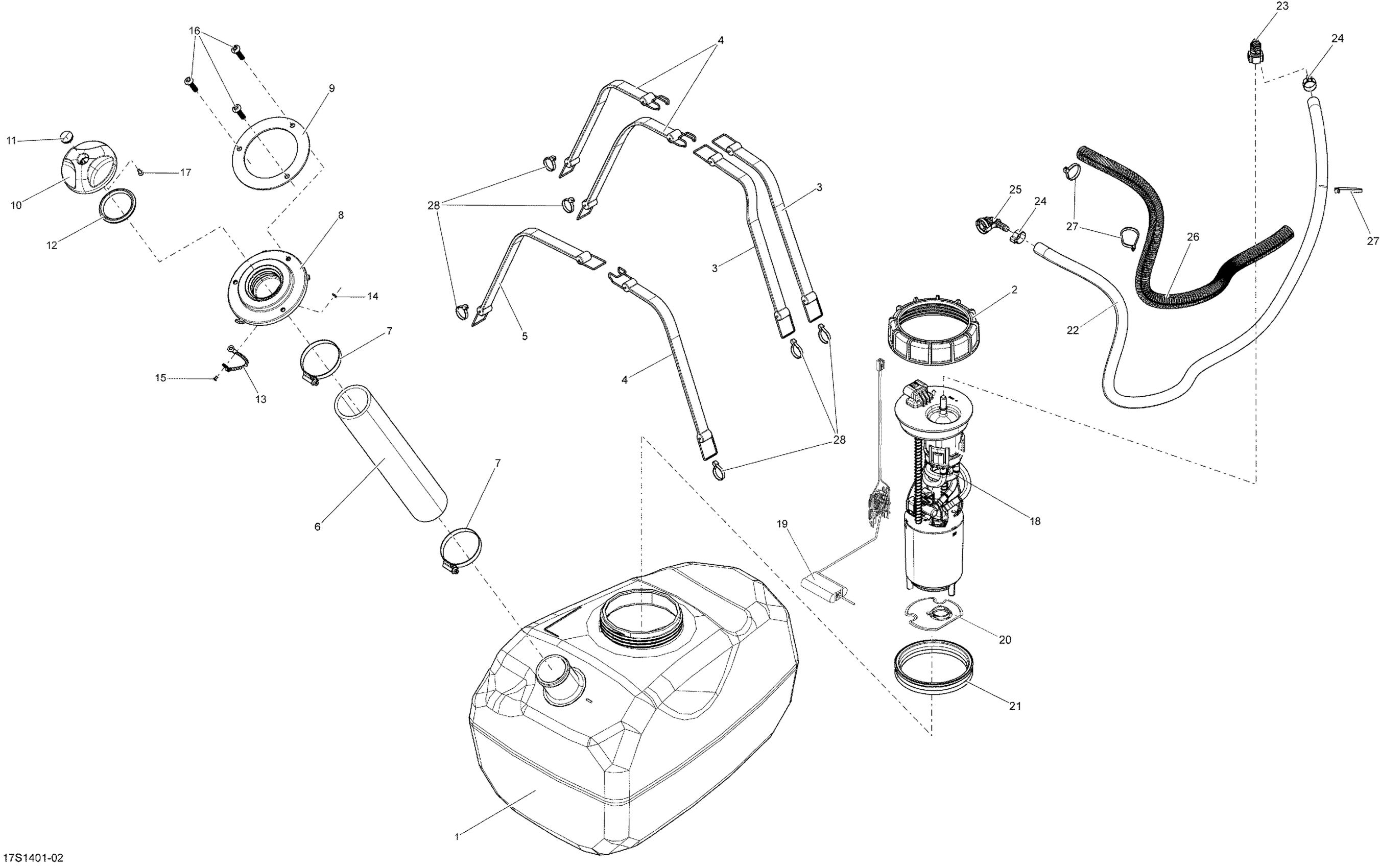

Sea-doo SPARK ACE 900 (2up), 2014 Fuel System _17S1402 Diagram

#

Description
Price

1

Fuel Tank

275500982

$311.16

2

Special Nut M130

250100062

$20.12

3

Fuel Tank Strap

293850095

$16.39

4

Fuel Tank Strap

293850094

$20.12

5

Fuel Tank Strap

293850093

$19.37

6

Filler Neck Hose

275500824

Unavailable

7

Norma Clamp

293650081

$11.33

8

Filler Neck

275500857

$14.79

9

Gasket

293250298

$14.90

10

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$55.19

11

Black, Snap Cap

293000034

$8.58

12

Gasket

293250417

$3.64

13

Fuel Cap Chain

275500974

$16.39

14

Flat Washer M3, Stainless

234032600

$0.52

15

Pop Rivet 1/8"

390407900

$1.34

16

Screw Torx M6.81 X 30

250001007

$1.85

17

Screw K40 X 10

241140060

$1.43

18

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

19

Sensor Lever

275500780

$202.21

20

Fuel Filter

270600113

$31.31

21

Gasket

293250173

$17.88

22

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

23

Quick Attach 90°

275500700

$14.48

24

Crimp Clamp

293650053

$2.78

25

Elbow Fitting 90°

293710105

$12.15

26

Tubing 16 Mm 1000Mm Long

219704408

$7.15

27

Tie-Rap 180 mm

414115200

$0.10

28

Tie-Rap 180 mm

414115200

$0.10
