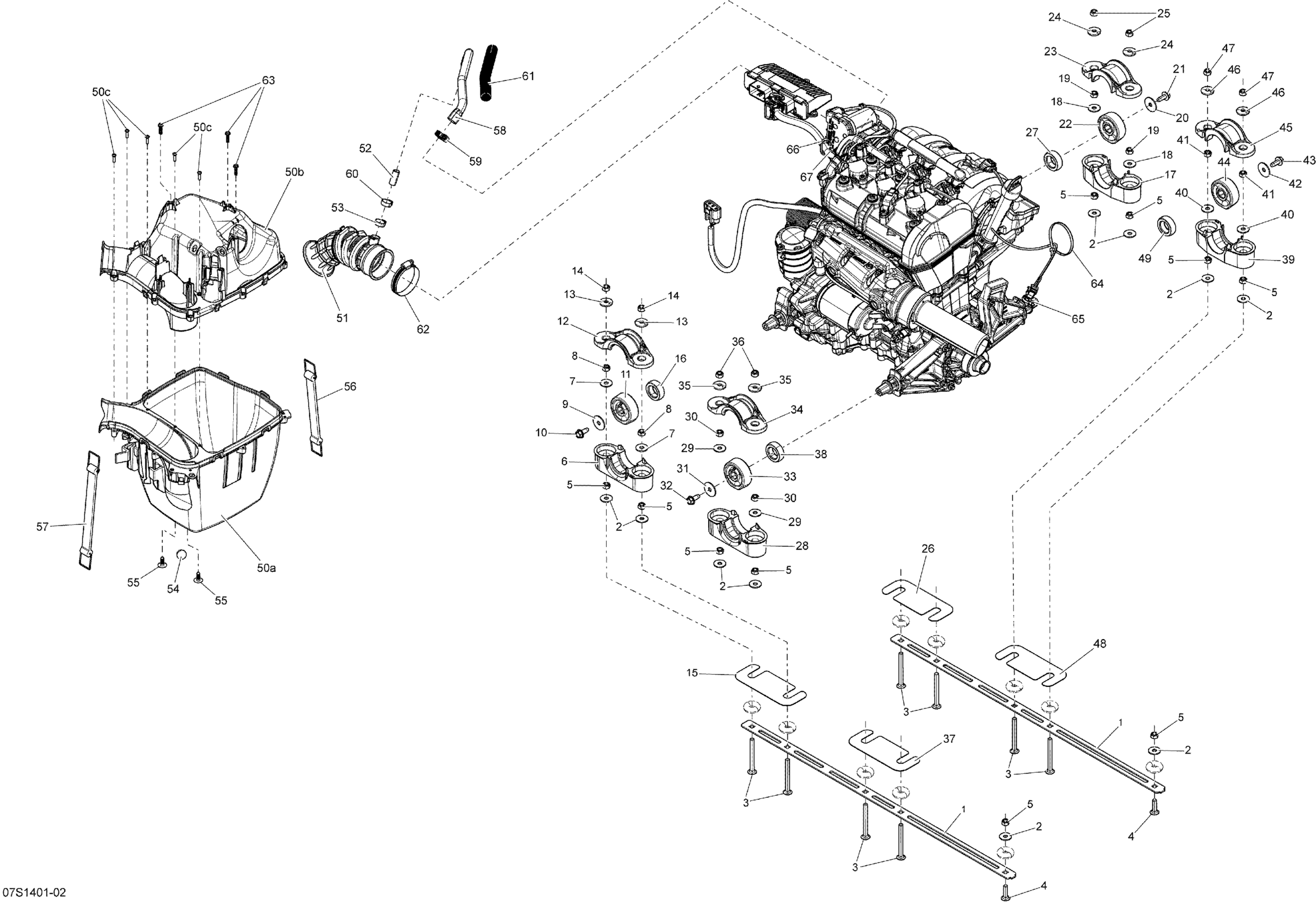

Sea-doo SPARK ACE 900 (2up), 2014 Engine And Air Intake Silencer _07S1402 Diagram

#

Description
Price

1

Retaining Plate

270000862

$19.37

2

Flat Washer 8 mm, Stainless

234082600

$2.27

3

Carriage Bolt M8 X 90

207789060

$5.12

4

Carriage Bolt M8 X 30

207783060

$3.73

5

Hex. Elastic Nut M8 Brass

232581200

$1.48

6

Mount Base

270000858

$19.37

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

Hex. Elastic Nut M8 Brass

232581200

$1.48

9

Flat Washer 8 mm

250200130

$3.00

10

Forming Hex Screw M8 X 20

250000645

$6.36

11

Rubber Mount

270000852

$20.12

12

Mount Clamp

270000859

$19.37

13

Conical Washer

250200137

$4.57

14

Hex. Elastic Nut M8 Brass

232581200

$1.48

15

Shim 1.3 mm

270000865

$8.48

16

Rubber Stopper

270000863

$7.78

17

Mount Base

270000858

$19.37

18

Flat Washer 8 mm, Stainless

234082600

$2.27

19

Hex. Elastic Nut M8 Brass

232581200

$1.48

20

Flat Washer 8 mm

250200130

$3.00

21

Forming Hex Screw M8 X 20

250000645

$6.36

22

Rubber Mount

270000852

$20.12

23

Mount Clamp

270000859

$19.37

24

Conical Washer

250200137

$4.57

25

Hex. Elastic Nut M8 Brass

232581200

$1.48

26

Shim 1.3 mm

270000865

$8.48

27

Rubber Stopper

270000863

$7.78

28

Mount Base

270000858

$19.37

29

Flat Washer 8 mm, Stainless

234082600

$2.27

30

Hex. Elastic Nut M8 Brass

232581200

$1.48

31

Flat Washer 8 mm

250200130

$3.00

32

Forming Hex Screw M8 X 20

250000645

$6.36

33

Rubber Mount

270000852

$20.12

34

Mount Clamp

270000859

$19.37

35

Conical Washer

250200137

$4.57

36

Hex. Elastic Nut M8 Brass

232581200

$1.48

37

Shim 1.3 mm

270000865

$8.48

38

Rubber Stopper

270000863

$7.78

39

Mount Base

270000858

$19.37

40

Flat Washer 8 mm, Stainless

234082600

$2.27

41

Hex. Elastic Nut M8 Brass

232581200

$1.48

42

Flat Washer 8 mm

250200130

$3.00

43

Forming Hex Screw M8 X 20

250000645

$6.36

44

Rubber Mount

270000852

$20.12

45

Mount Clamp

270000859

$19.37

46

Conical Washer

250200137

$4.57

47

Hex. Elastic Nut M8 Brass

232581200

$1.48

48

Shim 1.3 mm

270000865

$8.48

49

Rubber Stopper

270000863

$7.78

50a

Airbox Base

273000314

$66.39

50b

Airbox Cover

273000386

$67.88

50c

Flange Torx Screw K40 X 16

250000287

$2.00

51

Connector Hose

273000318

$52.21

52

Fitting

270001007

$10.30

53

Oetiker Clamp

293650011

$2.82

54

Floating Ball

293830080

$6.39

55

Black, Dart

293730011

$0.91

56

Battery Strap

515176044

$16.39

57

Fuel Tank Strap

293850087

$16.39

58

FORMED HOSE - Call your local BRP dealership

270000856

Unavailable

59

Tridon Gear Clamp

293650172

$3.07

60

Oetiker Clamp

293650011

$2.82

61

Tubing 16 Mm 1000Mm Long

219704408

$7.15

62

Tridon Clamp

293650023

$11.37

63

Hex. Flange Screw K50 X 20

241152060

$1.81

64

Tie Wrap 368 mm

293750008

$0.97

65

Tie Wrap 142 mm

293750002

$1.01

66

Tie-Rap 180 mm

414115200

$0.10

67

Tie-Rap 180 mm

414115200

$0.10
