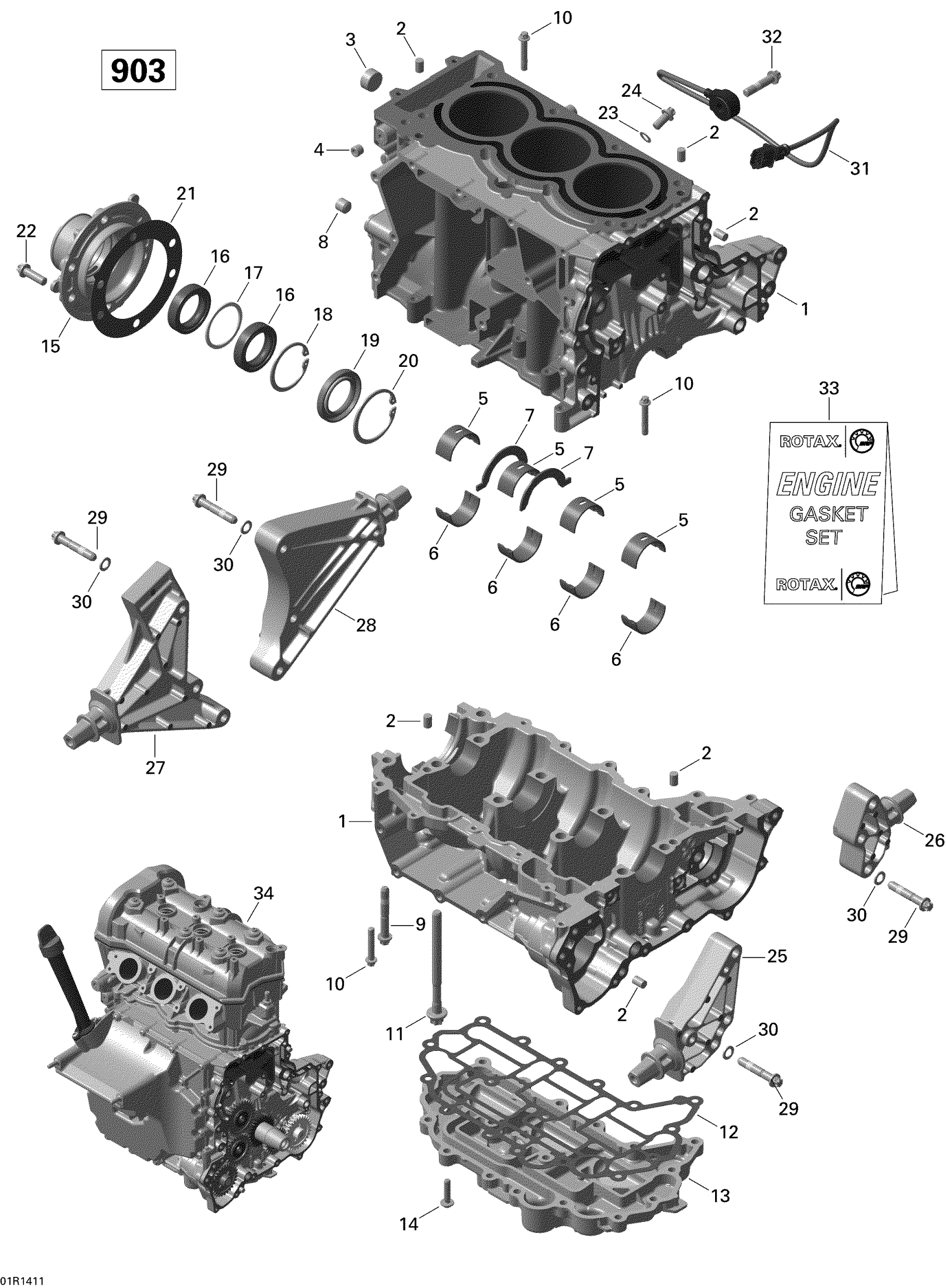

Sea-doo SPARK ACE 900 (2up), 2014 Crankcase _01R1411 Diagram

#

Description
Price

1

Engine Block | Includes 1 to 6

420894026

$2,031.49

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Cushion

420933180

$17.58

6

Cushion

420933185

$18.49

7

Ring Half

420933140

$11.60

8

Threaded Pin

420840508

$18.49

9

Torx Flange Screw M8 X 55

420641213

$7.41

10

Torx Flange Screw M6 X 35

420641258

$3.38

11

Torx Flange Screw M9 X 113

420940945

$13.70

12

Gasket

420431820

$15.89

13

Oil Sump

420911502

$112.49

14

Torx Flange Screw M6 X 25

420841548

$5.40

15

PTO Cover

420911681

$174.49

16

Oil Seal

420450165

$17.27

17

Ring Distance

420947500

$6.03

18

Retaining Ring

420945693

$17.62

19

Oil Seal | Included in gasket kit

420850220

$38.99

20

Retaining Ring

420945820

$6.99

21

PTO Cover Gasket

420450080

$7.65

22

Torx Flange Screw M8 X 25

420641248

$5.82

23

Sealing Ring

420950142

$5.09

24

Torx Flange Screw M8 X 16

420441653

$4.97

25

Front Engine Bracket, Intake

420911770

$58.99

26

Front Engine Bracket, Exhaust

420911775

$58.99

27

Rear Engine Bracket, Intake

420911780

$64.99

28

Rear Engine Bracket, Exhaust

420911785

$64.99

29

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940638

Unavailable

30

WASHER M8.4 - Call your local BRP dealership

420926512

Unavailable

31

Noise Sensor

420664031

$63.99

32

Torx Flange Screw M8 X 35

420641188

$7.41

33

Gasket Set

420686238

$518.99

34

Long Block 903

420090332

$4.00
