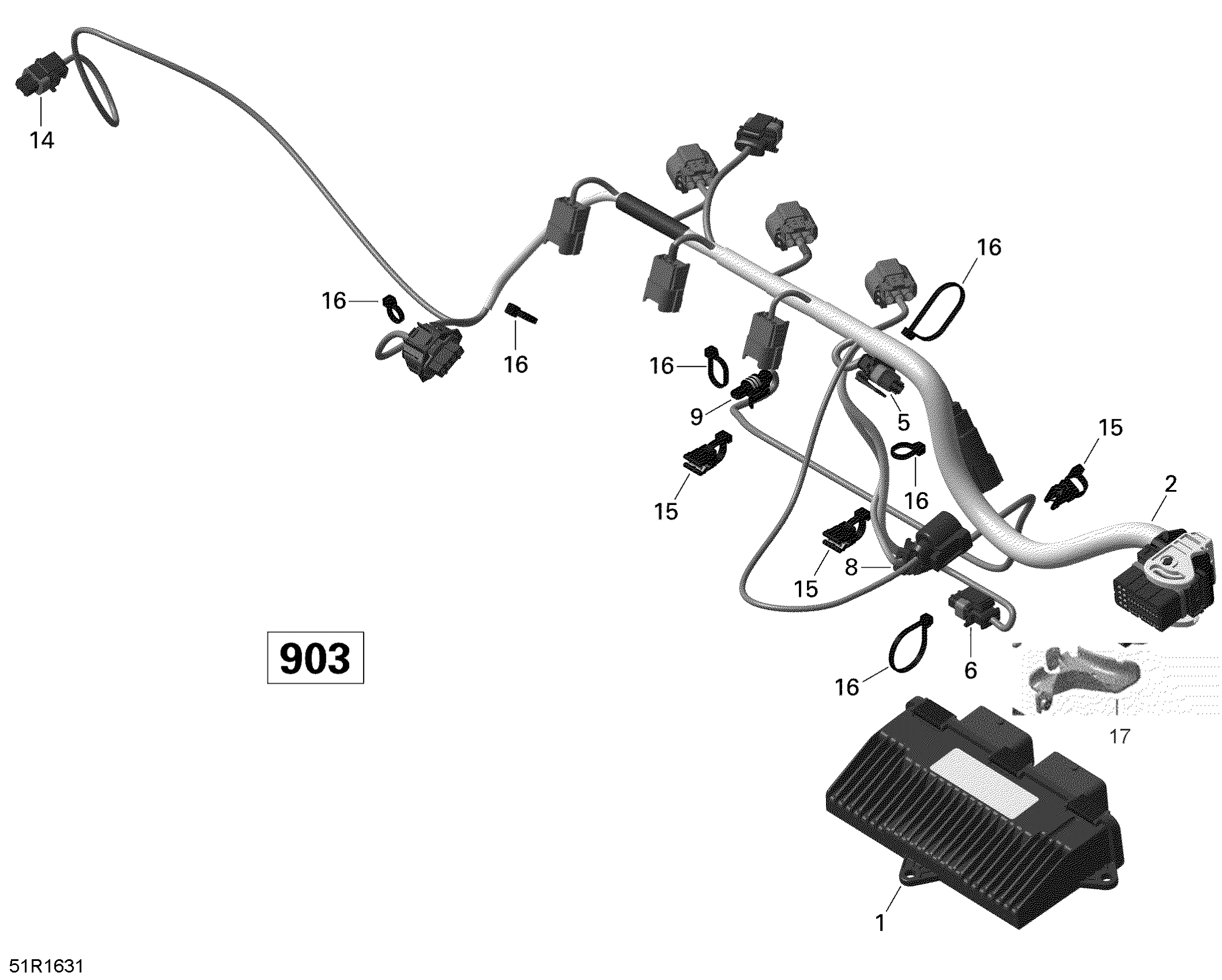

Sea-doo SPARK, 2016 Engine Harness and Electronic Module - 900 HO ACE Diagram

#

Description

Price

1

ECM Connector | Engine ACE 900 HO

420666263

$1,270.87

2

Engine Harness

420666257

$532.06

5

Male Housing, 2 Circuits

278001005

$17.88

6

Male Housing, 2 Circuits

278001005

$17.88

8

Male Housing, 2 Circuits

278001005

$17.88

9

Male Housing, 1 Circuit

278001012

$14.52

14

Male Housing, 2 Circuits

278001005

$17.88

15

Cable Clamp 150mm

420951650

$4.07

16

Tie Rap

420866714

$1.79

17

Harness Bracket This part replaces 420667820.

278003424

$11.22
