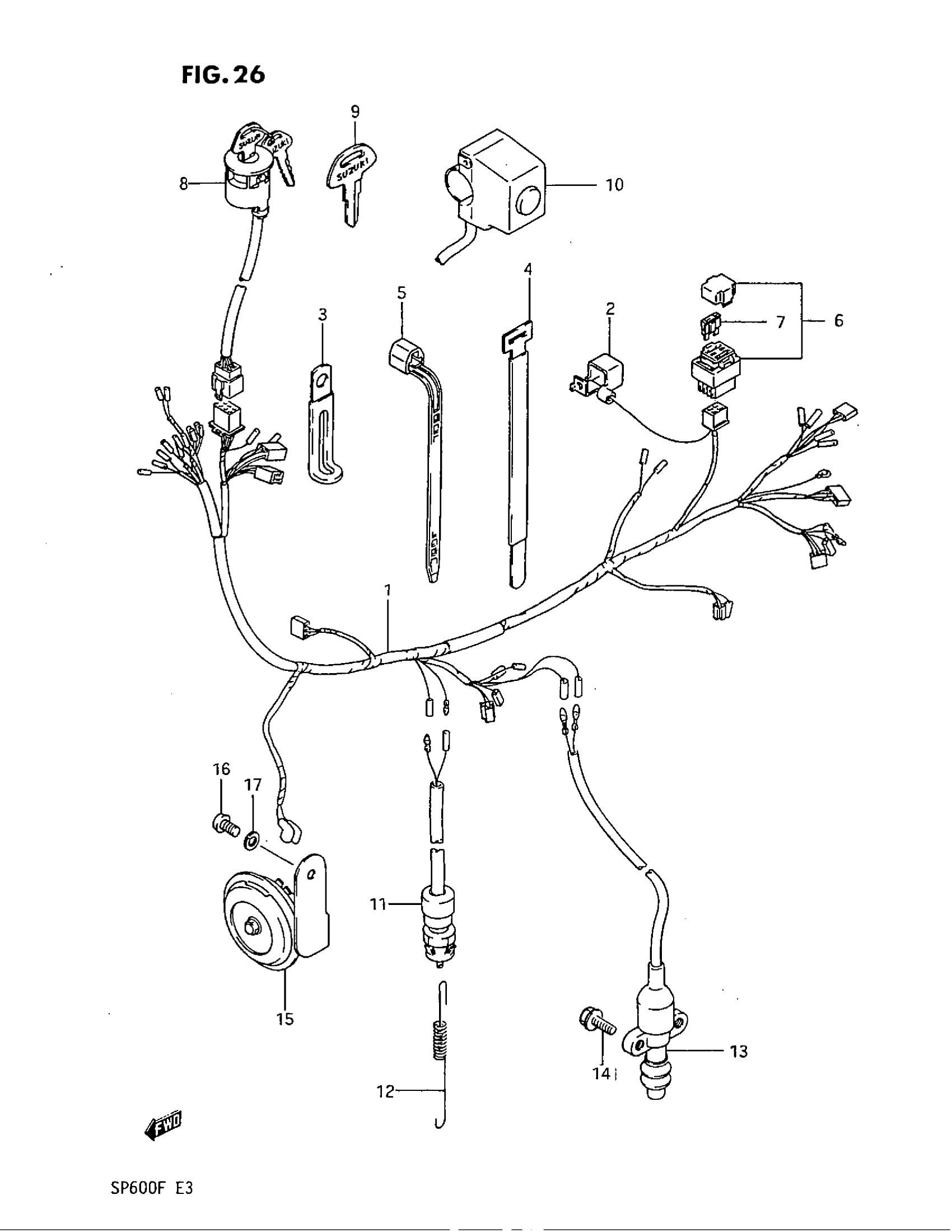

Suzuki SP600 (1985) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-14A00

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-14A00

Unavailable

3

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

3

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

3

CLAMP This part replaces 09404-08413.

09404-08420

$3.16

3

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.83

4

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

BOX ASSY, POWER SOURCE FUSE | Includes Item(s) 7 This part replaces 36740-04700.

36740-04701

$22.22

7

FUSE (15A)

09481-15101

$2.53

8

SWITCH ASSY,IGN This part replaces 37110-13A00.

37110-13A30

Unavailable

9

KEY, BLANK | OPT This part replaces 37145-02400.

37146-49300

$16.01

10

SWITCH ASSY, ENGINE STOP

37830-13A00

Unavailable

11

SWITCH ASSY, STOP LAMP This part replaces 37740-14A00.

37740-04A10

$23.32

12

SPRING This part replaces 09443-06058.

09443-06088

$4.86

13

SWITCH, SIDE STAND WARNING

37840-14A01

Unavailable

14

BOLT

01514-05105

Unavailable

15

HORN ASSY

38500-14A10

Unavailable

16

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

17

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84
