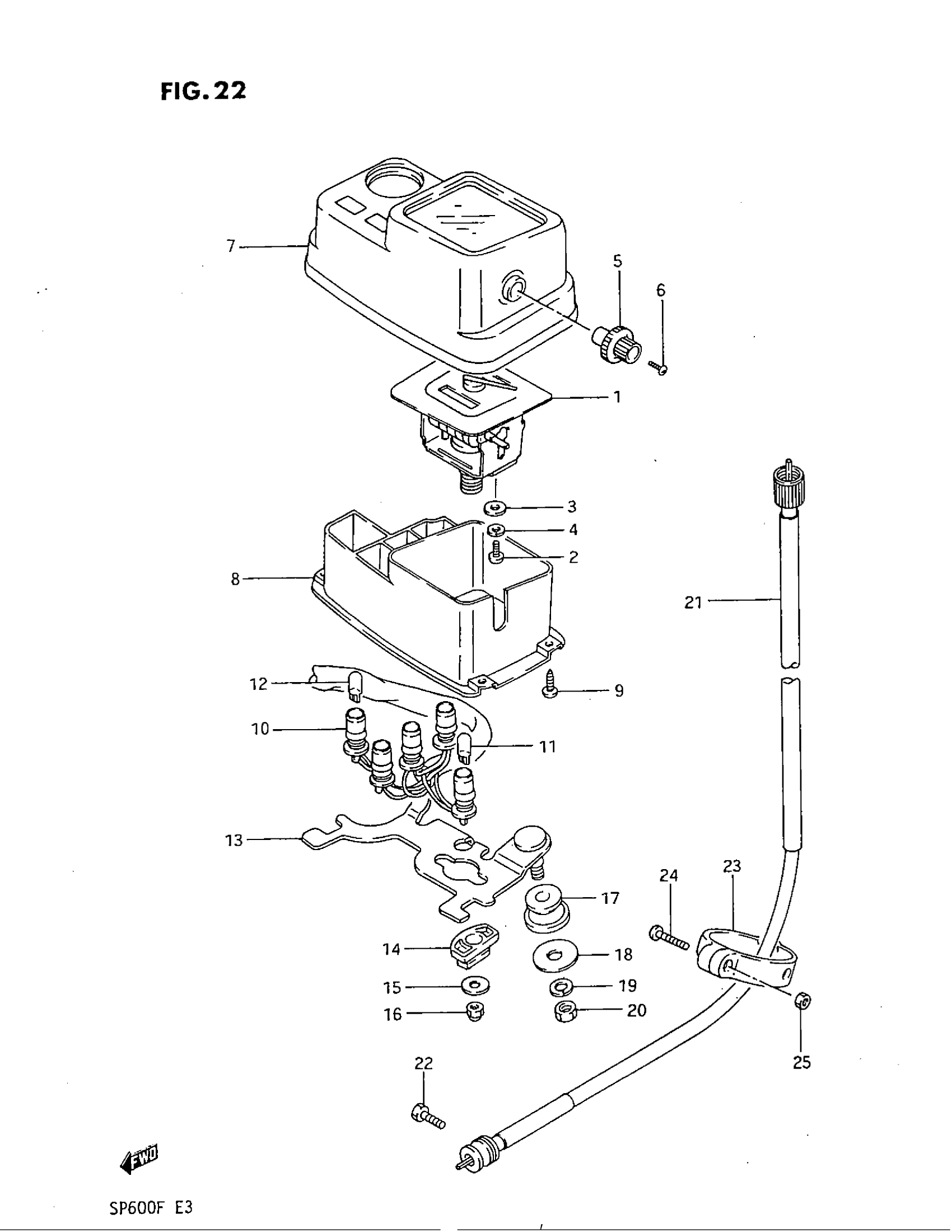

Suzuki SP600 (1985) SPEEDOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 34120-14A30.

34120-14A20

Unavailable

2

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

3

WASHER This part replaces 08322-21046.

08322-0104A

$1.91

4

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

5

KNOB, TRIP

34124-14A10

$9.17

6

SCREW (2X6) This part replaces 34125-14A10.

09139-02003

$1.65

7

HOOD, METER

34150-14A30

Unavailable

8

CASE, METER

34111-14A30

Unavailable

9

.SCREW This part replaces 34183-14A00.

34184-12B00

$2.45

10

SOCKET, METER

34173-14A30

Unavailable

11

BULB (12V,3.4W)

09471-12028

$1.99

12

BULB (12V,1.7W)

09471-12077

$3.55

13

BRACKET, METER

34950-14A10

Unavailable

14

CUSHION

34189-14A10

$5.50

15

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

16

NUT This part replaces 08313-11055.

08313-1005B

$2.70

17

CUSHION

34956-31001

$4.37

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

19

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

20

NUT This part replaces 08310-11085.

08310-0008A

$1.84

21

CABLE ASSY, SPE This part replaces 34910-14A00.

34910-20E01

$48.30

22

BOLT This part replaces 01107-05168.

01500-0516B

$2.15

23

CLAMP, METER CABLE

34938-14A01

Unavailable

24

SCREW This part replaces 02112-05208.

02112-05207

$1.97

25

NUT This part replaces 08310-11058.

08310-00057

$1.84
