1985 Suzuki SP600 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1985 Suzuki SP600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

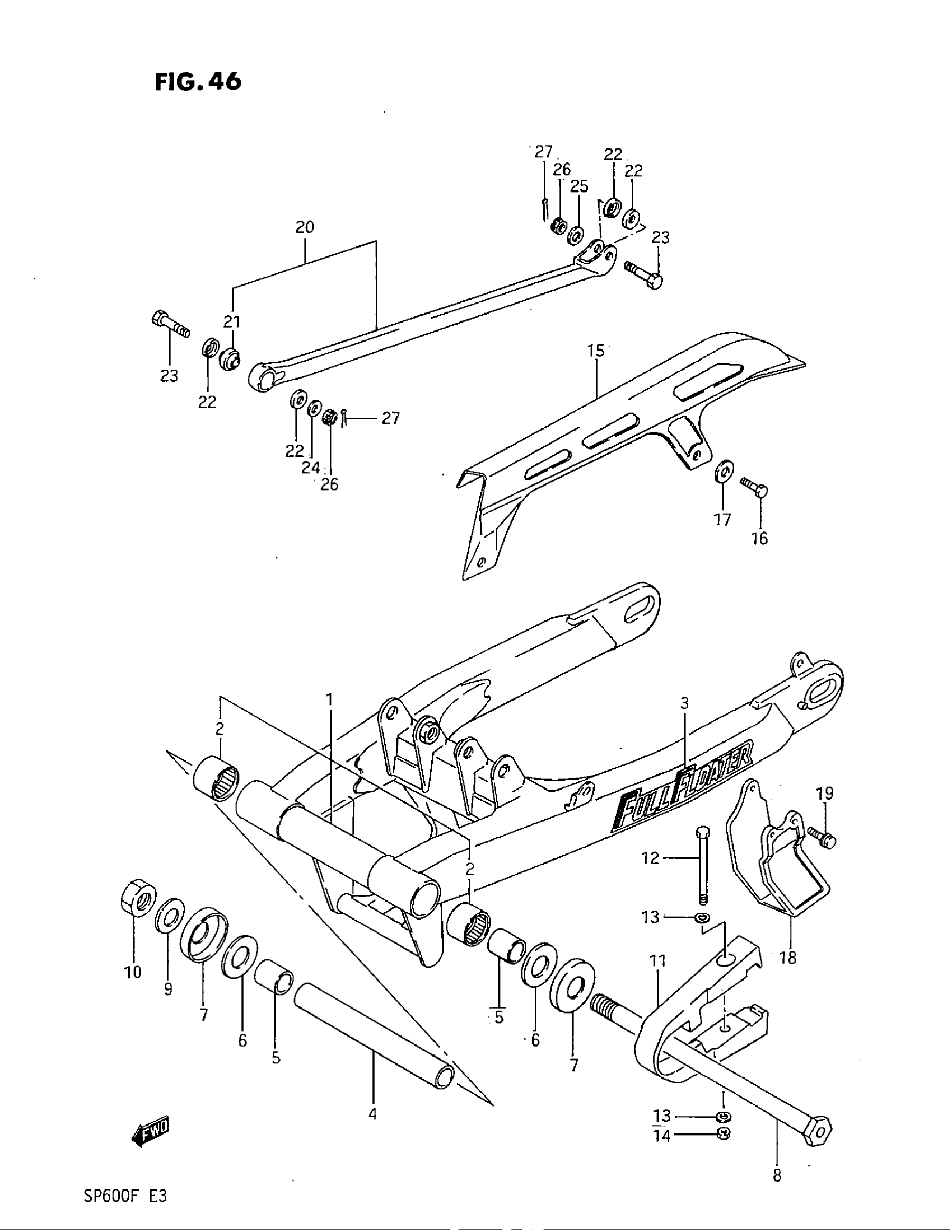

1985 Suzuki SP600 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM SET, REAR | SILVER; Includes Item(s) 2 - 3

61100-14840-13L

1
Out of stock

2

BEARING

09263-22022

2
Out of stock

3

EMBLEM

68381-05200-69L

2
Out of stock

4

SPACER, CENTER

61282-14A00

1
Out of stock

5

SPACER

61251-32410

2
Out of stock

6

WASHER

08211-16341

2
Out of stock

7

SEAL This part replaces 61262-14A00.

61262-14A01

2
Out of stock

8

SHAFT

61211-14A00

1
Out of stock

9

WASHER This part replaces 08322-11168.

08322-01167

1
Out of stock

10

NUT This part replaces 08319-21168.

08319-2116A

1
Out of stock

11

BUFFER

61273-14A00

1
Out of stock

12

BOLT

61275-14A00

1
Out of stock

13

WASHER

09160-05013

2
Out of stock

14

.NUT This part replaces 08319-21056.

08319-2105A

1
Out of stock

15

CHAIN CASE

61310-14A00

1
Out of stock

16

BOLT This part replaces 01107-06105.

01500-0610B

2
Out of stock

17

WASHER

09169-06026

2
Out of stock

18

GUIDE, CHAIN This part replaces 61341-14A02.

61341-14A03

1
Out of stock

19

BOLT This part replaces 01517-06128.

01550-06127

3
Out of stock

20

TORQUE LINK SET, REAR | SILVER; Includes Item(s) 21

64300-14860-13L

1
Out of stock

21

BEARING This part replaces 64352-40411.

64352-40401

1
Out of stock

22

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

4
Out of stock

23

BOLT

09101-08017

2
Out of stock

24

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

25

WASHER (8.5X18X2.0) This part replaces 09160-08042.

09160-08120

1
Out of stock

26

NUT This part replaces 08314-41088.

08314-4008B

2
Out of stock

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
