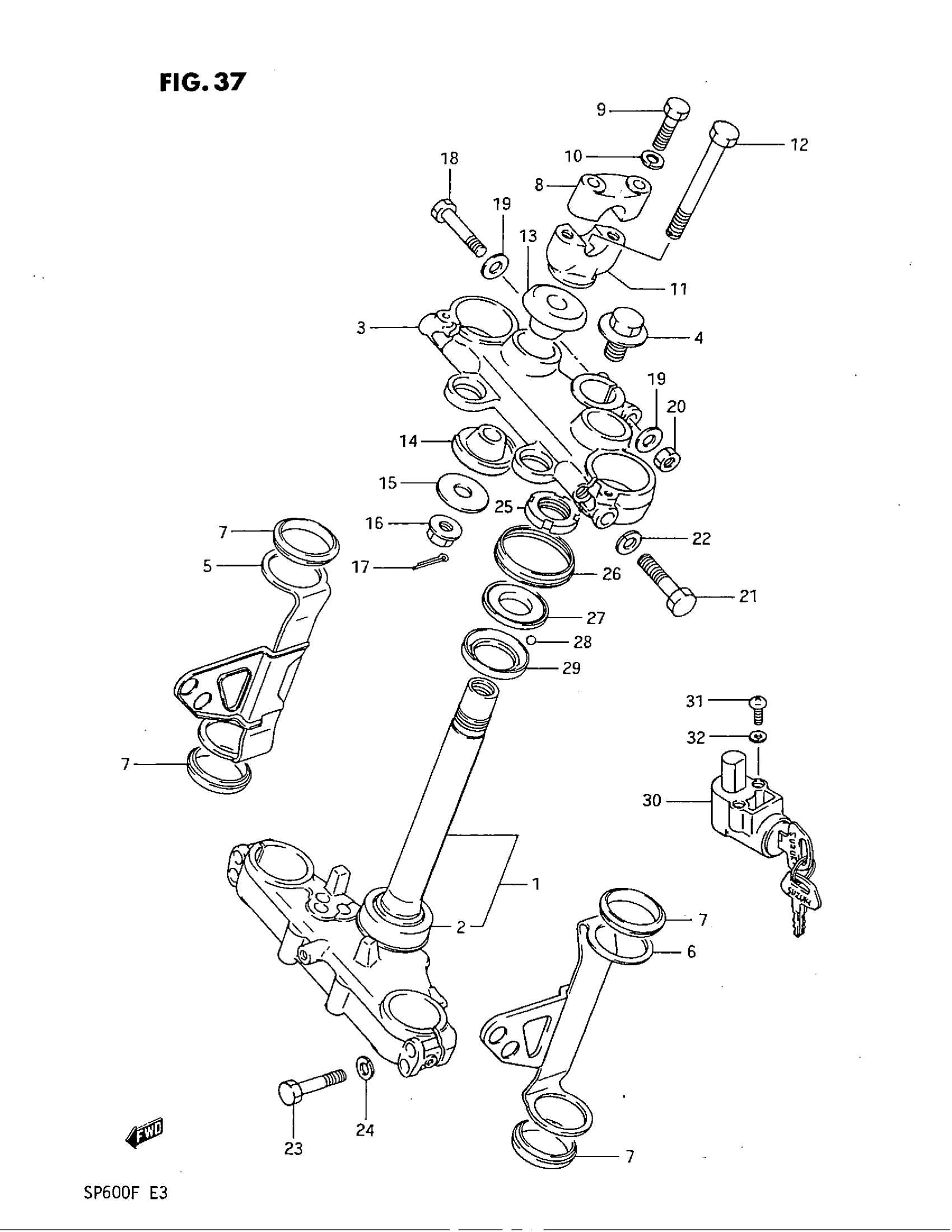

Suzuki SP600 (1985) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-14A10

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$52.22

3

STEM HEAD, STEERING

51311-14A00

Unavailable

4

BOLT

51353-14A00

Unavailable

5

BRACKET, HEADLAMP RH

51530-14A00

Unavailable

6

BRACKET, HEADLAMP LH

51540-14A00

Unavailable

7

GASKET

51553-14A00

Unavailable

8

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

$14.60

9

BOLT This part replaces 01107-08355.

01500-0835B

$2.80

10

LOCK WASHER This part replaces 08321-31085.

08321-0108A

$1.83

11

HOLDER, HANDLE LOWER (BLACK)

56221-14330-291

$60.18

12

BOLT This part replaces 51321-14200.

56321-28C00

$7.80

13

DAMPER, UPPER

56241-14A00

$31.68

14

DAMPER, LOWER

56242-14200

$33.97

15

WASHER This part replaces 51356-40400.

09160-10035

$1.80

16

NUT This part replaces 08319-31108.

08319-31107

$2.73

17

PIN This part replaces 04111-20308.

04111-2030A

$1.63

18

BOLT This part replaces 01107-08505.

01500-0850B

$4.10

19

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

20

NUT This part replaces 08310-12085.

08310-0008A

$1.86

21

BOLT This part replaces 01107-10455.

01500-1045A

$2.80

22

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.86

23

BOLT This part replaces 01107-08455.

01500-08453

$2.53

24

LOCK WASHER This part replaces 08321-31085.

08321-0108A

$1.83

25

NUT, STEERING STEM

51631-40200

Unavailable

26

DUST SEAL

51643-40200

$10.57

27

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

28

BALL

06111-08003

$1.30

29

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

30

LOCK ASSY, STEERING

51900-30831

Unavailable

31

SCREW This part replaces 02112-05128.

02112-05127

$1.97

32

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83
