1985 Suzuki SP600 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1985 Suzuki SP600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

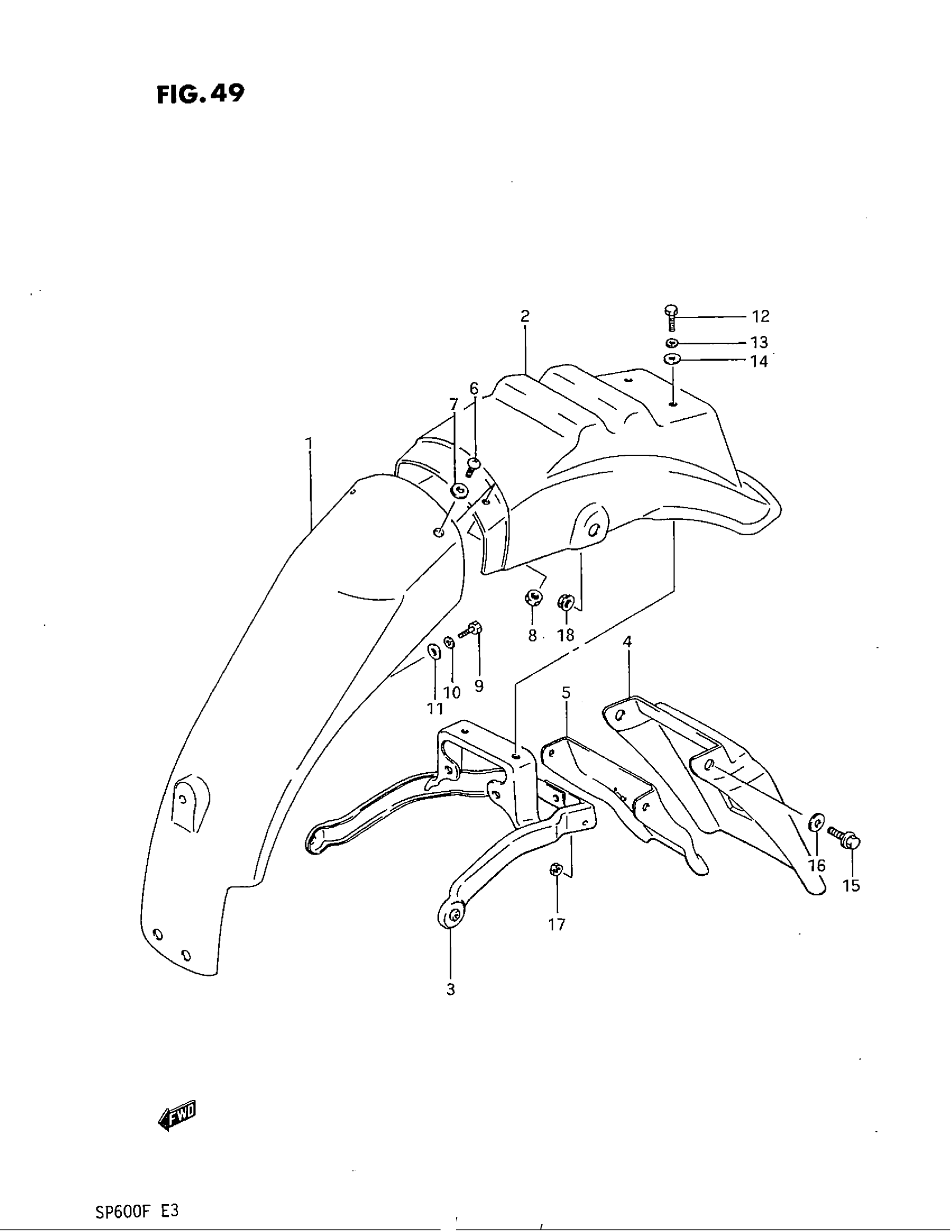

1985 Suzuki SP600 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, FRONT

63112-14A00

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 63113-14A00-14C.

63113-14A20-13L

1
Out of stock

3

REINFORCEMENT

63120-14A00

1
Out of stock

4

EXTENSION

63311-14A00

1
Out of stock

5

REINFORCEMENT

63131-14A00

1
Out of stock

6

.SCREW This part replaces 02142-05125.

02142-0512A

2
Out of stock

7

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

2
Out of stock

8

.NUT This part replaces 08319-21055.

08319-2105A

2
Out of stock

9

BOLT This part replaces 01107-06165.

01500-0616A

1
Out of stock

10

1

$1.97

In stock

11

WASHER

09169-06026

1
Out of stock

12

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

2
Out of stock

13

2

$1.97

In stock

14

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock

15

BOLT This part replaces 01517-06205.

01550-0620A

3
Out of stock

16

WASHER

09169-06026

3
Out of stock

17

NUT This part replaces 08319-31065.

08319-3106A

3
Out of stock

18

NUT This part replaces 08319-31085.

08319-3108A

2
Out of stock
