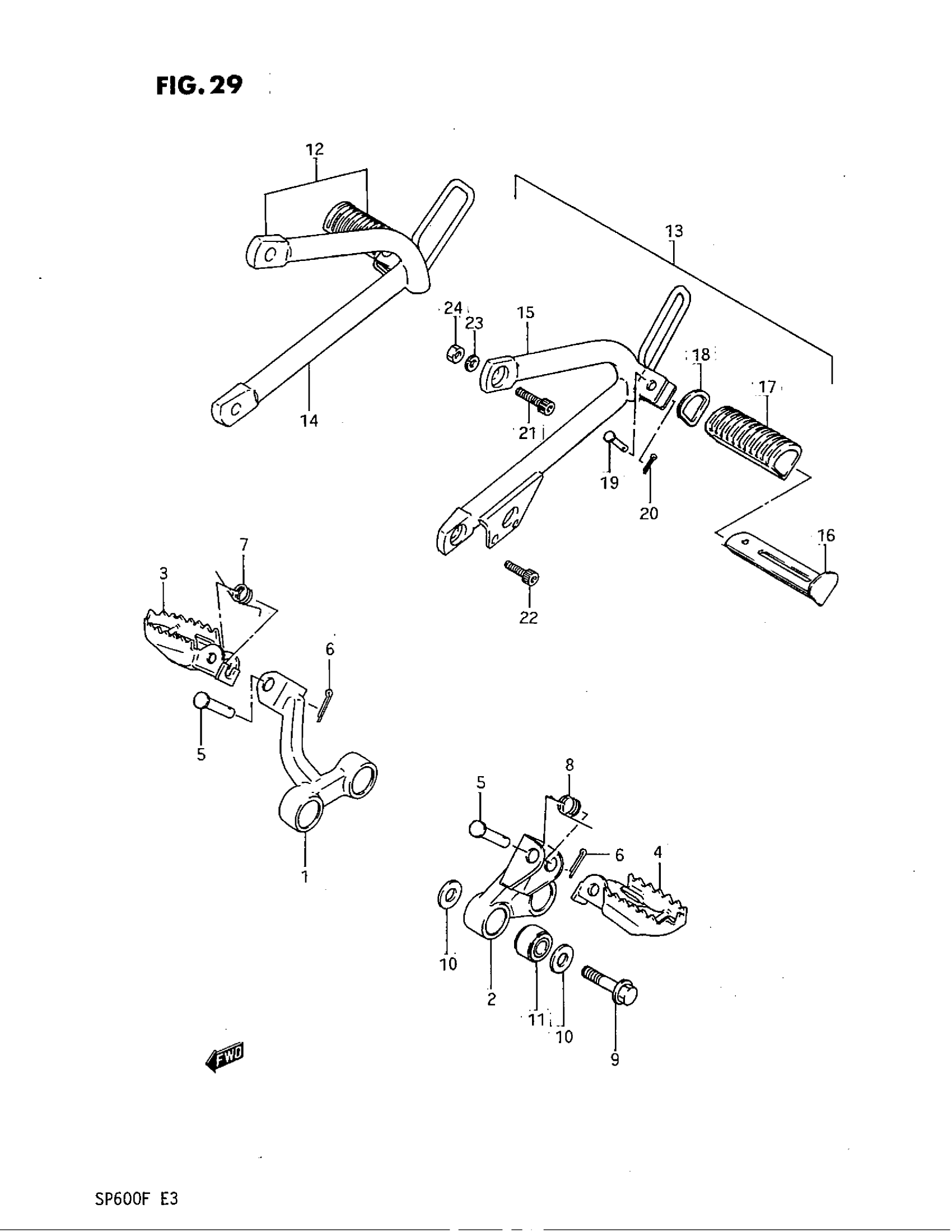

Suzuki SP600 (1985) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43510-14A00-019

Unavailable

2

BAR, FOOTREST LH (BLACK)

43520-14A00-019

Unavailable

3

FOOTREST,FRONT, This part replaces 43550-14A00-019.

43550-14D10

Unavailable

4

FOOTREST, FRONT LH This part replaces 43560-14A00-019.

43560-14D10

Unavailable

5

PIN

09200-10008

$2.64

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

7

SPRING This part replaces 09448-15008.

09448-15008-XC0

Unavailable

8

SPRING, LH

09448-15004

$2.33

9

BOLT

09103-10045

$5.05

10

WASHER This part replaces 09160-10059.

09160-10124

$2.97

11

BUSH

09319-10033

$6.25

12

NO DESCRIPTION AVAILABLE | BLACK This part replaces 43600-14A00-019.

43600-14A10-019

Unavailable

13

FOOTREST ASSY, PILLION LH | BLACK; Includes Item(s) 14 - 20

43700-14A10-019

Unavailable

14

HOLDER, RH (BLACK)

43650-14A00-019

Unavailable

15

HOLDER, LH (BLACK)

43750-14A10-019

Unavailable

16

BAR, RH This part replaces 43610-14A00.

43610-14A10

Unavailable

16

BAR, LH

43620-14A00

Unavailable

17

RUBBER

43612-14A00

Unavailable

18

WASHER This part replaces 43631-14A00.

43631-14A10

Unavailable

19

PIN

09200-06010

$1.87

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

21

BOLT This part replaces 07110-08255.

07130-0825B

$3.04

22

BOLT This part replaces 07110-08205.

07130-0820B

$3.19

23

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.83

24

NUT This part replaces 08310-11085.

08310-0008A

$1.86
