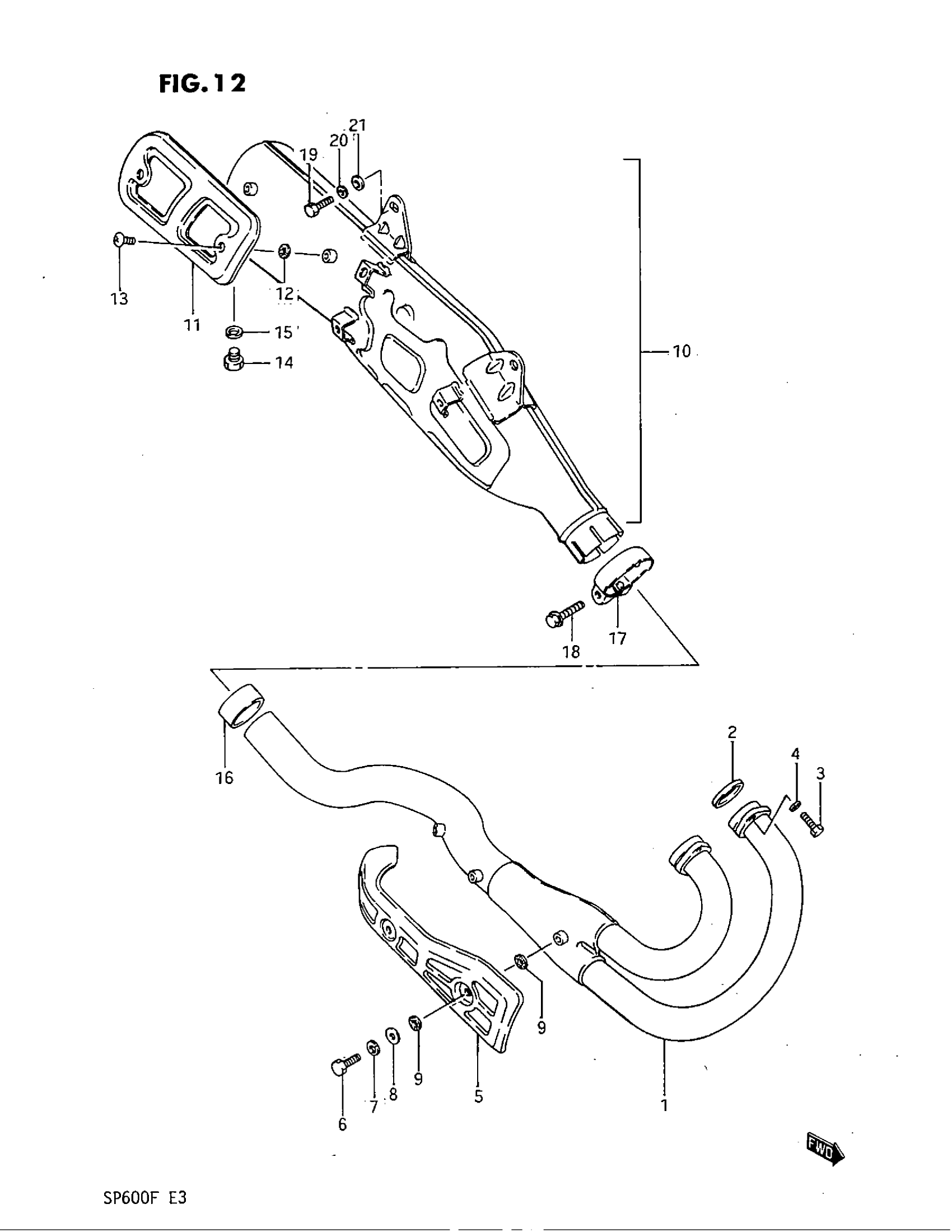

Suzuki SP600 (1985) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-14A00-H01

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-35600.

14181-23E00

$10.11

3

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

4

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

5

COVER

14180-14A00

Unavailable

6

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

7

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

GASKET (NA) This part replaces 09168-06021.

09168-06121

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 15 This part replaces 14301-14A12-H01.

14301-14A13-H01

Unavailable

11

COVER, MUFFLER This part replaces 14781-14A00.

14781-14A10

Unavailable

12

GASKET (NA) This part replaces 14181-14A00.

09168-06121

Unavailable

13

SCREW

02142-06108

$2.45

14

PLUG, DRAIN

09247-12104

$2.73

15

GASKET

09168-12002

$1.59

16

CONNECTOR, MUFFLER This part replaces 14771-14A01.

14771-44B00

$24.43

17

CLAMP, MUFFLER CONNECTOR This part replaces 14459-14A00.

14459-14A10

$17.94

18

BOLT This part replaces 01517-08358.

01550-08357

$3.49

19

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13
