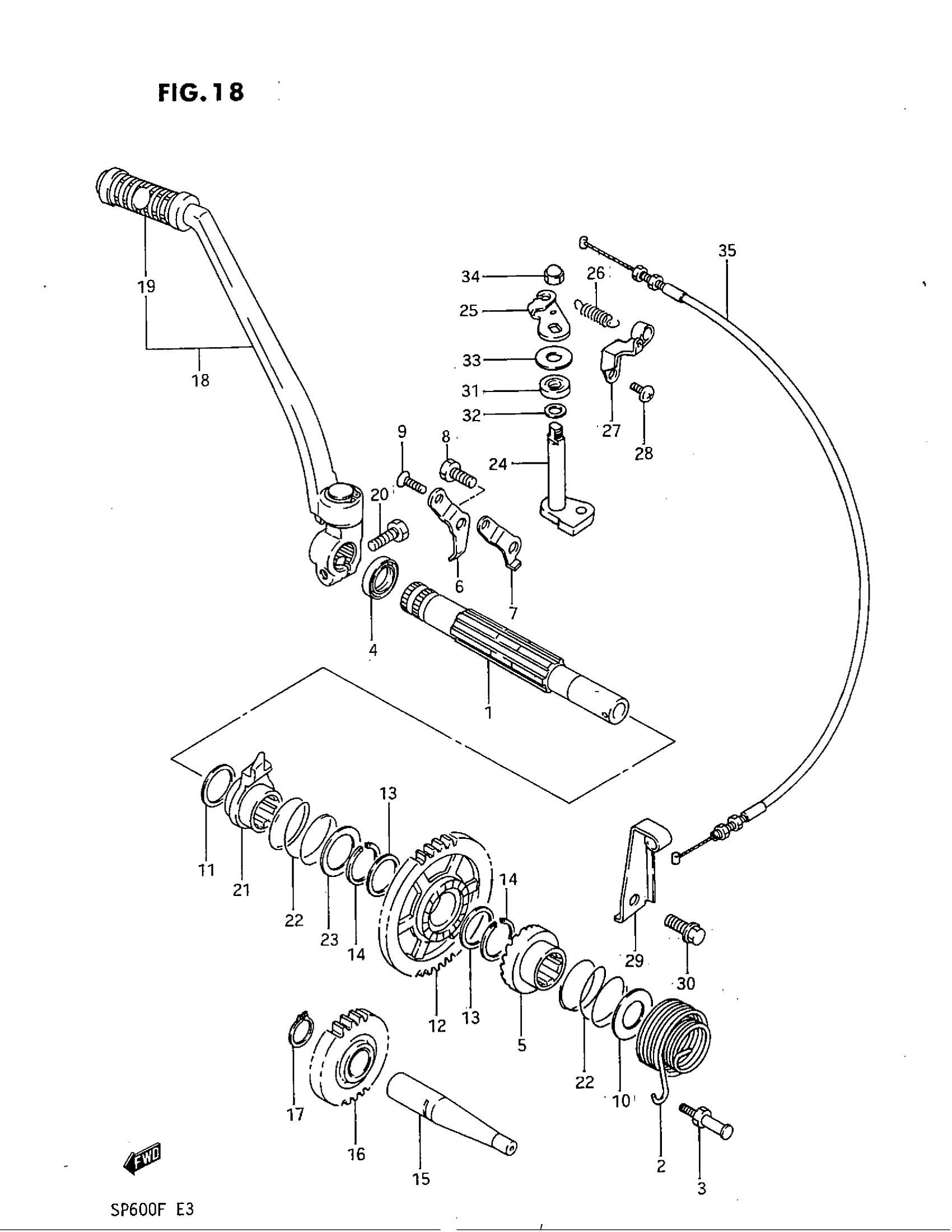

Suzuki SP600 (1985) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | ~E.NO.102820 This part replaces 26211-14A00.

26211-14A02

Unavailable

1

SHAFT, KICK STARTER | E.NO.102821~ This part replaces 26211-14A01.

26211-14A02

Unavailable

2

SPRING

09448-41003

$9.05

3

BOLT

26237-14500

Unavailable

4

OIL SEAL

09283-20044

$6.02

5

STARTER, KICK This part replaces 26231-38201.

26231-38202

$34.45

6

LIFTER

26232-14A00

Unavailable

7

STOPPER

26233-14A01

Unavailable

8

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

9

SCREW This part replaces 02122-06166.

02122-0616A

$1.49

10

WASHER

08211-17341

$2.50

11

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

12

GEAR, DRIVE (NT:40)

26240-14A00

Unavailable

13

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

14

CIRCLIP

09380-22006

$3.10

15

SHAFT, IDLE This part replaces 26223-14A00.

26223-14A01

Unavailable

16

GEAR, STARTER IDLE (NT:24)

26260-37400

Unavailable

17

CIRCLIP

09380-17001

$1.98

18

LEVER ASSY, KICK STARTER | Includes Item(s) 19 This part replaces 26300-14A00.

26300-14A03

Unavailable

19

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

20

BOLT

09100-08194

Unavailable

21

CAM, DECOMPRESSION

26811-14A04

Unavailable

22

SPRING

09440-32006

$2.38

23

PLATE

08211-22341

$3.85

24

SHAFT, DECOMP CAM FOLLOWER

26820-14A05

Unavailable

25

ARM

26824-14A03

Unavailable

26

SPRING

09443-06061

Unavailable

27

HOLDER, NO.1

26841-14A01

Unavailable

28

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

29

HOLDER, NO.2 | ~E.NO.106412 This part replaces 26842-14A01.

26842-14A02

Unavailable

29

HOLDER, NO.2 | E.NO.106413~

26842-14A02

Unavailable

30

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

31

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.98

32

WASHER

08211-10151

Unavailable

33

WASHER

09160-10020

$2.05

34

NUT This part replaces 08313-11085.

08313-1008B

$2.80

35

CABLE | ~E.NO.108377 This part replaces 26830-14A04.

26830-14A05

Unavailable

35

CABLE | E.NO.108378~

26830-14A05

Unavailable

36

CLAMP | E.NO.108378~ This part replaces 09404-06401.

09404-06039

$1.74
