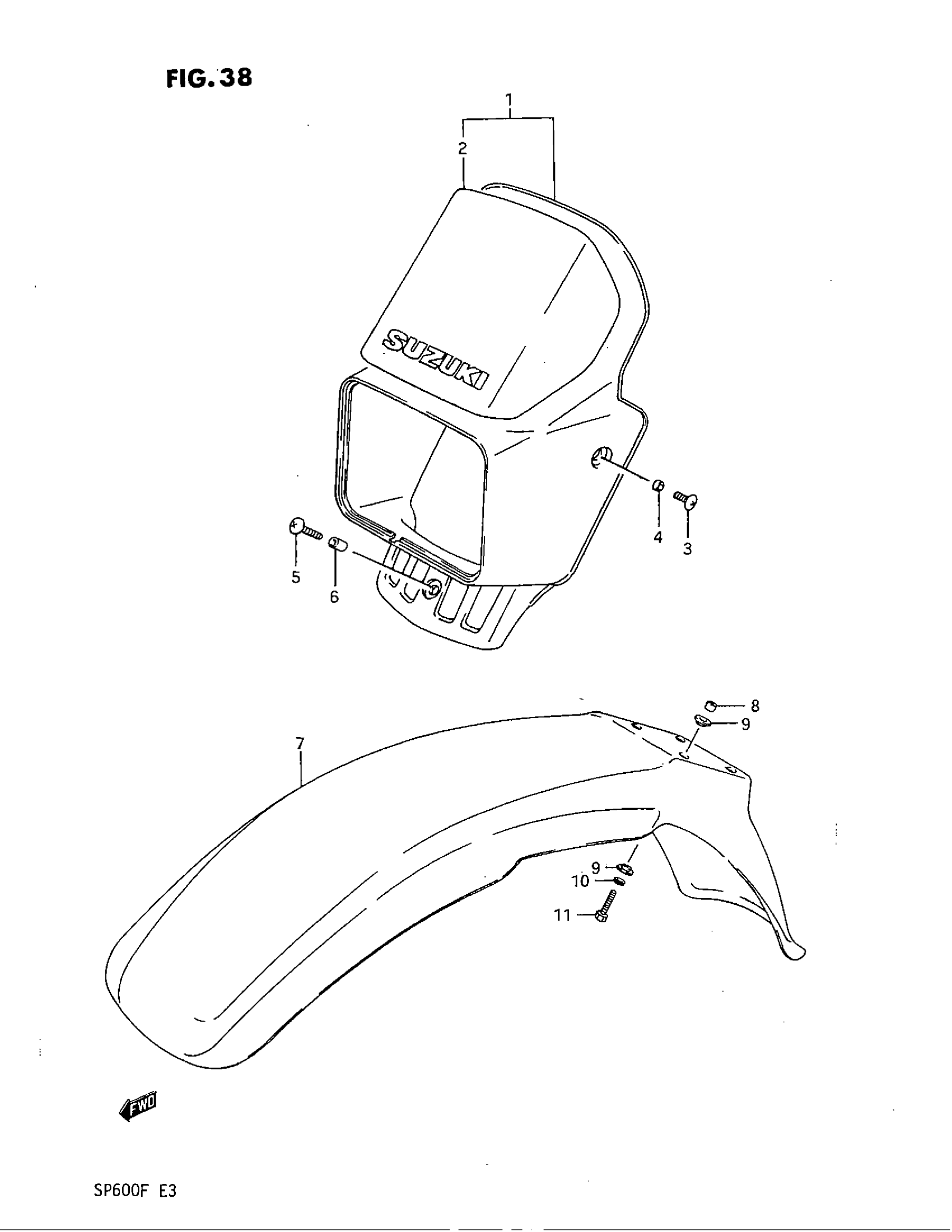

Suzuki SP600 (1985) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

COVER, HEADLAMP (RED) | Includes Item(s) 2

51810-14A00-07X

Unavailable

2

TAPE SET

68720-14A00-73K

Unavailable

3

SCREW This part replaces 02142-06125.

02142-0612A

$1.41

4

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.19

5

SCREW This part replaces 02142-06205.

02142-0620A

$1.43

6

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.65

7

NO DESCRIPTION AVAILABLE This part replaces 53111-14A00-14C.

53111-44A00-13L

Unavailable

8

SPACER, FENDER UPPER

09180-06038

$1.86

9

WASHER (6.3X16X1) This part replaces 09180-06048.

09169-06053

$1.15

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

11

BOLT This part replaces 01107-06258.

01500-06257

$2.01
