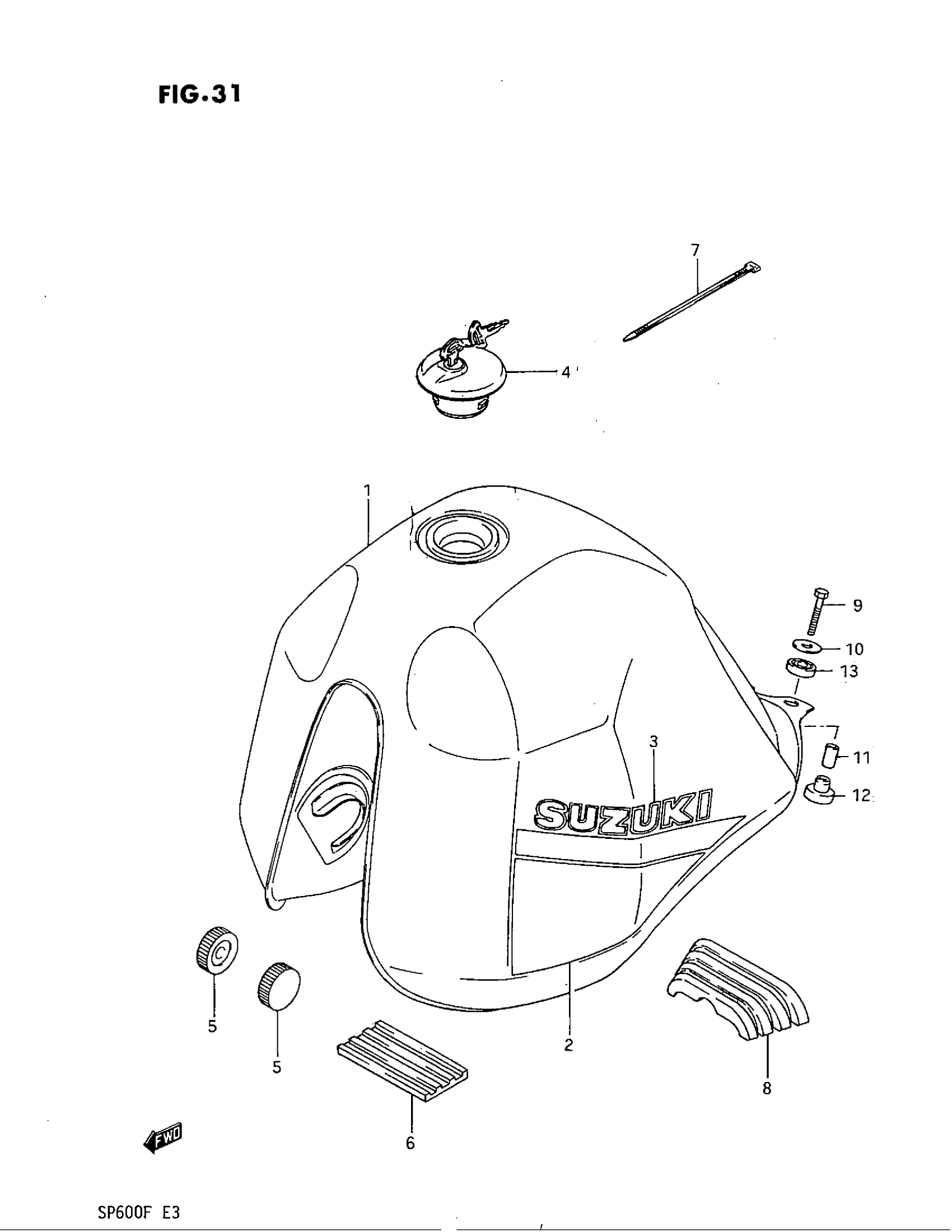

Suzuki SP600 (1985) FUEL TANK (FOR CALIFORNIA) Diagram

#

Description
Price

1

TANK ASSY, FUEL (RED) | Includes Item(s) 2 - 3

44100-14A20-14C

Unavailable

2

TAPE SET, FUEL TANK

68110-14A10-7CL

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 68111-41110-064.

68111-32410-064

Unavailable

4

CAP, FUEL This part replaces 44200-14A10-KEY.

44200-14830

Unavailable

5

CUSHION, FRONT

09329-10016

$3.10

6

CUSHION, UPPER

44541-14500

$8.28

7

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

8

CUSHION, REAR NO.1

44542-14A00

$15.42

9

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

10

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

11

SPACER This part replaces 09180-06072.

09180-06271

$2.35

12

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

13

CUSHION, REAR NO.2 LOWER

09320-14013

$2.11
