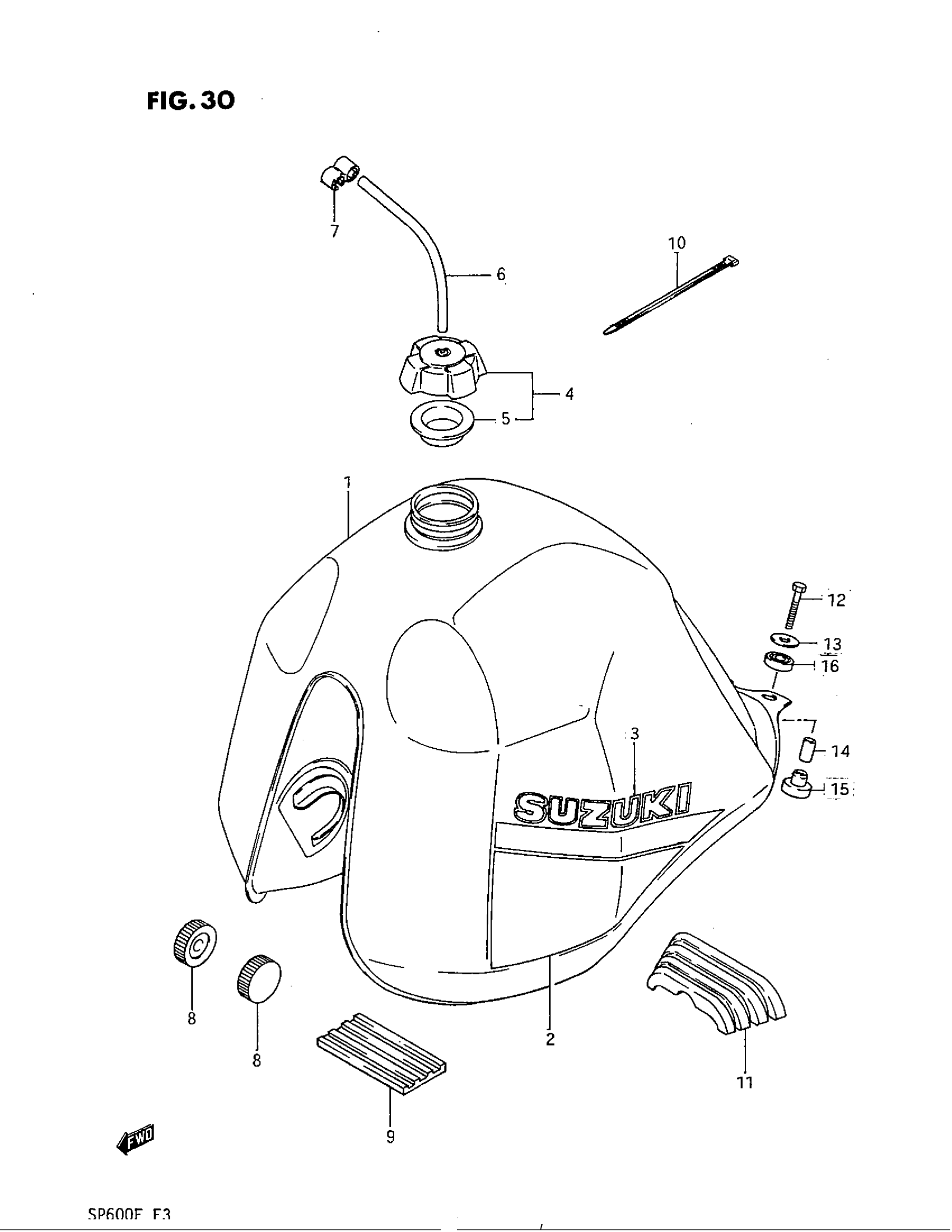

Suzuki SP600 (1985) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-14A30-14C.

44110-14A10-YD8

Unavailable

2

TAPE SET, FUEL TANK

68110-14A10-7CL

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 68111-41110-064.

68111-32410-064

Unavailable

4

CAP SET, FUEL TANK | Includes Item(s) 5

44200-01890

Unavailable

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-32101

$3.65

8

CUSHION, FRONT

09329-10016

$3.10

9

CUSHION, UPPER

44541-14500

$8.28

10

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

11

CUSHION, REAR NO.1

44542-14A00

$15.42

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

CUSHION, REAR NO.2 LOWER

09320-14013

$2.11
