Partiron

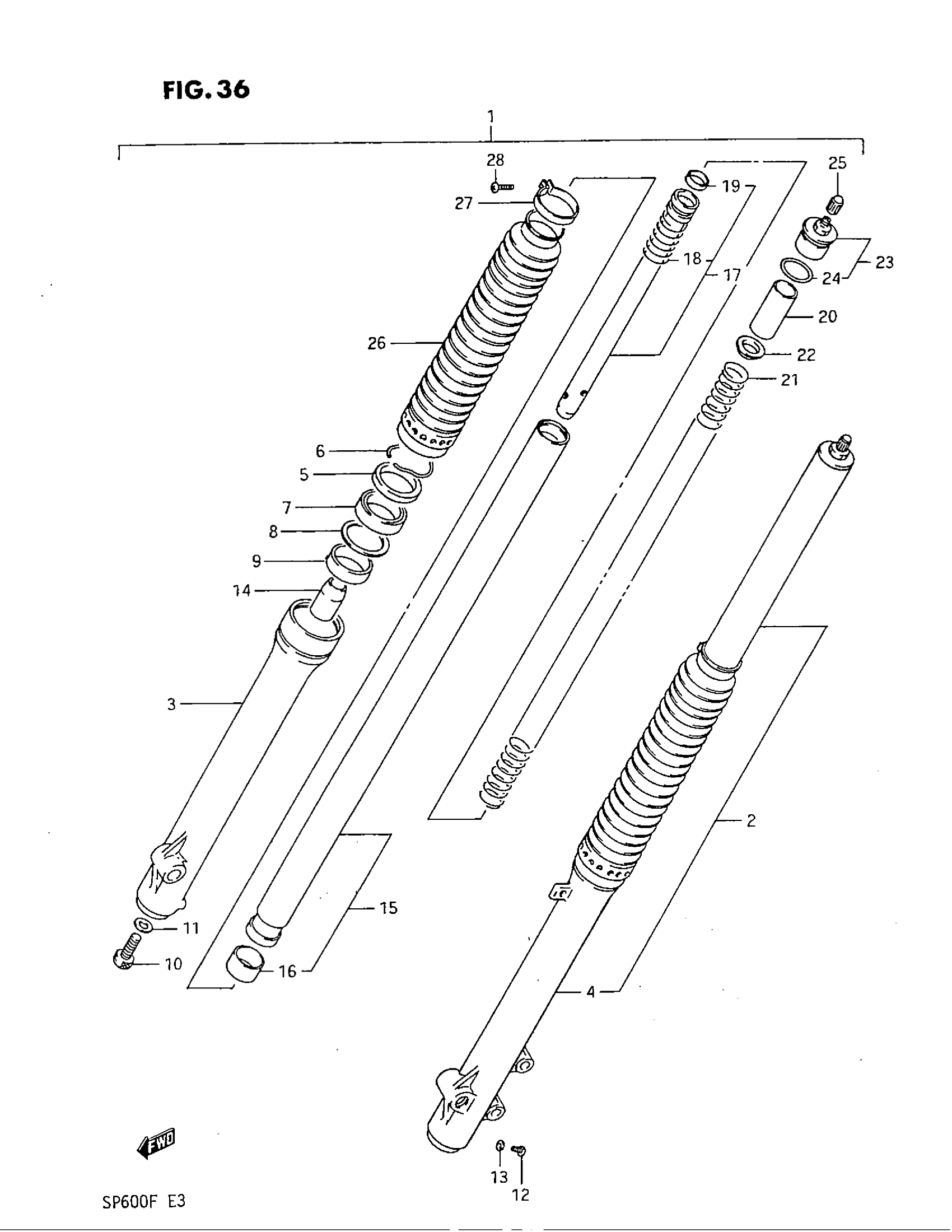

Suzuki SP600 (1985) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-14A00

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 25

51104-14A00

Unavailable

3

OUTER TUBE RH

51130-14A00

Unavailable

4

OUTER TUBE LH

51140-14A00

Unavailable

5

DUST SEAL

51173-14A00

Unavailable

6

RING, STOPPER

51156-49440

$5.05

7

OIL SEAL

51153-14A00

Unavailable

8

WASHER

51158-07A00

Unavailable

9

SLIDE METAL

51167-07A00

Unavailable

10

BOLT

51147-40300

$5.38

11

GASKET

51148-40300

$2.03

12

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

13

GASKET

51183-03010

$2.07

14

PIECE, OIL LOCK

51195-13A00

Unavailable

15

INNER TUBE

51110-14A00

Unavailable

16

PISTON

51121-07A00

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 51146-14A00.

51146-44B00

Unavailable

18

SPRING

51177-14A00

Unavailable

19

RING

51196-14A00

Unavailable

20

SPACER

51176-14A00

Unavailable

21

SPRING

51171-14A00

Unavailable

22

GUIDE, SPRING

51172-14A00

Unavailable

23

CAP

51351-14A00

Unavailable

24

O RING

51117-14A00

Unavailable

25

CAP

51294-20400

$7.37

26

BOOT This part replaces 51571-14A00-19F.

51571-14A00-34S

Unavailable

27

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

28

SCREW This part replaces 02112-04108.

02112-04107

$1.55
